Brand: Generic ( Made in India )

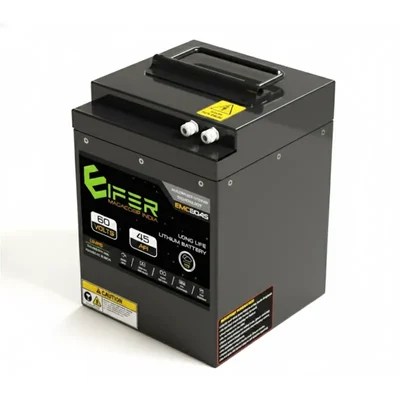

Eiferzen Energy 60.8V 45Ah 1.8kWh Li-Ion Battery for EV Mobility EMC 6045
SKU: TI-EE-62545
Delivery By: Jan 26 - Jan 28
MRP : ₹44000 ₹35897
18% OFF!
Delivery By: Jan 26 - Jan 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹35897 (Including GST)
MRP : ₹44000
18% OFF!
Get Extra ₹538 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Powerful 60.8V 45Ah Li-Ion battery pack with 1.8kWh energy, IP65/IP67 protection, and full BMS safeguards for EV mobility. Features CC-CV charging, 0.8C continuous discharge, optional Bluetooth/CAN, and rugged design for electric vehicles.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Nominal Rated Voltage: 60.8V DC
- Rated Capacity: 45Ah
- Energy Rated: 1.8kWh
- Weight: 25Kg
- Battery Operating Voltage Range: 64.6V ~ 56V ± 0.5V
- Recommended Charging Voltage (CV): 65.55V ± 0.5V
- Charging Mode: CC-CV
- Charge Current: 0.3C
- Continuous Discharge Current: 0.8C
- Peak Discharge Current: 2C (for 10 sec)
- Low Voltage Disconnection: 50.35V ± 1.0V
- High Voltage Disconnection: 69.35V ± 1.0V
- Over-Charge Protection: Yes
- Over-Discharge Protection: Yes
- Over-Temperature Protection: Yes (high-temp disconnection at 60°C)
- Over-Current Protection: Yes
- Short-Circuit Protection: Yes
- Audio/Visual Alarm: Yes (optional)
- Balancing Mode: Active/Passive (optional)
- Paralleling Module: Optional
- IP Rating: IP65 (IP67 optional)
- Operating Temperature: Charging: 0°C ~ +55°C; Discharging: -20°C ~ +60°C
- Storage Temperature: 0°C ~ +35°C
- Module Dimensions (±2mm): 225 x 160 x 260 mm (L x B x H)
- Communication: Bluetooth, CAN, UART/RS485, IoT (all optional)
Description
Designed for EV mobility applications, the Eiferzen Energy EMC 6045 is a robust 225x160x260mm Li-Ion module that provides dependable 1.8kWh of energy. It guarantees safety under harsh circumstances with its advanced BMS protections, which include over-charge, over-discharge, over-current, short-circuit, and temperature management up to 60°C disconnection. With broad operating temperatures (-20°C to +60°C discharge), IP65/IP67 (optional) ingress protection, and various communication options like Bluetooth, CAN, UART/RS485, or IoT, this battery enables optional active/passive balancing and paralleling for adaptable EV installations. Ideal for industrial mobility requiring high capacity and performance, e-scooters, and two-wheelers.
Features
:- Complete BMS suite: low/high voltage disconnection, optional audio/visual alarms, over-charge, over-discharge, over-current, short-circuit, and over-temperature protections with a high-temp cutoff at 60°C.
- For exceptional protection to dust and water, use the IP65 grade standard (IP67 optional).
- Extended temperature tolerance: -20°C to +60°C for discharge and 0°C to +55°C for charging.
- For smooth integration and monitoring, there are several connection possibilities, including Bluetooth, CAN, UART/RS485, and IoT (all optional).
- Support for paralleling modules and optional active/passive balancing for systems that can be expanded.
- Effective CC-CV charging at 0.3C, continuous discharge at 0.8C, and a 2C peak for ten seconds.
- Accurate voltage control: operational 56-64.6V, nominal 60.8V.
- Optimal storage: 0°C to +35°C to extend battery life.
Applications
:- Electric scooters and two-wheelers.
- personal mobility gadgets and e-bikes.
- EV trolleys, light industrial vehicles, and carts.
- Warehouse mobility solutions and forklifts.
- Transportation driven by renewable energy and custom EV construction.
Usage
:- Integrate EV systems with real-time BMS data via optional CAN/RS485.
- In the ambient temperature range of 0 to 55°C, charge in CC-CV mode at 0.3C to 65.55V.
- BMS activates safeguards such as a 50.35V low-voltage cutoff; monitor working range: 56-64.6V.
- For brief bursts (up to 10 seconds), use 2C peak discharge.
- Use Bluetooth and IoT for health checks and diagnostics; store between 0 and 35°C.
