Brand: Generic ( Made in India )

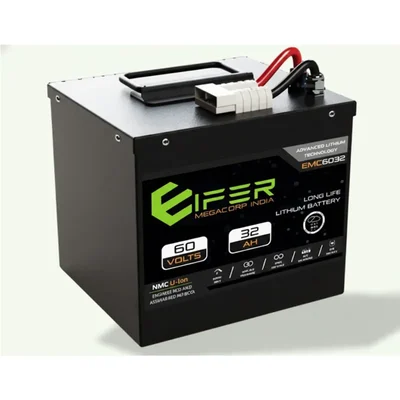

Eiferzen Energy 60V 32Ah 1.92kWh Li-Ion Battery EMC 6032
SKU: TI-EE-62532
Delivery By: Jan 26 - Jan 28
MRP : ₹31000 ₹25688
17% OFF!
Delivery By: Jan 26 - Jan 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹25688 (Including GST)
MRP : ₹31000
17% OFF!
Get Extra ₹385 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
High-voltage 60V Li-Ion battery for EV mobility, 32Ah capacity, 1.92kWh energy, IP65 protection, and advanced BMS for superior performance.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Nominal Rated Voltage: 60V DC
- Brand/Trade Name: Eiferzen Energy
- Rated Capacity: 32Ah
- Energy Rated: 1.92 kWh
- Weight: 18Kg
- Battery Operating Voltage Range: 66.4V ~ 46.4V ±0.5V
- Recommended Charging Voltage (CV): 67.2V ±0.5V
- Charging Mode: CC-CV
- Charge Current: 0.3C (9.6A)
- Continuous Discharge Current: 0.8C (25.6A)
- Peak Discharge Current: 2C (64A for 10 sec)
- Low Voltage Disconnection: 44.8V ±1.0V
- High Voltage Disconnection: 76.5V ±1.0V
- Over-Charge Protection: Yes
- Over-Discharge Protection: Yes
- Over-Temperature Protection: Yes
- Over-Current Protection: Yes
- Short-Circuit Protection: Yes
- Audio and Visual Alarm: Yes (Optional)
- High Temperature Disconnection: 60°C
- Balancing Mode: Active/Passive (Optional)
- Paralleling Module: Optional
- Module Dimensions (LxBxH): 230 x 185 x 165 mm ±2mm
- IP Rating: IP65 (IP67 Optional)
- Operating Temperature: Charging: 0°C ~ +55°C; Discharging: -20°C ~ +60°C
- Storage Temperature: 0°C ~ +35°C
- Communication: Bluetooth, CAN, UART/RS485, IoT (all Optional)
Description
The Eiferzen Energy EMC 6032 is designed for EV mobility and has a potent 60V nominal voltage, 32Ah capacity, and 1.92kWh of energy. has extensive BMS safeguards, including optional alarms for over-charge, over-discharge, over-temperature, over-current, and short-circuit. Durability is guaranteed by the optional IP65/IP67 grade, and smart integration is made possible by optional Bluetooth, CAN, UART/RS485, or IoT. supports paralleling and active/passive balancing in a small 230x185x165 mm housing. For high-demand electric vehicles, CC-CV charging at 0.3C to 67.2V, continuous 0.8C discharge, and 2C peak are ideal.
Features
:- Strong BMS: short circuit, high-temperature (60°C) disconnect, overcharge, overdischarge, overcurrent, and overtemperature.
- For safety alerts, audio and visual alarms are optional.
- IP65 standard for water and dust resistance (IP67 optional).
- Temperature resilience: storage 0°C to +35°C, discharge -20°C to +60°C, and charge 0°C to +55°C.
- Interfaces that are optional include Bluetooth, CAN, UART/RS485, and IoT.
- Active/passive balancing; modularity can be achieved by optional paralleling.
- CC-CV charging: 67.2V CV, 0.3C (9.6A).
- Discharge power: 2C peak (64A/10s), 0.8C constant (25.6A).
- Voltage safety measures: high 76.5V ±1.0V, low disconnect 44.8V ±1.0V.
Applications
:- EVs, or electric cars
- High-power e-bikes and e-scooters
- Electric forklifts and carts
- Devices for mobility
- EV systems used in industry.
Usage
:- Install safely in a ventilated EV.
- For monitoring, use the optional Bluetooth, CAN, and IoT.
- CC-CV should be charged from 0.3C to 67.2V (0°C-+55°C).
- Discharge to a steady temperature of 0.8C with a peak of 2C; BMS automatically safeguards.
- Store between 0°C and 35°C.
