Brand: Generic ( Made in India )

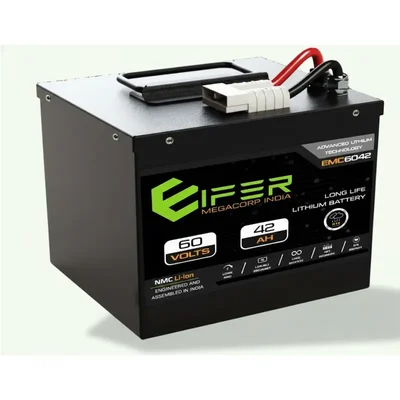

Eiferzen Energy 60V 42Ah 2.52kWh Li-Ion Battery EMC 6042
SKU: TI-EE-62534
Delivery By: Jan 26 - Jan 28
MRP : ₹41000 ₹33480
18% OFF!
Delivery By: Jan 26 - Jan 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹33480 (Including GST)
MRP : ₹41000
18% OFF!
Get Extra ₹502 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Premium 60V Li-Ion battery for EV mobility: 42Ah capacity, 2.52kWh energy, IP65 rating, comprehensive BMS protections.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Nominal Rated Voltage: 60V DC
- Brand/Trade Name: Eiferzen Energy
- Rated Capacity: 42Ah
- Energy Rated: 2.52 kWh
- Weight: 22Kg
- Battery Operating Voltage Range: 66.4V ~ 46.4V ±0.5V
- Recommended Charging Voltage (CV): 67.2V ±0.5V
- Charging Mode: CC-CV
- Charge Current: 0.3C (12.6A)
- Continuous Discharge Current: 0.8C (33.6A)
- Peak Discharge Current: 2C (84A for 10 sec)
- Low Voltage Disconnection: 44.8V ±1.0V
- High Voltage Disconnection: 76.5V ±1.0V
- Over-Charge Protection: Yes
- Over-Discharge Protection: Yes
- Over-Temperature Protection: Yes
- Over-Current Protection: Yes
- Short-Circuit Protection: Yes
- Audio and Visual Alarm: Yes (Optional)
- High Temperature Disconnection: 60°C
- Balancing Mode: Active/Passive (Optional)
- Paralleling Module: Optional
- Module Dimensions (LxBxH): 225 x 198 x 180 mm ±2mm
- IP Rating: IP65 (IP67 Optional)
- Operating Temperature: Charging: 0°C ~ +55°C; Discharging: -20°C ~ +60°C
- Storage Temperature: 0°C ~ +35°C
- Communication: Bluetooth, CAN, UART/RS485, IoT (all Optional)
Description
For demanding EV mobility requirements, the Eiferzen Energy EMC 6042 offers high-capacity 60V power with a 42Ah rating and 2.52kWh energy. includes optional alarms and complete BMS protection against over-charge, over-discharge, over-temperature, over-current, and short circuits. With Bluetooth, CAN, UART/RS485, or IoT options, IP65/IP67 is optional for tough application. 225x198x180 mm paralleling and active/passive balancing. 0.8C continuous and 2C peak discharges are supported by CC-CV charging at 0.3C to 67.2V.
Features
:- Complete BMS: 60°C high-temp disconnect, short circuit, overcharge/discharge, and overtemperature/current.
- Audio and visual alerts are optional.
- IP65 (IP67 optional) water and dust protection.
- Temperatures: 0°C–55°C for charging, -20°C–60°C for discharging, and 0°C–35°C for storing.
- Communications: RS485, Bluetooth, CAN, UART, and IoT (optional).
- Active/passive (opt.); paralleling opt.
- CC-CV, 0.3C (12.6A), 67.2V CV charging.
- Discharge: 2C peak (84A/10s), 0.8C continuous (33.6A).
- Protections: disconnect ±1.0V, 44.8V low/76.5V high.
Applications
:- EVs (electric cars)
- Performance e-bikes and e-scooters
- Electric carts/forklifts
- Mobility devices
- EV power for industries.
Usage
:- Install a ventilation mount in an EV.
- For monitoring, connect via Bluetooth, CAN, or IoT.
- CC-CV should be charged from 0.3C to 67.2V (0°C-+55°C).
- BMS auto-protects; use 0.8C cont./2C peak.
- Store between 0°C and 35°C.
