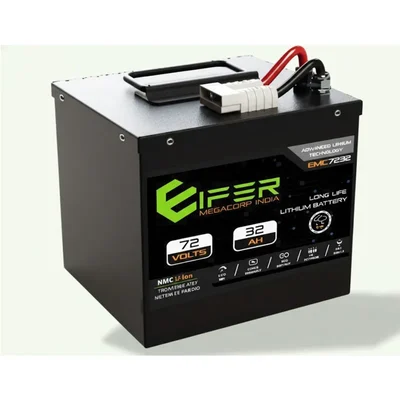

Eiferzen Energy 72V 32Ah 2.3kWh Li-Ion Battery EMC 7232

Brand: Generic ( Made in India )

Eiferzen Energy 72V 32Ah 2.3kWh Li-Ion Battery EMC 7232

Name: Eiferzen Energy 72V 32Ah 2.3kWh Li-Ion Battery EMC 7232
Brand: Generic ( Made in India )
SKU: TI-EE-62538
Price: 30671 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-EE-62538

MRP : ₹37000 ₹30671

17% OFF!

Get Extra ₹460 OFF on Prepaid Orders

Delivery By: Jan 26 - Jan 28

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹30671 (Including GST)

MRP : ₹37000

17% OFF!

Get Extra ₹460 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Ultra-high 72V Li-Ion battery for EV mobility: 32Ah, 2.3kWh, IP65, full BMS protections for heavy-duty use.

Country of origin: India

Brand: Generic ( Made in India )

Nominal Rated Voltage: 72V DC
Brand/Trade Name: Eiferzen Energy
Rated Capacity: 32Ah
Energy Rated: 2.3 kWh
Weight: 20Kg
Battery Operating Voltage Range: 83V ~ 58V ±0.5V
Recommended Charging Voltage (CV): 84V ±0.5V
Charging Mode: CC-CV
Charge Current: 0.3C (9.6A)
Continuous Discharge Current: 0.8C (25.6A)
Peak Discharge Current: 2C (64A for 10 sec)
Low Voltage Disconnection: 56V ±1.0V
High Voltage Disconnection: 85V ±1.0V
Over-Charge Protection: Yes
Over-Discharge Protection: Yes
Over-Temperature Protection: Yes
Over-Current Protection: Yes
Short-Circuit Protection: Yes
Audio and Visual Alarm: Yes (Optional)
High Temperature Disconnection: 60°C
Balancing Mode: Active/Passive (Optional)
Paralleling Module: Optional
Module Dimensions (LxBxH): 245 x 175 x 180 mm ±2mm
IP Rating: IP65 (IP67 Optional)
Operating Temperature: Charging: 0°C ~ +55°C; Discharging: -20°C ~ +60°C
Storage Temperature: 0°C ~ +35°C
Communication: Bluetooth, CAN, UART/RS485, IoT (all Optional)

Designed for superior EV mobility, the Eiferzen Energy EMC 7232 provides 2.3kWh of energy and 72V nominal power with a 32Ah capacity. Overcharge, overdischarge, overtemperature, overcurrent, short circuit, and optional alarms are all covered by a robust BMS. Toughness options include IP65/IP67 and Bluetooth/CAN/UART/RS485/IoT. 245x175x180 mm paralleling and active/passive balancing. CC-CV charge: 0.3C to 84V; peak discharge: 0.8C continuous.

Features

BMS complete coverage: 60°C disconnect, short circuit, overcharge, discharge, temperature, and current.
Choose visual and audio alerts.
IP65 environmental seal (IP67 optional).
Temperatures: 0°C–55°C for charging, -20°C–60°C for discharging, and 0°C–35°C for storing.
Communication options include IoT, Bluetooth, CAN, and UART/RS485.
Parallel opt; balancing active/passive opt.
Charge: 84V CV, CC-CV 0.3C (9.6A).
Discharge: 2C (64A/10s) peak, 0.8C (25.6A) continuous.
56V low/85V high ±1.0V are the cutoffs.
