Brand: Kirloskar

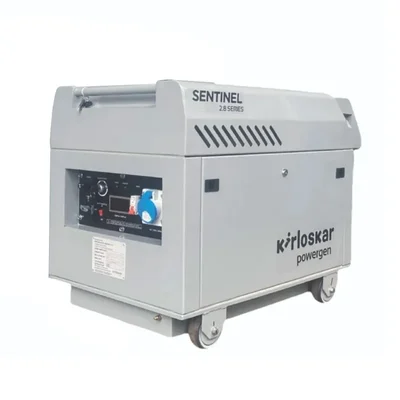

Kirloskar Portable Sentinel Series 3 KVA Electric/ Recoil Start Petrol Generator (KG4-PP-3AS)
SKU: TI-KP-47182
Delivery By: Dec 21 - Dec 23
MRP : ₹159999 ₹145999
9% OFF!
Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹145999 (Including GST)
MRP : ₹159999
9% OFF!
Get Extra ₹2,190 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kirloskar Portable Sentinel Series
3 KVA Electric/ Recoil Start Petrol Generator
1.62 Lt/Hr (At 100% Load) / 1.3 Lt/Hr (At 75% Load) / 1 Lt/Hr (At 50% Load)
Country of origin: India
Specifications
- Brand: Kirloskar
- Weight (Approx.) : 83 kg
- Fuel Used : Petrol
- Fuel Consumption : 1.62 l/hr
General Specifications :
- Model No. : KG4-PP-3AS
- Rated Output at 230V / 50Hz : 3 kW (3KVA)
- Max Rating (kW/kVA) : 3 kW
- Voltage : 230V
- Sound Level : < 86 LWA / dB(A)
- Fuel Consumption : 1.62 Lt/Hr (At 100% Load) / 1.3 Lt/Hr (At 75% Load) / 1 Lt/Hr (At 50% Load)
- Fuel Tank Capacity : 12.5L
Engine :
- Engine Model : CCP 196
- RPM : 3000
- Rated Output (Prime Continuous rating) as per ISO 3046 : 4KW (5.5 HP)
- Cubic Capacity : 196cc
- Lube Oil Change Period : First 20 hr. then Every 100 hr.
- Lube Oil Sump Capacity : 0.6 Ltrs (600 ml)
- Starting System : Electric / Recoil
- Low Oil Level alert (Trip) : Yes
- Overload Warning : Yes
- Battery Charging : Yes
- Eco Throttle : Electronic
Inverter :
- Rated Output at 230V / 50Hz : 3KW
- Max Output : 3KW
- % THD (Voltage) : < 5%
- Display Parameters : Digital Multi Fu'n Meter Voltage, Frequency, Hours
- Fuel Gauge ( Mech. Level Indicator) : Yes
- AC Output Connector : Yes
- AC Circuit Breaker : Yes
- Overall Dimensions (L x W x H) : 820 X 480 X 630 mm
Description
The KG4-PP-3AS from Kirloskar is a compact portable petrol-generator in the “Sentinel” series with a rated power output of approximately 2.8 kW (≈3 kVA) at 230 V/50 Hz. It features petrol fuel, single-phase output of 230 V and inverter technology (in some versions) to provide cleaner/stabler output. Intended for portable/mobile use (the “Portable & Stationary” range) from Kirloskar, it combines mobility, compact footprint and backup power capability.
Features
:- Rated output / power capacity : Rated output 2.8 kW (~3 kVA) at 230 V/50 Hz.
- Fuel tank & consumption : Fuel tank capacity ~12.5 L.
- At 100% load consumption ~11.62 Lt/Hr (At 100% Load) / 1.3 Lt/Hr (At 75% Load) / 1 Lt/Hr (At 50% Load)
- Noise level : ≤ 86 LWA (for the petrol generator version) according to catalogue.
- Engine: Model “CCP 196” (for the 2.8 kW version) with cubic capacity ~196 cc, rated output ~3.67 kW (prime) – per spec sheet.
- Starting system : Electric & recoil start (i.e., battery start + pull-cord) in many versions.
- Inverter / output stability : The spec sheet mentions inverter technology, THD of output ≤ 5% for clean electronics-friendly output.
- Portable design : Compact size, relatively low weight (~83 kg) for a genset, and likely features to assist mobility (though specific wheel/handle details may vary by model).
- Brand/service network : Kirloskar states wide service & support network in India, which adds reliability.
Applications
:- Home backup power : keeping lights, fans, TVs, small refrigerators running during power cuts.
- Small business/outlet backup : such as small shops, kiosks, offices needing a few kVA of standby power.
- Outdoor/mobile usage : events, construction site for small tools, temporary lighting, mobile workshops.
- Recreational/outdoor : camping, remote location power (within sensible load limits).
- Light industrial or agricultural support : powering small motors, pumps (within ~3 kVA capacity) in places lacking stable mains.
- Because the output is single-phase and modest (~3 kVA), it’s not aimed at heavy industrial loads or large three-phase machinery.
Usage
:Usage :
- Install the generator in a well-ventilated outdoor location, ensuring exhaust fumes are safely away from human occupied spaces.
- Ensure the load does not exceed the rated output (~2.8 kW) for prolonged periods; allow some margin for motor inrush and avoid overloading.
- Before starting: check fuel level, engine oil level, battery charge (for electric start), ensure air filter is clean.
- On starting: allow the generator to run for a few minutes unloaded to warm up the engine, then gradually apply load.
- Apply load in a balanced manner (if partial load, distribute to avoid spike loads); avoid sudden huge motor inrush without checking capacity.
- When shutting down : remove load first, allow the generator to run a minute or two under light load/unloaded to stabilize, then shut down engine.
- Always adhere to the manufacturer’s guidelines for enclosure, airflow, exhaust clearance and noise mitigation.
Maintenance :
- Oil change : According to spec sheet : first oil change after the first 20 hours, then every 100 hours of operation.
- Air filter cleaning/replacement : Regularly check the air filter (especially if used in dusty/dirty outdoor conditions); clean or replace as needed.
- Fuel system : Keep fuel fresh (petrol degrades over long storage); drain stale fuel if stored long; check for leaks.
- Battery : If electric start system is provided, keep the battery charged, check connections and terminals for corrosion.
- Spark plug (if petrol engine) : Inspect spark plug condition periodically; clean/replace if fouled.
- Cooling : Ensure engine cooling system is functioning (air-cooled or water-cooled depending on variant) ; ensure fins, vents are free of debris.
- Exhaust system : Check for leaks, secure mountings, inspect muffler/silencer for integrity, ensure exhaust path clear.
- Load test : Occasionally run the generator under load to ensure it functions properly; this helps prevent "sitting idle" issues.
- General inspection : Check for loose bolts, vibration, unusual noise, and ensure the canopy (if fitted) is intact, hinges and latches working, corrosion absent.
- Record keeping : Maintain a log of run hours, maintenance events, hours since last oil change - helps schedule service timely.
