Brand: Kirloskar

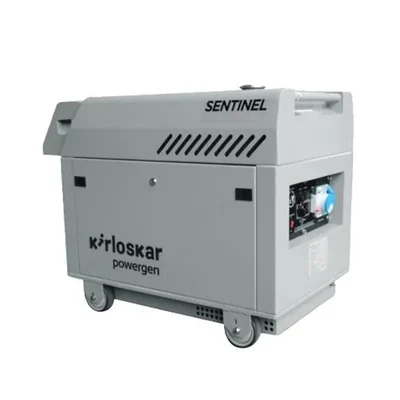

Kirloskar Portable Sentinel Series 5 KVA Electric/ Recoil Start Petrol Generator (KG4-PP-5AS)
SKU: TI-KP-47187
Delivery By: Dec 22 - Dec 24
MRP : ₹199999 ₹189999
5% OFF!
Delivery By: Dec 22 - Dec 24 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹189999 (Including GST)
MRP : ₹199999
5% OFF!
Get Extra ₹2,850 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kirloskar Portable Sentinel Series
5 KVA Electric/ Recoil Start Petrol Generator
2.83 Lt/Hr (At 100% Load) / 2.37 Lt/Hr (At 75% Load) / 1.88 Lt/Hr (At 50% Load)
Country of origin: India
Specifications
- Brand: Kirloskar
- Weight (Approx.) : 150 kg
- Fuel Used : Petrol
- Fuel Consumption : 2.83 l/hr
General Specifications:
- Model No. : KG4-PP-5AS
- Rated Output at 230V / 50Hz : 5 kW (5KVA)
- Max Rating (kW/kVA) : 5 kW
- Voltage : 230V
- Sound Level : < 86 LWA / dB(A)
- Fuel Consumption : 2.83 Lt/Hr (At 100% Load) / 2.37 Lt/Hr (At 75% Load) / 1.88 Lt/Hr (At 50% Load)
- Fuel Tank Capacity : 12.5L
Engine :
- Engine Model : CCP 389
- RPM : 3000
- Rated Output (Prime Continuous rating) as per ISO 3046 : 6.5KW (8.8 HP)
- Cubic Capacity : 389cc
- Lube Oil Change Period : First 20 hr. then Every 100 hr.
- Lube Oil Sump Capacity : 1.1 Ltrs
- Starting System : Electric / Recoil
- Low Oil Level alert (Trip) : Yes
- Battery Charging : Yes
- Eco Throttle : Mechanical
Inverter :
- % THD (Voltage) : < 5%
- Display Parameters : Digital Multi Fu'n Meter Voltage, Frequency, Hours
- Fuel Gauge ( Mech. Level Indicator) : Yes
- AC Output Connector : Yes
- AC Circuit Breaker : Yes
- Overall Dimensions (L x W x H) : 1040 X 550 X 685 mm
Description
The Kirloskar KG4-PP-5AS is a portable petrol-engine generator in the “Sentinel” series, rated at approximately 5 kW / 5 kVA output at 230 V/50 Hz (single phase). It features an engine of about 389 cc (model “CCP 389”) with electric + recoil start options. Fuel tank capacity is 12.5 litres, making it suitable for extended standby or portable use. It is built by Kirloskar (Kirloskar Oil Engines) in their Portable & Stationary Genset line. The unit balances portability, decent power capacity, and reliability for residential, commercial or light industrial backup power.
Features
:- Rated output at 230 V / 50 Hz: 5 kW / 5 kVA.
- Fuel consumption (approx) : At 100% load: ~ 2.83 L/hr. : At 75% load: ~ 2.37 L/hr. : At 50% load: ~ 1.88 L/hr.
- Fuel tank capacity : 12.5 litres.
- Noise level : ≤ 86 LWA (as per spec for this size) under standard conditions.
- Engine model : CCP 389, with prime continuous rating ~6.5 kW as per ISO 3046.
- Starting system : Electric + Recoil start (so both battery-start and manual pull-cord available) in many specs.
- Portable design : Though weight is not extremely light (approx 150 kg for canopy version) but relative to larger gensets it offers better mobility.
- Single-phase output : 230 V – appropriate for many homes, shops, site-uses.
- Robust brand & service network : Kirloskar’s longstanding presence in India adds to reliability.
Applications
:- Home / residential backup power: In homes or apartments where main power fails, this generator can keep lights, fans, TV, fridge, maybe some small AC or water‐pump running depending on load.
- Small business / shop backup: For small offices, shops, boutiques, kiosks, which require reliable power for lighting, computers, cash registers, CCTV, etc.
- Outdoor / mobile use: For mobile workshops, event lighting, remote location power-supply, construction sites (for small tools), agricultural field operations (pumps, lighting).
- Light industrial / agricultural support: For example powering a small irrigation pump or other motor (subject to load calculation), or lighting & ventilation in remote facilities.
- Because it provides single-phase 230 V output at ~5 kVA, it's not aimed at large three-phase heavy loads (large motors, full factory installation) but is ideal for smaller scale backup and portable power needs.
Usage
:Usage :
- Choose a dry, well ventilated outdoor location for operation. Ensure exhaust fumes are safely routed away from habitable spaces.
- Before starting: check engine oil level, ensure fuel tank is filled appropriately, ensure battery (if electric start) is charged, ensure all connections are secure.
- On starting: first start without load for a few minutes to let the engine warm up; then gradually apply load. Avoid applying full load instantly especially after cold start.
- Ensure your connected load is within the rated capacity (~5 kVA). Note that motor loads may draw higher starting current—provide margin.
- Balance your load: Spread across phases if applicable (though this unit is single phase). Avoid single heavy load that may overload the genset.
- While operating: monitor fuel level, oil pressure/temperature (if equipped), ensure airflow around the genset is unobstructed.
- When shutting down: Remove load, allow engine to run lightly for a minute or two, then shut off. Avoid abrupt stop under heavy load.
- Keep proper grounding and circuit protection (breaker/circuit-breaker). Use appropriate cables and ensure safety.
- If you are powering sensitive electronics (computers, networking, medical equipment) ensure the generator output is clean (voltage/frequency stable). The Kirloskar spec suggests good THD but still good to use stabilizers/UPS if required.
- Store the generator properly when not in use: drain fuel if stored long, protect from weather, keep battery charged for electric start.
Maintenance :
- Oil change : As per spec: First oil change after ~20 hours of operation, then every ~100 hours.
- Air filter : Check the air filter regularly (especially if used in dusty conditions). Clean or replace when dirty.
- Fuel system : Use fresh petrol fuel, ensure no water or sediment in tank. If stored long, drain or treat fuel as per manufacturer guidance.
- Battery / electric start system : If equipped, regularly inspect battery terminals, clean corrosion, ensure battery holds charge.
- Spark plug (for petrol engine) : Inspect periodically, clean or replace if fouled or worn.
- Cooling / ventilation : Ensure engine cooling fins, air/water-cooling paths are clean and unobstructed. For air cooled units ensure clearance around.
- Exhaust / muffler : Inspect for leaks, secure mountings, ensure safe exhaust discharge away from operator/habited areas.
- Load test : Occasionally run the generator under load (not just idle) to exercise the system and reveal any issues.
- General inspection : Check for loose bolts, vibration, unusual noise or smell. Check fuel lines, oil lines, wiring.
- Record keeping : Maintain a log of run hours, maintenance events, load hours, oil change dates etc – this helps plan service and detect patterns.
- Service network : Use authorized Kirloskar service centers for major servicing or when parts need replacement—ensuring spares and support are genuine.
- Storage : If the generator will be unused for long, properly prepare : drain or stabilize fuel, disconnect battery, store in dry, ventilated space to avoid corrosion or rodent damage.
