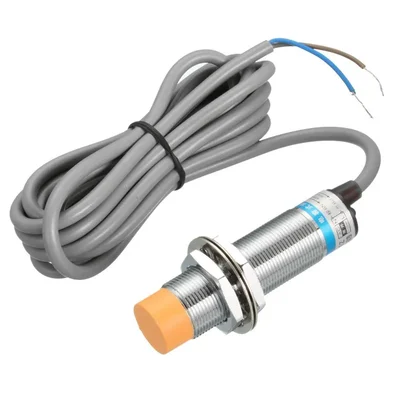

Nutronics M12 NPN NO 6mm Sensing Range Non-Flush Metal Proximity Sensor Switch

Brand: Nutronics

Nutronics M12 NPN NO 6mm Sensing Range Non-Flush Metal Proximity Sensor Switch

Name: Nutronics M12 NPN NO 6mm Sensing Range Non-Flush Metal Proximity Sensor Switch
Brand: Nutronics
SKU: TI-NM-81663
Price: 363 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-NM-81663

MRP : ₹500 ₹363

27% OFF!

Get Extra ₹5 OFF on Prepaid Orders

Estimated Delivery By: Aug 20 - Aug 22

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹363 (Including GST)

MRP : ₹500

27% OFF!

Get Extra ₹5 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

M12 NPN NO non-flush metal inductive proximity sensor with 6mm sensing range for industrial automation.

Country of origin: China

Brand: Nutronics
Weight (Approx.) : 130 gm
Net Quantity : 1 pc

Sensor Type: Inductive Proximity Sensor
Size / Threading: M12
Output Configuration: NPN NO (Normally Open)
Sensing Range: Up to 6mm
Mounting Type: Non-Flush Type
Enclosure Material: Metal
Color: White & Black
Product Dimensions (D x W x H): 11.2 x 13 x 4 cm

The Nutronics M12 NPN NO Proximity Sensor is a high-precision industrial inductive switch designed for reliable, non-contact detection of metallic objects. Built with a durable metal enclosure, this non-flush type M12 thread sensor offers an extended sensing range of up to 6mm. Operating on an NPN Normally Open (NO) output configuration, it delivers fast response times and high accuracy in automated systems. Featuring a compact footprint and rugged design, it provides exceptional stability across harsh industrial environments.

Features

NPN Normally Open (NO) Output: Delivers clear, low-side switching signals for PLCs, counters, and industrial controllers.
6mm Non-Flush Sensing Distance: Extended sensing capability for reliable detection of ferrous metals without physical contact.
Rugged Metal Enclosure: Housed in a durable metallic body designed to withstand industrial vibration and environmental wear.
Compact M12 Threaded Housing: Standard M12 dimensions ensure easy mounting and seamless retrofitting into existing machinery.
High-Precision Non-Contact Operation: Eliminates mechanical wear and tear, ensuring long service life and fast frequency response.

Applications

Industrial Automation: Position sensing, object counting, and limit control on conveyor belts.
Machine Tooling & CNC: Non-contact detection of metal parts, tooling positions, and mechanical stops.
Packaging Machinery: High-speed bottle, cap, and metallic package presence verification.
Assembly Lines: Automated part sorting and robotic arm positioning.

Usage

Mounting: Insert the M12 sensor thread into the mounting bracket, keeping the non-flush tip clear of surrounding metal frames.
Securing: Tighten the included metal lock nuts to fix the sensor securely in position.
Wiring: Connect the power supply and load according to the standard NPN NO wiring diagram (Brown: V+, Blue: V-, Black: Signal/Load Output).
Target Alignment: Align the target metal object within the designated 6mm sensing range.
Testing: Power up the system and verify signal triggering when a metallic target passes the sensor head.
