26m Max. Head, 33 LPM Max. Discharge
25X25 mm Pipe Size
1 Year Warranty
Brand : Kirloskar

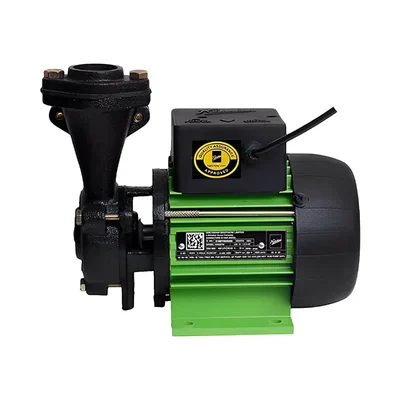

Kirloskar 0.5Hp Single Phase Self Priming Monoblock Pump, 26m Max. Head, Pipe Size 25X25mm (CHHOTU) - 1 Year Warranty
SKU : DK-KP-2108
MRP : ₹5880
₹3699
37% OFF!
-
1
+
1575 people have viewed this recently
Delivery By: Aug 19 - Aug 21
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Kirloskar 0.5 HP Single Phase Monoblock Water Pump (CHHOTU)
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 0.5 hp
- Weight (Approx.) : 6 kg
- Flow Rate : 33 lpm
- Head : 26 meter
- Model No : CHHOTU
- Product Type : Monoblock Pump
- Brand : Kirloskar
- Power Source : Corded Electric
- Motor Power : 0.37 kW
- Power Supply : 180-240V, AC Supply
- Electricity Connection : Single Phase
- Suction x Delivery Pipe (Size) : 25 X 25 mm
- Current Rating : 2 Amp.
- Head Range : 20 to 85 feet (6 - 26 meters)
- Max. Flow Rate : 33 to 6 LPM (1980 to 360 LPH)
Materials of Construction :
- Impeller : Brass
- Pump Shaft : Carbon steel
- Delivery Casing : Cast Iron
- Mounting casing : Cast Iron
- Motor Body: Extruded Aluminum
- Cover NDE : Aluminum
- Mechanical seal : Carbon-ceramic
Description
A self-priming monoblock pump integrates the motor and pump into a single unit and can automatically draw air from the suction line to initiate pumping without manual priming. It is widely used for domestic water supply, small-scale irrigation, and dewatering applications where reliable, hassle-free operation is needed.
Features
:- Shielded Ball Bearing : The low noise pumps are fitted with shielded ball bearing; so, no external lubrication is required throughout the life cycle.
- High Efficiency and Energy Saving Design : Innovative design manufactured at state of the art, plant ensures optimum efficiency and lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damage during operation, resulting in consistent performance as concentricity is maintained.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components ensures that the pump can be serviced even at remote locations by semi-skilled technicians.
- TOP - Thermal Overload Protector : The pump set features a thermal overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
- Lightweight and Compact Design : It allows user to carry the pump anywhere with ease, adding to its portability and convenience of use.
- High Suction Lift : The pump has suction lift capacity of up to 7.5 metre with high head, facilitating pumping of water at high volumes for a variety of applications.
- High Quality Aluminium Motor Body : Special grade aluminium motor body ensures high resistance to corrosion, better heat dissipation and lowers the pump’s overall weight for great portability.
- Enhanced Safety Features : All electrical parts of the pump are covered, which makes it safer to use.
- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations ranging from 180 - 260 volts, thus reducing the possibility of motor burning in case of low voltage.
Applications
:- Water supply to over head tanks
- Gardens/ Fountains
- Feed water to RO plants
- Domestic water supply
- Car washing & Lawn sprinklers
- Construction site.
Warranty :
- One Year Onsite Warranty.
