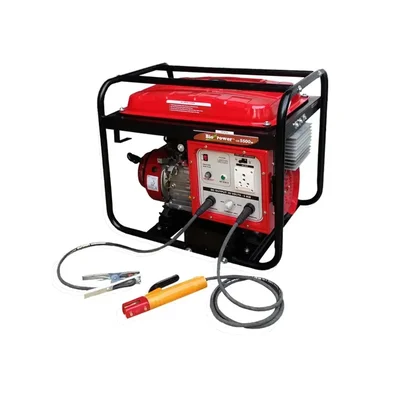

HPM 3 KVA Recoil Start Portable Petrol Run DC Welder cum Generator Machine

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

200 Amps DC Petrol Welder Generator

Max. AC Output 3000 VA

Maximum Electrode diameter Upto 4.0mm

Description

HPM 3 KVA Recoil Start Portable Petrol Run DC Welder cum Generator Machine

Features :

• Most Portable
• Low cost but high quality
• A C.Pilot Lamp
• A.C. Circuit Protector

• Fuel Level Gauge
• A.C. Output Sockets

Specification :

• Model No.: GE-W 5500 R
• Product Type : Welder cum Generator
• Brand: HPM
• Dimension (LxWxH): 670 x 510 x 580 mm
• Weight : 64Kg (Approx)

DC Welding :

• Maximum Welding Current : 200 Amps, 5 kW
• Rated Welding Output Current (Duty Cycle 60%) : 175 Amps.
• Working Voltage : 20-30 V
• Open Circuit Voltage (OCV) : 65 Volt (Minimum)
• Welding Current Regulation (Amps) : 75 – 175 AMPS
• Rectifying Mode : SCR, Phase Controlled 3-phase,Rectifying Bridge
• Maximum Electrode diameter : 2.6- 4 mm


AC Generator :

• Type : Brushless with Rear Earth Magnet Rotor
• AC Output Power : 3000 VA
• Output Current : 13 Amps
• AC. Voltage On “Eco Mode” (at Load): 220 Volts ± 10 Volts, Single Phase
• Frequency (Adjustable): 50 to 60 Hz.
• NFB Amps: 13 Amps.
• Class of Insulation: F

Engine :

• Engine Model : HM170P
• Type : Single Cylinder Air-cooled; 4 stroke,OHV25˚ Inclined
• Maximum Power : 6.5 HP
• Bore x Stroke : 70 x 58
• Displacement : 223 cc
• Starting System : Recoil Start
• Ignition System : TCI (Transistor ControlIgnition)
• Fuel : Petrol
• Fuel Tank Capacity : 20.5 Liters
• Fuel Consumption 60 % Duty Cycle : 1.1 Ltr/hr
• Continuous Operating Hour : 20 hr (Approx)
• Lube. oil capacity : 600ml
• Lubricating Oil Consumption : 2.5 gm/Hr
• Engine Oil Protection : Electronic Oil Alert & Indicator

Accessories:

• AC plug
• Tool Kit
• Welder Holder
• Earthing Clamp with 3 Mtr. Cable
• Oil Funnel
• Owner’s Manual

Note :

• Do not use the welder for work other than welding.

• Do not touch the live part.
• Do not solder in places where skimming, cleaning and spraying are required.
• When using, please wear a protective cover or protective clothing.
