Irrigation Sprinkler Impact Type Atom 15 FC 2 Nozzle (Pack of 2)

Name: Irrigation Sprinkler Impact Type Atom 15 FC 2 Nozzle (Pack of 2)
Brand: DuCar
SKU: DK-SP-107
Rating: 80 (5 reviews)

SKU: DK-SP-107

Out of Stock

Water Input : 1"
Working Pressure : 2-4,5 kg/cm²
Water Requirement : 1,95- 4,88 m³

Description

Irrigation Sprinkler Impact Type Atom 15 FC 2 Nozzle (Pack of 2)

Features :

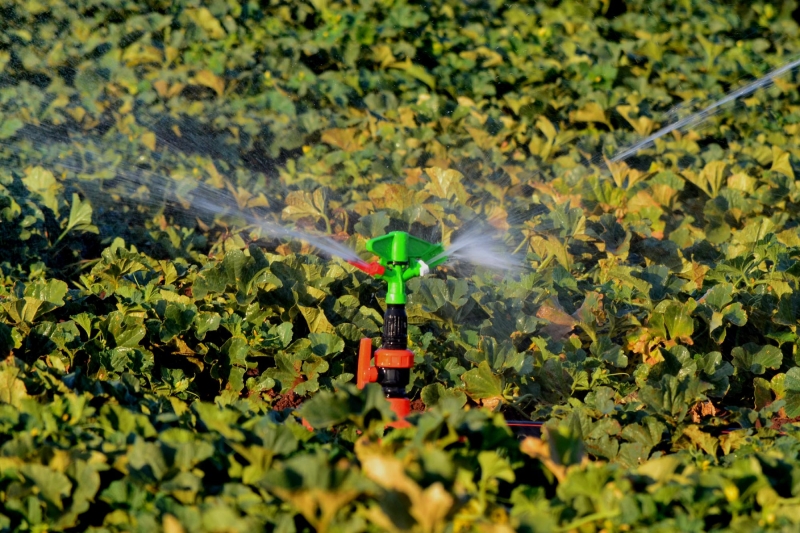

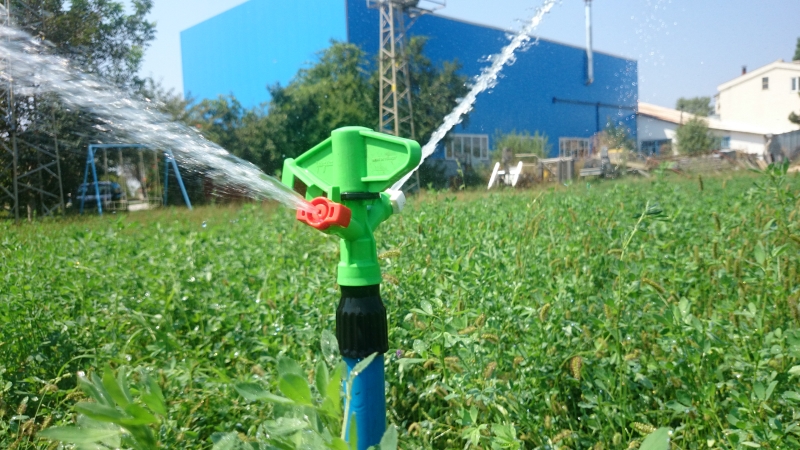

It is a new model, under the patent protection, developed by Yüzüak Makina as a result of its 2-year ARGE activities. Thanks to its special body structure, it has two different water spraying angles as 22 and 27 degree. It has also an adjustable rotation speed.The sprinkler head has been designed in a manner operable with both body angles. In windy regions, water outlet of 220 is recommended. Thanks to this, it will spray the water from a lower point and so, the impact of wind will be the minimum. By using the body angle of 270, optimum irrigation can be ensured. Thanks to its nozzle used as a blind plug, your sprinkler head can be also used as a single hole. Thank to this, by means of closing the second water outlet with its 4mm Special Design square nozzle in places with less water, it can be operated with 17.5 liters water. With this nozzle, you can increase up to 10m X 10m or 12m x 12m arrangement range. With the spring setting under the spoon mechanism, you can enable your gun to spray the water forward by turning slowly and equally to everywhere by turning fast.

Specifications :

Model No. : Atom 15 FC 2 Nozzle
Product Type : Irrigation Sprinkler
Brand : DuCar
Water Input : 1"
Working Pressure : 2-4,5 kg/cm²
Water Requirement : 1,95- 4,88 m³

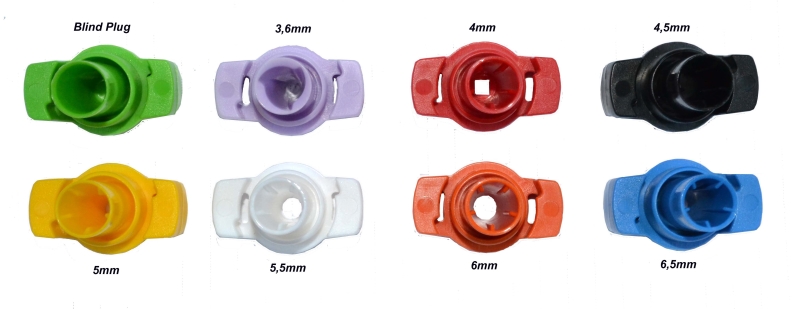

Knockers : 4,0mm x 3,6 mm, 4,0mm X 4,5 mm, 4,0mm X 5,0mm, 4,0mm X 5,5mm, 4,0mm X 6,0mm, 4,0mm X 6,5mm

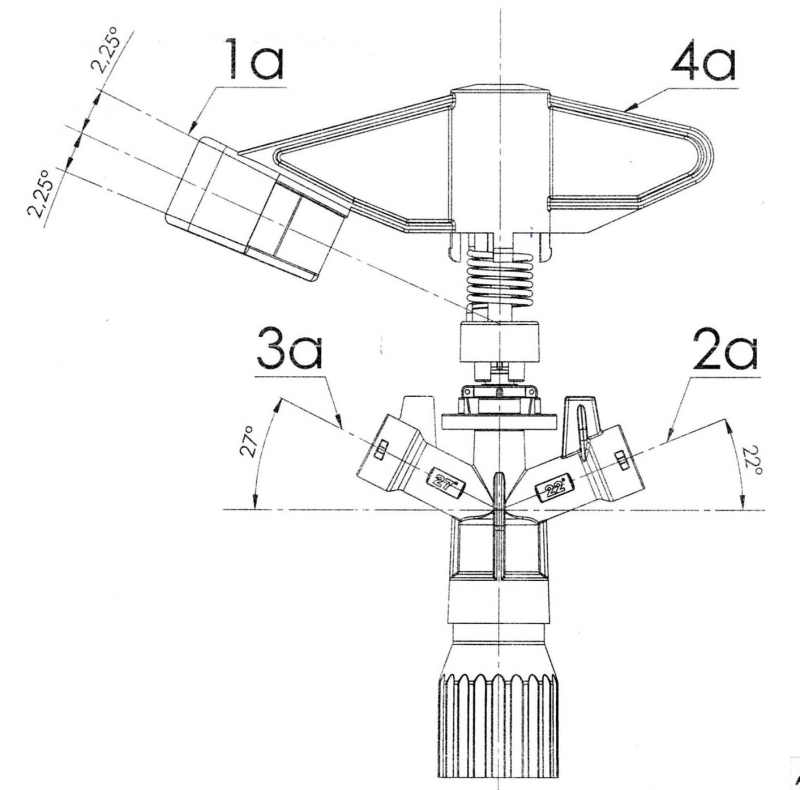

Body Angle : 22-27 degree
Dimensions : 180cm X 200cm
Box Dimensions : 36cmX38cmX111cm
Weight : 0.2 kg (Approx)
