Brand: Vukar
Vukar 7.5Hp 3Ph Fully Automatic Openwell / Monoblock Starter Panel with Float Switch (TPA-O) - 3 Months Warranty
SKU: TB-VU-28489
Delivery By: Jun 24 - Jun 26
MRP : ₹6424 ₹5099
21% OFF!
Delivery By: Jun 24 - Jun 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹5099 (Including GST)
MRP : ₹6424
21% OFF!
Get Extra ₹76 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Vukar Upto 7.5 Hp Three Phase Openwell / Monoblock Starter Panel (TPA-O)
With Float Switch
Fully Automatic Water Level Controller
3 Months Warranty
Country of origin: India
Specifications
- Brand: Vukar
- Weight (Approx.) : 5 kg
- Model : TPA-O
- Item Code : TPA-O3
- Product Type : Openwell / Monoblock Starter Panel
- Power : Upto 7.5 Hp (5.5 kW)
- Electricity Connection : Three Phase
- With Float Switch : Yes
- Fully Automatic Operation : Yes
Description

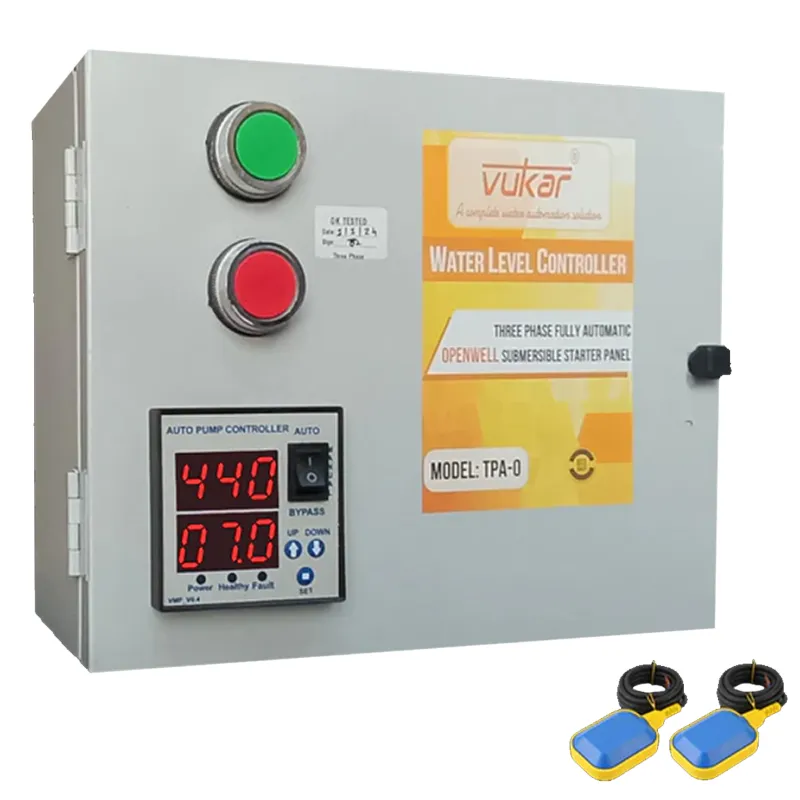

The Vukar Three Phase Digital DOL Water Level Control Panel is specifically designed for use with Openwell and Monoblock (Tullu) pumps. This advanced control panel incorporates several protective features to ensure safe and efficient operation of submersible pumps.
Features
:- Fully automatic operation : Motor will turn ON and OFF as per the water level in the overhead tank. When the water gets empty in sump, the motor will automatically stop. When sump is not available, users can bypass the sump function.
- Motor overload protection : It has inbuilt overload protection to protect the motor. Users can set the overload setting as per motor rating.
- Motor dry run protection : It has inbuilt motor protection device. It has dry run protection to protect the motor. Users can set the dry run setting as per motor rating.
- Voltage protection : It has an inbuilt voltage protection device. Motor will turn off when the supply voltage is not within the range of overvoltage and under-voltage set by the user. It protects the motor from voltage fluctuation.
- Digital display : It has a dual display. It displays voltage, ampere, timer and fault of the motor.
- Single phase preventer : It has inbuilt single phase prevent. It detects the phase loss condition and stops the motor immediately.
- Phase sequence detector : It detects the sequence of the R,Y,B phase. When the power cables are not connected properly or when phase sequence changes, it protects the motor.
- Includes cable float switch : It includes the cable float switch sensor as a water level sensor.
- 100% safe & shockproof : Water level sensor operates in +3V DC voltage. In case of sensor failure, there is no chance for the leakage of current. It is 100% safe to use in any water tank.
- ISI wiring : This starter panel uses the lug based ISI wiring. Ampere capacity of the wires used is 2x capacity of the rated ampere. ISI standard wires are recommended to use with the rated amperage as per HP rating of the motor. It is necessary to use the lug wiring with the power wiring for water pump application to ensure the long life of the motor.
- Use of transformer coil : It has inbuilt heavy quality transformer coil. Transformer coil isolates the main input power to the control unit. This increases the reliability, safety and life cycle of the control unit.
- Electric contactor : Electric contactor is used to isolate the input power and motor connections. Ampere rating of the electrical point of the contactor is 2x capacity of the rated ampere.
- Powder coated metal enclosure : It has a shockproof heavy duty powder coated metal enclosure. Powder coated metal enclosures ensure the product should be delivered to the customer without any physical damage to the customer.
- Spare parts availability : Each Spare part is easily available in local markets all over India. User is not dependent on a specific manufacturer in case of immediate repair of any spare parts.
- 100% Technical support : We offer excellent technical customer care support to our clients.
Accessories
:- Float Switch
Applications
:- Domestic
- Industrial
WARRANTY :
- 3 Months Warranty
