Brand: Generic (Imported)

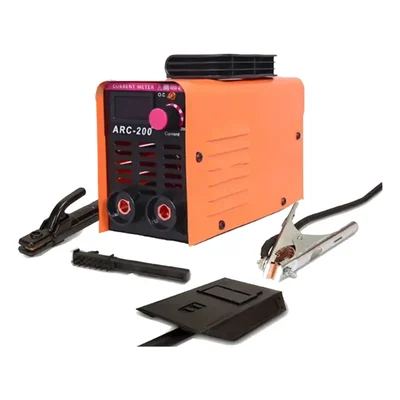

ARC 200 Mini Single Phase Inverter Welding Machine with IGBT Technology
SKU: IT-BB-0206
284 people have bought this recently
Delivery By: Dec 15 - Dec 17
MRP : ₹6000 ₹4099
32% OFF!
284 people have bought this recently Delivery By: Dec 15 - Dec 17 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹4099 (Including GST)
MRP : ₹6000
32% OFF!
Get Extra ₹61 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
ARC 200 Mini Single Phase Welding Machine
IGBT Welding Machine
200 Amp Current
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 2.5 kg
- Output Current Range : 200 amp
- Technology : IGBT
- Model No. : ARC 200 Mini
- Rated Input Voltage : AC 220+10%
- Electricity Connection : Single Phase
- Frequency : 50/60Hz
- Rated Input Capacity : 6.0 KVA
- Rated Input Current : 16 V
- Output Voltage : 75 V
- Duty Cycle (%) : 60%
- Rated Output Current Range : 20-200 A
- Rated Output Voltage Range : 20.8 - 24.4 V
- Efficiency % : 85%
- Insulation Class : F
- Case Protection class : Ip23
- Suitable electrode (MM) : 2.5 mm and 3.15 mm
- Cable Length: 1-1.5m (Approx.)
Description
A high-performance instrument built for demanding welding jobs is a 200 amp welding machine. With its 200 amp electrical current delivery capacity, this kind of machine is ideal for welding thick materials and managing challenging jobs. Professionals that require a strong, high-capacity instrument for challenging welding tasks may consider a 200 amp welding machine since it offers the strength and versatility needed to complete the task quickly and effectively.
Features
:- Hot Start knob/ switch to avoid pre-heating of the electrode
- VRD function with an external switch, meet CE requirement
- Arc force function to avoid sticking
- Smart Digital Display
- Smart fan Specially Made for the Indian Climate
- Lightweight & portable
Accessories
:- 1 x Electrode Holder
- 1 x Earthing Clamp
- 1 x Welding Shield
- 1 x Cleaning Brush
Applications
:- Fabrication of metal
- Construction sits
- Repair and Maintenance
- Light Fabrication
Suitable for :
- 2.5 mm (MS Rod) 12 Gauge.
- 3.15 mm (MS Rod) 10 Gauge.
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning, and spraying are required.
- When using, please wear a protective cover or protective clothing.
Usage
:Usage Guidance :
- Connect the machine to a stable 220V single phase power supply.
- Choose the correct electrode size based on material thickness.
- Adjust current using the control knob according to your welding task.
- Maintain proper arc distance for smooth welding.
- Allow cooling breaks to ensure best performance.
Maintenance Guidance :
- Clean the vents regularly to avoid dust buildup.
- Check cables and connections before each use.
- Store in a dry and safe place to prevent moisture damage.
- Do not exceed the recommended duty cycle.
- Inspect electrode holder and clamps periodically.
