Brand : TURTLE

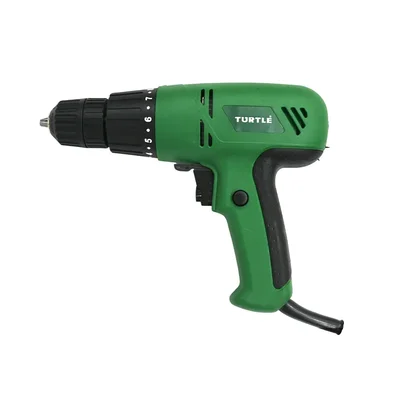

Turtle 10mm 450W Electric Screw Driver, 750W No Load Speed (ST-751A)
SKU : TI-TG-45833
MRP : ₹1550
₹1200
23% OFF!
-
1
+
Get Extra ₹18 OFF on Prepaid Orders
Delivery By: Oct 14 - Oct 16
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Turtle 10mm 450W Electric Screw Driver
750W No Load Speed
Country of origin: China
Specification
  • Brand: TURTLE
  • Power : 450 w
  • Weight (Approx.) : 2 kg
  • Drilling Capacity : 10 mm
  • No-Load Speed : 750 rpm
  • Model No. : ST-751A
  • Rated Frequency : 50Hz
  • Rated Voltage : 220 V
Description
The Turtle 10 mm, 450 W Screwdriver is a corded electric screw‑driving / light drilling tool designed for general workshops, assembly lines, maintenance work, and industrial fastening tasks. Its 10 mm chuck (or bit-holder) allows the use of standard bits and small drills. With a rated power of 450 W and a no-load speed of 750 rpm, it is optimized for controlled, torque‑driven screw insertion rather than high-speed drilling in hard materials.

Features

 :
  • Rated Power : 450 W Provides enough torque for moderate screwdriving tasks in wood, metal, plastics.
  • No-Load Speed : 0–750 rpm Allows controlled, precise screw insertion; avoids over‑torquing or "runaway" bit spin.
  • 10 mm Chuck / Bit Holder : Accepts bits or small drill bits up to 10 mm (or equivalent bit shank sizes).
  • Reversible Forward/Reverse Switch : Enables screw insertion and removal conveniently.
  • Ergonomic Housing & Grip : To reduce operator fatigue during extended use.
  • Spindle Lock / Bit Change Mechanism : For easily changing bits.
  • Insulation / Double Insulation : Electrical safety features to prevent shock.
  • Cooling Vents / Fan : To dissipate heat during operation.
  • Durable Construction : Metal / reinforced parts at stress points (gears, bearings).

Applications

 :
  • Industrial or workshop screw fastening (e.g. in assembly lines).
  • Mounting of panels, enclosures, fixtures where screws go into wood, soft metal, plastics, composite sheets.
  • Light drilling tasks in softer materials (e.g. plywood, plastic) when using small bits ( ≤ ~6–8 mm), albeit at lower speeds.
  • Maintenance jobs, onsite repair work requiring screw removal/insertion.
  • Electrical / electronics enclosures, furniture assembly, mechanical component fastening.

Usage

 :
Usage :

  • Bit / Drill Selection : Use bits appropriate for the material. For screwdriving, use driver bits with a shank compatible with the 10 mm chuck. For light drilling, limit to small diameters and soft materials.
  • Speed Control : Begin with low speed for engaging the screw; ramp up as needed.
  • Use full 750 rpm only when necessary, avoid overrevving.
  • Torque / Pressure Application : Do not force the bit—allow the motor’s torque to drive the screw. If stalling occurs, back off, reverse slightly, and retry.
  • Reversal / Removal : Use the reverse function to loosen fasteners. Always stop rotation before reversing to avoid damaging threads.
  • Duty Cycle Awareness : Avoid running continuously for extended periods without breaks; let the motor cool if it becomes hot.
  • Mounting / Support : Hold the tool firmly but without excessive twisting. Use both hands where possible for better control.
  • Bit Changes : Engage the spindle lock (if present), loosen the chuck/collet, insert new bit, then tighten securely.

Maintenance :

Cleaning
  • After each use, clean the exterior with a dry, soft cloth.
  • Blow out dust from ventilation slots using compressed air (at low pressure).
  • Avoid allowing dust accumulation inside motor housing.

Lubrication
  • Periodically lubricate gears and moving parts (as per manufacturer’s guidance) with appropriate grease (e.g. gear grease).
  • Avoid over-greasing, which may attract dust.

Inspect Brushes / Commutator
  • For a brushed motor design, inspect carbon brushes periodically. Replace worn brushes before metal-to-metal contact occurs.
  • Clean commutator with proper solvents if carbon dust causes buildup.

Check Bearings / Shafts
  • Monitor for any play or roughness in bearings. Replace if worn.
  • Ensure the spindle and shaft are free of rust or damage.

Electrical Checks
  • Inspect the power cord and plug for damage, cracks, or fraying; replace if compromised.
  • Check for insulation breakdown or internal wiring issues.

Torque / Calibration
  • If the tool has torque settings or clutch, periodically verify that the torque calibration is still accurate (if applicable).
  • Any slippage or torque inconsistency should be addressed.

Storage
  • Store in a clean, dry environment.
  • Use the original case (if any) to protect against impact or dust ingress.

Periodic Overhaul
  • After a certain number of hours or usage cycles (as per manufacturer spec), consider full servicing: disassembly, thorough cleaning, part replacement, reassembly
