Brand: Generic (Imported)

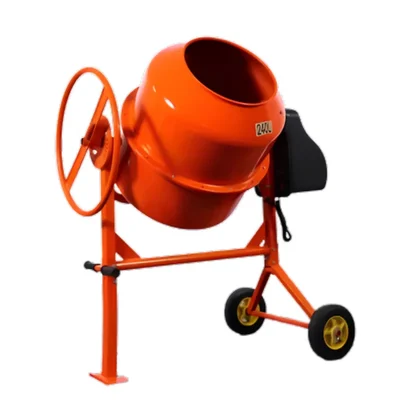

Heavy Duty 240L 1000 Watt Steering Type Mini Concrete Mixer
SKU: TI-HD-14001
60 people have bought this recently
Delivery By: Jan 30 - Feb 1
MRP : ₹33500 ₹24949
26% OFF!
60 people have bought this recently Delivery By: Jan 30 - Feb 1 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹24949 (Including GST)
MRP : ₹33500
26% OFF!
Get Extra ₹374 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
240L 1000 Watt Steering type Mini Concrete Mixer
1400-2800 RPM Motor Speed
28 RPM Drum Speed
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 69 kg
- Power : 1000 w
- Drum Capacity : 240 l
- Drum Thickness : 2 mm
- Net Quantity : 1 pc
- Motor Power : 1000 W
- Voltage : 220-240V 50 Hz
- Drum Diameter : 650 mm
- Drum Height : 700 mm
- Mouth Diameter : 395 mm
- Upper Drum Thickness : 1.5 mm
- Motor Speed : 1400-2800 RPM
- Drum Speed : 28 RPM
- Insulation Level : IP45
- Mixing Completion Time (Max.) : 10 mins
- Wheel Size : 235*60 mm
Description
This Heavy Duty 240L Electric Steering Type Mini Concrete Mixer features a 1000W 1HP motor for efficient cement mixing. Its durable 2 mm drum, 28 RPM speed, and 10-minute mixing time ensure smooth and uniform results. Designed for builders and contractors, it offers easy steering control, portability, and long-lasting performance for all construction needs.
Features
:- Powerful 1000W Motor : Delivers strong and consistent performance for heavy-duty mixing tasks.
- Large 240L Capacity : Suitable for mixing large batches of cement, mortar, or concrete.
- Durable Drum Build : 2 mm thick drum body and 1.5 mm upper section ensure long-lasting use.
- Efficient Mixing Speed : 28 RPM drum speed achieves complete and uniform mixing within 10 minutes.
- High-Speed Motor : Operates at 1400–2800 RPM for reliable and efficient performance.
- Convenient Steering Type : Easy-to-use steering control for smooth tilting and precise discharge.
- Safe Operation : IP45 insulation offers protection from dust and moisture.
- Portable Design : Equipped with 235×60 mm heavy-duty wheels for effortless mobility on job sites.
- Stable Power Supply : Works on 220–240V, 50 Hz single-phase connection suitable for domestic and commercial use.
Applications
:- Ideal for mixing cement, mortar, plaster, and concrete at construction sites.
- Suitable for home renovation, small building projects, and road repair work.
- Perfect for contractors, builders, and DIY users needing efficient mixing on-site.
- Used in residential, industrial, and commercial construction tasks.
Assemble Guidance :
Here is a step-by-step guide based on standard assembly for this specific model :
1. Assemble the Frame and Wheels :
- The Stand : Connect the main support leg to the axle frame. Secure them using the provided bolts, washers, and nuts.
- The Wheels : Slide a wheel onto each end of the axle. Secure them using a flat washer followed by a split pin (cotter pin). Remember to bend the ends of the split pin outward so the wheels don’t fall off.
2. Mount the Lower Drum :
- The Bearing Block : Slide the bearing block onto the shaft of the lower drum.
- Mounting : With a partner, lift the lower drum and place it onto the side supports of the frame. The gear ring on the drum should align with the pinion gear on the frame.
- Secure : Fasten the bearing blocks to the frame using the M8 bolts and locking nuts provided.
3. Install the Mixing Blades (Paddles) :
- Inside the lower drum, loosely attach the two mixing blades.
- Pro Tip : Use the rubber washers provided between the blade and the drum wall to prevent water/cement leakage and to reduce vibration.
4. Attach the Upper Drum :
- Place the upper drum onto the lower drum. Most models have arrows marked on the rims—make sure these arrows align perfectly to ensure the bolt holes line up.
- Insert the bolts around the rim and tighten them progressively (tighten one, then the one opposite it) to ensure an even seal.
- Finish securing the top of the mixing blades to the upper drum.
5. Install the Steering Wheel & Motor :
- The Locking Plate : Slide the notched locking plate over the steering shaft and bolt it to the frame.
- The Steering Wheel : Attach the steering wheel to the shaft. This allows you to tilt the drum and lock it into different positions for mixing or pouring.
- The Motor Box : Align the motor assembly with the pinion shaft. Slide it into place and secure it to the frame with the designated bolts. Ensure the drive belt (if not pre-installed) is seated correctly on the pulleys.
Safety Checklist Before Starting :
1. Tighten All Bolts : Go back over every nut and bolt; vibration from mixing can loosen them quickly if they aren't snug.
2. Level Ground : Always operate on a flat, solid surface to prevent the mixer from tipping over when full.
3. Power : Plug it into a grounded 220–240V outlet. (As we discussed, a 3-5 kVA generator is plenty for this 1000W motor).
Usage
:User Instructions :
1. Setup :
- Place the mixer on a level surface and ensure a stable power connection (220–240V).
- Check all fasteners and ensure the drum rotates freely.
2. Loading :
- Tilt the drum to the loading position and add cement, sand, gravel, and water as required.
3. Mixing :
- Turn on the motor and let the drum rotate at 28 RPM.
- Mix for about 8–10 minutes for optimal consistency.
4. Discharging :
- Use the steering handle to tilt and pour out the mixed material safely.
- Switch off and unplug after use.
Maintenance :
- Clean the drum thoroughly after every use to prevent hardened concrete buildup.
- Lubricate rotating and moving parts periodically for smooth operation.
- Inspect electrical cables and connections regularly for damage.
- Keep air vents and motor casing free from dust.
- Tighten loose bolts or nuts before each operation.
- Store in a dry, clean area away from moisture and direct sunlight.
