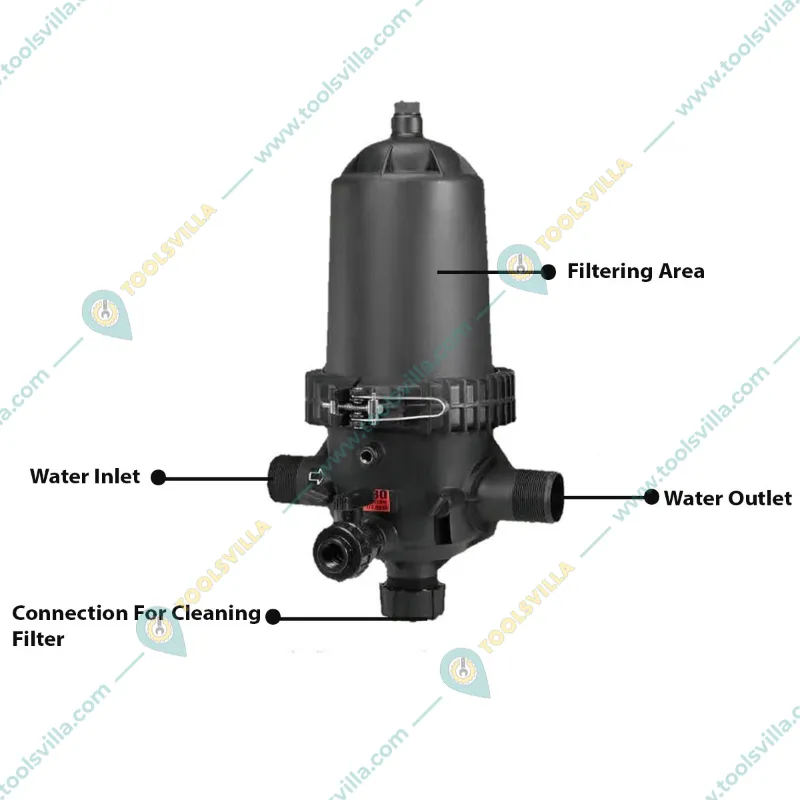

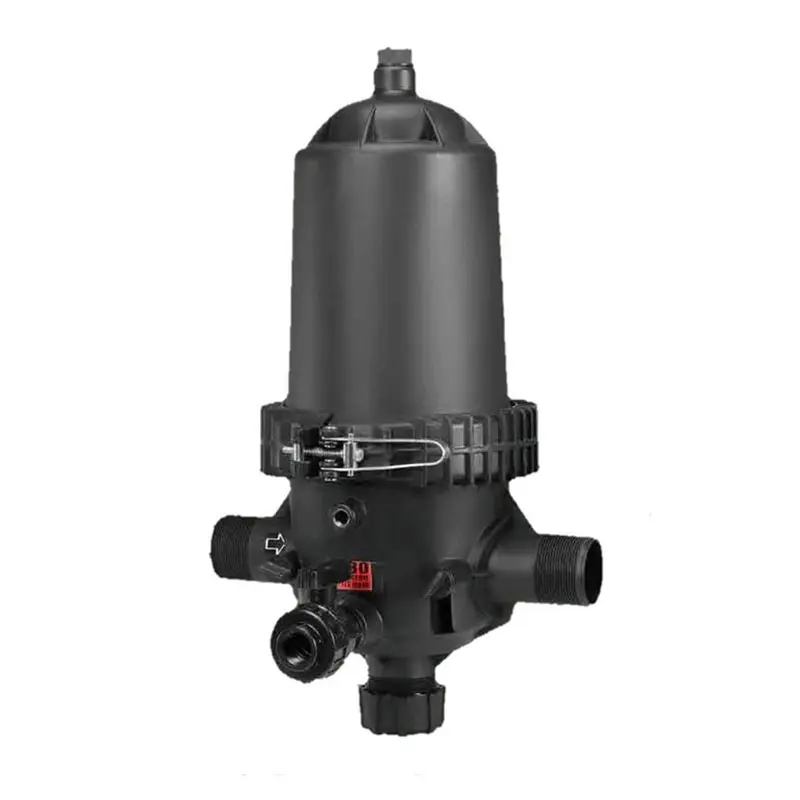

Automat 3 inch T-Type Screen Filter with 40m³ per hour flow rate used for water purification purposes

5.0

• Model No : HT-126T
• Material : Polypropylene Glass Filled
• Size : 3 Inch (7.62 cm approx)
• Screen : 120 standard mesh filtration degree

• Inlet/ Outlet Connection : 3 Inch (7.62 cm approx) BSP Male Thread
• Max. Operating Pressure : 6 kg/cm2

• Range of Flow Rate : 35 -45m³/hr

• Max. Recommended Flow Rate : 40 m³/hr (667 ltr/hr)
• Filtration Surface Area : 754 cm2
• Cartridge Diameter : 121 mm

• Cartridge Length : 377 mm
• Weight : 5 kg(approx.)

Features

• Outside - Inside filtration.
• For upside installation.
• Provided with specially designed vacuum breaker valve for quick drain and to avoid vacuum/air trapping.
• Clamp made out of re-enforced Nylon with plated steel lock assembly for durability.
• The filters are made from special chemically bonded polymer which are weather resistant.
• Bigger drain port provided for water drainage.
• Screen comes with special SS-316 Single mesh for strength and corrosion resistance.
• Specially designed long handle for easy clamp opening & closing

Applications

• Effective in filtering organic as well as inorganic contaminants
• Mainly used if algae, silt and clay particles are abundant quantity into water/muddy water

Shipping Weight & Dimensions
