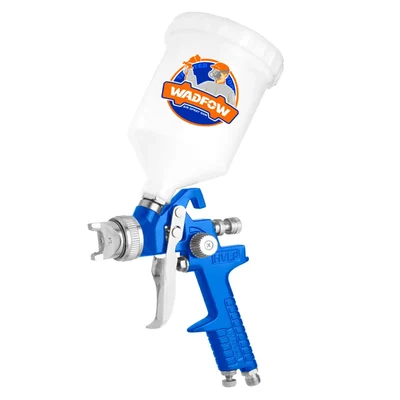

Wadfow 1.4 mm HVLP Air Spray Gun

With 600ml Cup Capacity

Suitable for Finishing Coat

Country of origin: China

Brand: Wadfow
Weight (Approx.) : 1 kg

Model No. : WGA1506
Cup Capacity : 600ml
Feed Type : Gravity
Nozzle Size : 1.4 mm
Pattern width : 180-230 mm
Air Inlet : 1.4 Inch (0.63 cm)
Operating Pressure : 2-3.5 Bar
Air Consumption : 3-4.5 CFM (85-127 LPM)
Max. Pressure : 4 Bar

The Wadfow 1.4 mm HVLP Air Spray Gun with 600 ml cup capacity (WGA1506) is a gravity‑feed finishing gun designed to lay down smooth, high‑gloss top coats on automotive panels, furniture, and other precision surfaces. It uses a 1.4 mm nozzle, HVLP technology, and a 600 ml cup to deliver fine atomization, wide fan control, and efficient paint transfer with minimal overspray.

Features

Standard 1.4 mm nozzle engineered for finishing / top coats and clear coats, delivering fine atomization and smooth surfaces.
600 ml gravity‑feed cup gives good spray duration while keeping the gun balanced and easy to handle.
HVLP operation with 2–3.5 bar working pressure reduces overspray and improves transfer efficiency compared with conventional high‑pressure guns.
Adjustable pattern width (approx. 180–230 mm) for efficient coverage on panels and larger surfaces.
Air consumption around 119–200 l/min, suitable for typical garage compressors when used with proper regulation.
Optional nozzle sizes (about 1.3–2.5 mm) available in some markets for different materials and viscosities.
Gravity design helps reduce material waste and simplifies cleaning after each job.

Accessories

Applications

Automotive refinishing : Finishing and clear coats on cars, motorcycles, scooters, and light commercial vehicle panels after base coat application.
Furniture and woodwork : High‑gloss, semi‑gloss, or matte finishing coats on doors, cabinets, tables, chairs, and decorative trim.
Metal fabrication and machinery : Final coats on frames, equipment housings, and fabricated parts where a uniform, attractive finish is required.
Architectural and household : Finishing coats on doors, window frames, grills, gates, and other home or shop fixtures.
General industrial finishing : Top coats and protective coatings on production parts, shop‑built structures, and fixtures.

Usage

Connect the spray gun to a clean, filtered compressed air supply and set inlet pressure to about 2–3.5 bar as recommended for HVLP operation.
Mix and strain the finishing coat or clear coat, thin to the manufacturer’s viscosity specification for a 1.4 mm nozzle, then fill the 600 ml cup.
Adjust fluid needle, fan pattern, and air volume using the control knobs while test spraying on a scrap surface until the desired pattern and flow are achieved.
Spray 15–20 cm from the work surface with smooth, even strokes and approximately 50% overlap between passes to achieve an even, defect‑free finish.
Between coats, keep the fluid tip clean; after finishing, empty the cup and flush the gun thoroughly with the appropriate thinner until internal passages are clean, then dry and store properly.
