Brand : Pilot

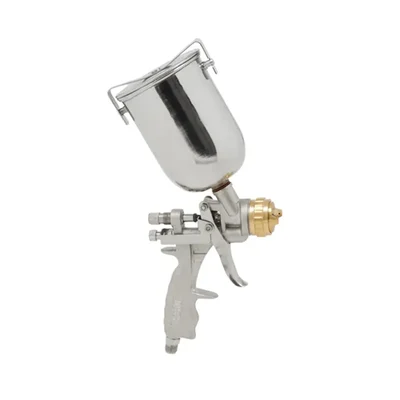

Pilot Hero 1.4mm 600cc Stainless Steel Spray Gun (PL-SG-HERO)
SKU : TI-PH-46134
MRP : ₹1200
₹699
42% OFF!
-
1
+
Get Extra ₹10 OFF on Prepaid Orders
Delivery By: Oct 24 - Oct 26
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Pilot Hero 1.4mm 600cc Capacity
Stainless Steel Spray Gun

Country of origin: India
Specification
  • Brand: Pilot
  • Weight (Approx.) : 1 kg
  • Cup Capacity : 600 ml
  • Model No. : PL-SG-HERO
  • Type of Feed : Gravity
  • Nozzle : 1.4mm
  • Operating Pressure : 2.0-3.5Bar
  • Air Consumption : 4.2-7.1cfm
  • Capacity : 600cc
  • Material : Stainless Steel

Description
The Hero Spray Gun 1.4mm 600cc is designed for professional-grade painting tasks, delivering precise and smooth finishes across various surfaces. With its stainless steel body and advanced gravity-feed system, this spray gun is a reliable and durable tool for painters, automotive specialists, and DIY enthusiasts.

Features

 :
  • Gravity Feed System : Ensures consistent material flow for superior control and reduced waste, making it ideal for detailed work.
  • 1.4mm Nozzle : Provides precise atomization, suitable for medium-viscosity paints like basecoats and clear coats.
  • Stainless Steel Construction : Resistant to corrosion and wear, ensuring durability and long-term performance.
  • 600cc Capacity : The spacious paint cup allows for uninterrupted spraying over larger areas, reducing the need for frequent refills.
  • Efficient Air Consumption : Operates effectively within an air consumption range of 4.2-7.1cfm, making it compatible with most air compressors.
  • Adjustable Operating Pressure : Performs reliably at a pressure range of 2.0-3.5Bar, allowing for tailored spraying based on the material and application.

Applications

 :
  • Automotive Refinishing : Perfect for applying basecoats, clear coats, and primers on cars, motorcycles, and other vehicles.
  • Furniture Painting : Achieves flawless finishes on wooden furniture, cabinets, and decorative pieces.
  • Industrial Coatings : Ideal for applying protective coatings on metal and machinery in industrial settings.
  • DIY Projects & Crafts : Great for hobbyists looking to paint models, home décor, or creative projects with precision.
  • Construction & Building Maintenance : Suitable for painting walls, ceilings, and large surfaces efficiently.

Usage

 :
Usage :

Setup & Preparation

Check the Equipment :
  • Ensure the spray gun, air hose, and compressor are compatible.
  • Inspect all parts for damage, wear, or clogging.

Select the Right Nozzle :
  • Choose the correct nozzle size for your material (paint, lacquer, etc.).
  • Refer to the manufacturer's chart for viscosity vs. nozzle size.

Mix the Material :
  • Properly mix and strain paint or coating to remove impurities.
  • Thin the material according to the product requirements and spray gun capacity.

Fill the Cup :
  • Pour the material into the gun’s cup. Do not overfill.
  • Secure the lid or cap tightly to avoid spills or pressure loss.

Connect to Air Supply :
  • Attach the air hose to the gun and compressor.
  • Set the air pressure (usually between 2.5–4 bar or 35–60 psi depending on the spray pattern and material).

Spraying Operation

Test First :
  • Spray on a test surface to adjust spray pattern, fluid flow, and fan control.
  • Fine-tune air and fluid knobs for desired atomization and coverage.

Maintain Correct Distance :
  • Hold the gun about 6–8 inches (15–20 cm) from the surface.
  • Move the gun parallel to the surface with smooth, even strokes.

Trigger Control :
  • Press the trigger in stages: air first, then material.
  • Release in reverse: material off first, then air.

Overlap Strokes :
  • Use 50% overlap for even coating without streaks or thin spots.

After Use – Shutdown Procedure
  • Turn off the compressor and release air pressure.
  • Empty any remaining paint from the cup.
  • Clean the spray gun immediately after use (see cleaning below).

Daily Maintenance (After Each Use)

Disassemble & Clean :
  • Remove the nozzle, needle, air cap, and cup.
  • Use recommended solvents to clean internal and external parts.
  • Use soft brushes or specialized spray gun cleaning kits.

Avoid Damage :
  • Do not use sharp objects or metal brushes that may damage components.
  • Do not soak plastic or rubber parts in aggressive solvents.

Lubricate :
  • Apply a few drops of spray gun lubricant to moving parts (trigger, needle packing) to maintain smooth operation.

Weekly or Regular Maintenance

Inspect Components :
  • Check seals, O-rings, and gaskets for wear or damage.
  • Replace worn-out parts immediately to avoid leaks or spray inconsistencies.

Check Air Passages :
  • Blow compressed air through the air channels to prevent blockages.

Test Spray Pattern :
  • Ensure consistent, even spray without spitting or pulsating.

Storage Guidelines
  • Store the spray gun in a protective case or clean area.
  • Keep away from moisture and dust to prevent corrosion and contamination.
  • Ensure all parts are dry and clean before storage.
