Brand : Smart Pack

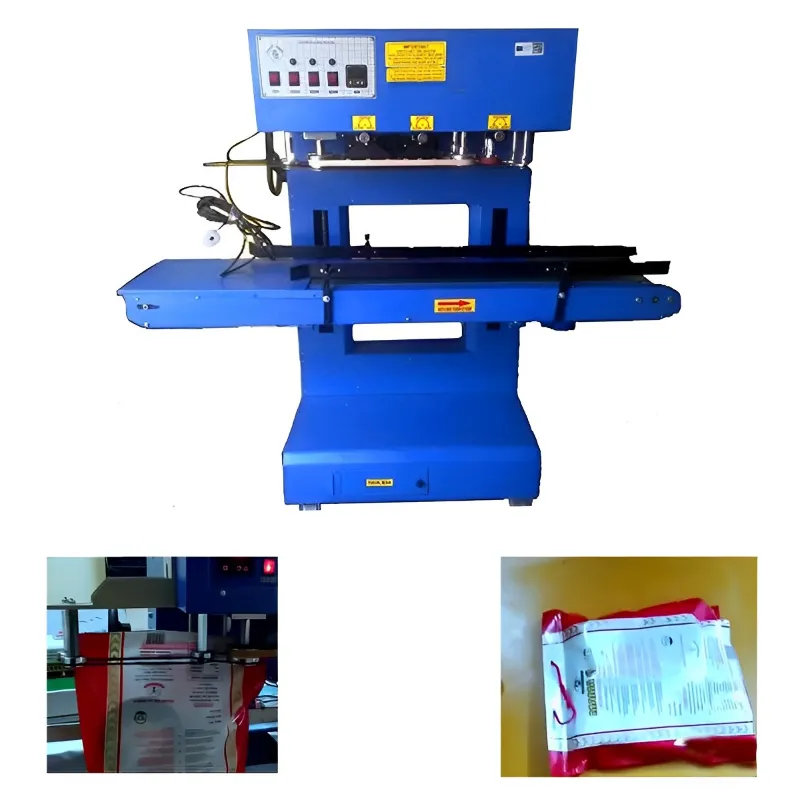

Smart Pack Band Sealer Capacity up to 20 Kg Pouch
SKU : SH-SP-20232861
MRP : ₹248640
₹230000
7% OFF!
-
1
+
Get Extra ₹3,450 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Band Sealer Capacity up to 20 Kg Pouch
Digital Temperature Controller
Country of origin: China
Specification
  • Brand: Smart Pack
  • Weight (Approx.) : 160 kg
  • Max Capacity : 20 Kg
  • Body Material : Mild Steel
  • Sealing Speed : 0-10 m/min.
  • Voltage : AC 220V, 50HZ
  • Temp. Range : 0-400oC
  • Dimension (L x W x H) : 52.5 x 154 x  151.5 cm
  • Weight : 160 Kgs (Approx.)

NOTE :
  • Conveyor color may vary.
  • Suitable for High Graded Pouches, just like laminated Pouches.
Description
This band sealer works continuously to seal  laminated pouches composed of high graded materials. Simple to use and appropriate for sealing little packages in the chemical, general retail, pharmaceutical, food, spice, and seed industries. It has 20 kg pouches of holding capacity, so it can save labor time and effort. This machine is able to increase packaging against heavy production.

Features

 :
  • Digital Temperature Controller
  • Variable Speed with DC drive
  • Easy Operations
  • Low Maintenance
  • Time saver.
  • Different types of High Graded pouches can be sealed.
  • Height Adjustable.

Usage

 :
Setup the Machine :
  • Place the band sealer on a stable, flat surface.
  • Connect the machine to a power source and switch it on.
Adjust Settings :
  • Temperature : Adjust the temperature control based on the material of the pouch you're sealing.
  • Sealing Speed : Set the sealing speed based on the production rate and pouch size.
Position the Pouch :
  • Place the open end of the pouch between the sealing bands.
  • Ensure the pouch is aligned properly for an even seal.
Start Sealing :
  • Press the start button to begin the sealing process.
  • The machine will heat the sealing bands and seal the open end of the pouch securely.
Monitor Sealing Process :
  • The machine will move the pouch through the sealing area, where it will be sealed as it passes through.
  • Ensure the seal is consistent, and the bag is properly sealed without any gaps.
Remove the Sealed Pouch :
  • Once the sealing is complete, remove the sealed pouch from the conveyor belt.
  • Inspect the seal for any issues (such as weak seals or incomplete seals).

Maintenance :
  • Clean Sealing Area : After each use, wipe down the sealing bars, conveyor belt, and surrounding areas to remove dust, food particles, or product residue.
  • Check Conveyor Alignment : Ensure that the conveyor belt is properly aligned. Misalignment can cause uneven sealing or damage to the bags.

Applications

 :
  • Food Packaging : Seals large pouches containing grains, flour, sugar, rice, spices, and other bulk food items. It is also used for sealing frozen vegetables, meat, and ready-to-eat meals.
  • Agricultural Products : Seals pouches containing agricultural products like seeds, fertilizers, and soil amendments.
  • Chemical Powders & Granules : Ideal for sealing large pouches containing powdered chemicals, detergents, or industrial products.
  • Pharmaceuticals : Seals large pouches for pharmaceutical products, such as tablets, capsules, and powders, ensuring tamper-proof seals.
