Brand : Pilot

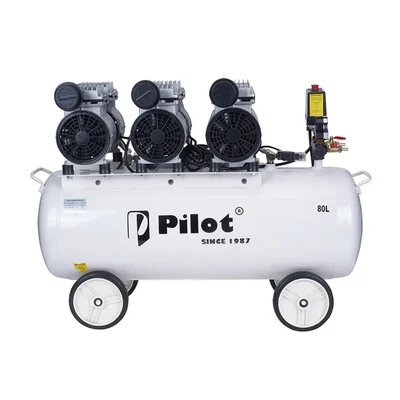

Pilot 80L Tank, 2250W (750Wx3) Power Oil-Free Silent Air Compressor (PL-OF5503)
SKU : TB-PI-45916
MRP : ₹28500
₹25599
10% OFF!
-
1
+
Get Extra ₹384 OFF on Prepaid Orders
Delivery By: Oct 25 - Oct 27
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Pilot 80L Tank, 2250W (750Wx3) Power
Oil-Free Silent Air Compressor
Country of origin: India
Specification
  • Brand: Pilot
  • Max. Pressure : 8 bar
  • Weight (Approx.) : 29 kg
  • Tank Capacity : 80 liters
  • Model No. : PL-OF5503
  • Power : 2250W
  • Tank : 80L
  • Max. Pressure : 8 Bar/115 PSI
  • Air Displacement : 150 LPM
  • Speed : 1440 RPM
  • Voltage : 220V/50Hz
Description
The PILOT Oil-Free Silent Air Compressor 80L is a high-capacity, low-noise air compressor designed for environments where clean and quiet air supply is essential. With a robust 2250W motor and a large 80L tank, it delivers consistent airflow for professional, industrial, and medical applications without oil contamination.

Features

 :
  • Powerful 2250W Motor : Offers high performance with continuous air delivery for demanding tasks.
  • Oil-Free Operation : Provides clean air, reduces maintenance, and eliminates the risk of oil contamination.
  • High Air Displacement - 150 L/min : Ensures steady airflow for a wide range of air tools and equipment.
  • Large 80L Air Tank : Enables extended runtime and efficient air storage with fewer recharge cycles.
  • Low Noise Design : Operates silently compared to traditional compressors—ideal for indoor and sensitive environments.
  • Max Pressure - 8 Bar / 115 PSI : Sufficient for most industrial, domestic, and medical applications.
  • 1400 RPM Speed : Ensures long-lasting performance and energy efficiency.
  • Voltage/Frequency : Standard 220V / 50Hz, compatible with most power supplies.

Applications

 :
  • Medical & Dental Clinics: Provides clean, oil-free compressed air essential for patient-safe operation of dental tools and lab equipment.
  • Workshops & DIY Projects: Perfect for powering pneumatic tools, paint sprayers, and airbrush kits in quiet residential or workshop environments.
  • Light Manufacturing & Assembly: Ideal for assembly lines and electronics manufacturing requiring low-noise and oil-free operation.
  • Automotive & Tyre Services: Supports tools for inflating tyres, painting, and cleaning components without oil residue.
  • Home & Garage Use: Silent and safe for indoor use, perfect for inflating, blowing dust, or operating small tools.

Usage

 :
Usage

Safety First
  • Read the user manual carefully before operating the compressor.
  • Always wear safety goggles, gloves, and hearing protection.
  • Use in a well-ventilated, dry, and dust-free area.
  • Keep away from flammable materials and heat sources.
  • Ensure the power supply matches the rated voltage: 220V/50Hz.

Setup
  • Place the compressor on a level and stable surface.
  • Ensure adequate space around the unit (minimum 30 cm clearance) for cooling.
  • Inspect the unit for transport damage or loose components before use.
  • Since it's oil-free, no oil filling or checking is required.

Starting the Compressor
  • Plug into a suitable electrical outlet (avoid extension cords if possible).
  • Turn ON the compressor using the power switch.
  • The motor will start running and pressurize the tank automatically.
  • It will stop automatically once the maximum pressure (usually around 8 bar) is reached.

Connecting Air Tools
  • Use an air hose with quick-connect fittings.
  • Adjust the outlet pressure using the regulator knob to match the tool’s requirements.
  • Monitor both tank pressure and outlet pressure on the gauges.

Operation Tips
  • Do not exceed the compressor’s duty cycle (typically 50%-70% for silent compressors).
  • Allow rest periods between cycles to prevent overheating.
  • Ideal for airbrushing, inflation, stapling, light cleaning, and small pneumatic tools.

Shutting Down
  • Switch OFF the power and unplug the compressor.
  • Release air pressure from the tank using the drain valve or safety valve.
  • Store in a clean, dry place away from direct sunlight.

Maintenance :

Daily Maintenance
  • Inspect for air leaks or any unusual noise or vibration.
  • Drain the condensation from the air tank using the drain valve located at the bottom.
  • Check that the air filter is not clogged or dirty.

Weekly Maintenance
  • Clean or replace the air intake filter if it shows signs of dust buildup.
  • Inspect fittings, hose connections, and safety valve for proper operation.
  • Wipe down the outer casing and tank with a dry cloth to remove dust or debris.

Monthly Maintenance
  • Inspect the power cord and plug for damage or wear.
  • Check the pressure relief valve by pulling it gently to ensure it vents correctly.
  • Tighten any loose nuts, bolts, or fittings.

Since It’s Oil-Free
  • No oil level checks or oil changes are needed.
  • This significantly reduces maintenance time and cost.
  • However, ensure the internal components stay cool by keeping the cooling vents clean.

Annual Maintenance
  • Have a technician perform a full inspection if used heavily or in industrial environments.
  • Inspect the tank interior for rust or corrosion (done by a professional if needed).
  • Replace worn filters, seals, or gaskets as required.

Storage Tips
  • For long-term storage:
  • Drain all air and moisture from the tank.
  • Clean the exterior and cover with a dust-proof cover.
  • Store in a dry, well-ventilated location.
  • Unplug from the power supply.
