Brand : Pilot

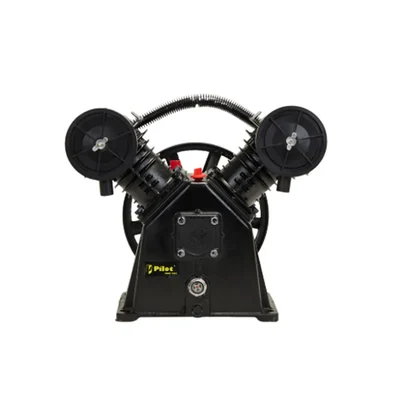

Pilot Big Heavy Duty 65 mm Double Cylinder 3 HP Belt Driven Air Pump (PL-2065B)
SKU : TB-PI-45917
MRP : ₹8150
₹7599
7% OFF!
-
1
+
Get Extra ₹114 OFF on Prepaid Orders
Delivery By: Oct 25 - Oct 27
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Pilot 3 HP Belt Driven Air Pump
Big Heavy Duty 65 mm Double Cylinder
Country of origin: India
Specification
  • Brand: Pilot
  • Max. Pressure : 8 bar
  • Weight (Approx.) : 15 kg
  • Tank Capacity : 5 liters
  • Model No. : PL-2065B
  • Power : 3HP
  • Max. Pressure : 8 Bar / 115 PSI
  • Cylinder (mm×piece) : 65 × 2
  • Air Displacement : 250 LPM
  • Type : Belt Driven
Description
The Pilot Air Pump 2065 Big Heavy Duty is built for robust performance, delivering high power and efficiency for demanding applications. With a focus on durability and strength, this pump is ideal for professionals who require reliable air support across a range of heavy-duty tasks.

Features

 :
  • High Power Output : Driven by a powerful 3HP motor, delivering consistent and reliable performance for heavy-duty needs.
  • Maximum Pressure : Capable of reaching up to 8 Bar/115 PSI, providing ample pressure for a wide range of demanding tasks.
  • Enhanced Air Flow : Equipped with a dual-cylinder (65mm x 2) setup that achieves an impressive air displacement of 250L/min, maximizing efficiency and airflow.
  • Built for Durability : Constructed with high-quality materials that ensure long-lasting resilience, even under rigorous use.
  • Heavy-Duty Design : Engineered for durability and ease of use, allowing seamless integration into industrial, construction, and workshop settings.

Applications

 :
  • Automotive Workshops : Excellent for tire inflation, running pneumatic tools, and equipment maintenance, enhancing productivity in busy garages.
  • Industrial and Construction Sites : Provides strong air pressure for powering heavy-duty tools such as nail guns, impact wrenches, and drills.
  • Manufacturing and Fabrication : Supports intensive machinery operations, ensuring smooth performance for industrial-grade applications.

Usage

 :
Usage :

Safety First
  • Always read and understand the user manual before operation.
  • Wear appropriate safety gear: goggles, gloves, and hearing protection.
  • Use the air pump in a well-ventilated, dry area, away from flammable materials.
  • Ensure all guards (e.g., belt guard) are in place before starting.

Setup
  • Mount the pump securely on a flat, vibration-free surface.
  • Ensure the pump is aligned correctly with the motor using the belt drive.
  • Check oil level in the crankcase (if oil-lubricated) before starting.
  • Verify that all bolts, fittings, and connections are tight and secure.

Starting the Pump
  • Connect the pump to a compatible 3HP electric motor with the correct pulley alignment and belt tension.
  • Turn ON the motor and allow the pump to build pressure gradually.
  • Monitor the pressure gauge if connected to a tank or compressor system.

Operating the Pump
  • Ensure the belt tension is optimal during operation to prevent slippage or wear.
  • Operate the pump within its rated pressure and duty cycle.
  • Avoid continuous operation beyond its designed cycle; allow cooling periods.
  • Use with a compatible air tank and regulator for controlled output pressure.

Shutting Down
  • Turn off the motor powering the pump.
  • Release any residual pressure from the system.
  • Disconnect power if performing maintenance or inspection.

Maintenance :

Daily Maintenance
  • Check oil level and refill if necessary (use compressor-grade oil like SAE 30).
  • Inspect for leaks: air or oil.
  • Listen for unusual noises indicating mechanical wear or looseness.
  • Drain any moisture from the connected air tank.

Weekly Maintenance
  • Clean the air filter: use compressed air to remove dust or replace if heavily soiled.
  • Inspect belt condition: look for cracks, frays, or signs of wear.
  • Check bolt tightness: especially mounting bolts and pulley fasteners.

Monthly Maintenance
  • Inspect pulley alignment and belt tension; adjust if needed.
  • Check oil quality and color: if dark, contaminated, or emulsified, replace it.
  • Examine the intake and exhaust valves for any blockage or buildup.

Oil Change (Every 3 Months or 100 Hours)
  • Warm up the pump for 2–3 minutes to thin the oil.
  • Turn off and unplug the power source.
  • Remove the oil drain plug and drain oil into a container.
  • Refit the plug securely and refill with fresh compressor oil.
  • Avoid overfilling—use the sight glass or dipstick to check the correct level.

Annual Maintenance
  • Deep clean the pump’s cooling fins to ensure proper heat dissipation.
  • Inspect for internal wear, corrosion, or damage (by a technician if needed).
  • Replace worn-out belts, gaskets, or filters.
  • Have a technician perform a full operational test if used regularly in industrial environments.

Storage Tips
  • If not in use for a long time : Drain all oil and moisture, Cover the pump to protect from dust, Store in a dry, cool place away from corrosive materials, Disconnect from the motor or power source.
