Brand : Pilot

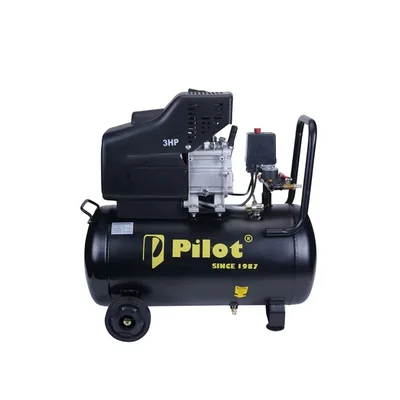

Pilot 50L Tank, 3 HP Motor Double Output Direct Driven Air Compressor (PL-50)
SKU : TB-PI-45908
MRP : ₹14500
₹11999
17% OFF!
-
1
+
Get Extra ₹180 OFF on Prepaid Orders
Delivery By: Oct 22 - Oct 24
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Pilot 50L 3 HP Direct Driven Air Compressor
Double Output, 8 Bar Max. Pressure
Country of origin: India
Specification
  • Brand: Pilot
  • Max. Pressure : 8 bar
  • Weight (Approx.) : 24 kg
  • Tank Capacity : 50 liters
  • Model No. : PL-50
  • Power : 3HP
  • Tank Capacity : 50L
  • Max. Pressure : 8Bar/115PSI
  • Air Displacement : 256L/min
  • Speed : 2850 RPM
  • Voltage : 220V/50Hz
Description
The Pilot Direct Driven Air Compressor combines efficiency and power, featuring a robust 3HP motor and a 50L tank. This compressor is designed to meet the demands of various medium-duty applications, ensuring reliability and performance.

Features

 :
  • Powerful Operation : The 3HP motor provides an air displacement of 256L/min for effective performance.
  • Sturdy Design : Constructed with high-quality materials to ensure longevity and reliability.
  • Safety Auto Cut-Off : Automatically shuts off at 8 Bar/115 PSI, protecting against over-pressurization.
  • Smooth Performance : Runs at 2850 RPM, offering consistent and efficient air delivery.
  • Adequate Capacity : The 50L tank allows for prolonged use, minimizing the need for frequent refills.

Applications

 :
  • Automotive : Ideal for tire inflation, running pneumatic tools, and performing maintenance tasks.
  • Construction & Carpentry : Perfect for operating nail guns, impact wrenches, and other air-powered tools.
  • Industrial Settings : Suitable for cleaning, airbrushing, and servicing machinery.

Usage

 :
Usage Instructions :

Safety First
  • Read and understand the user manual before operation.
  • Always wear safety gear: goggles, gloves, and hearing protection.
  • Operate in a well-ventilated, dry area away from flammable materials.

Setup
  • Place the compressor on a flat, stable surface.
  • Ensure the power supply matches the motor rating (usually 230V, 50Hz single-phase).
  • Check oil level (if oil-lubricated) before starting.
  • Inspect for any transport damage or loose fittings.

Starting the Compressor
  • Connect to the power source.
  • Turn ON using the pressure switch or ON/OFF button.
  • Allow the tank to pressurize (watch the pressure gauge).
  • The motor will stop automatically once the cut-out pressure is reached.

Connecting Tools
  • Use an appropriate air hose rated for the pressure.
  • Connect air tools using quick-connect fittings.
  • Adjust the outlet pressure using the regulator knob to match the tool's required pressure.

Operation
  • Monitor pressure gauges during use
  • Tank pressure : Total pressure stored.
  • Outlet pressure : Pressure supplied to the tool.
  • Avoid continuous operation beyond the duty cycle (typically 50%-75% for direct drive).
  • Let the unit rest between cycles to avoid overheating.

Shutting Down
  • Turn off the compressor.
  • Disconnect power.
  • Release pressure from the tank via the drain valve or safety valve.
  • Store in a clean, dry area.

Maintenance :

Daily Checks
  • Inspect for air or oil leaks.
  • Drain condensation from the air tank via the drain valve (bottom of the tank).
  • Check oil level (if applicable).
  • Ensure the air filter is clean.

Weekly Maintenance
  • Clean the air filter with compressed air or replace if dirty.
  • Inspect safety valve operation - pull to check it releases pressure.

Monthly Maintenance
  • Check oil quality (for oil-lubricated models):
  • If dark or contaminated, replace.
  • Inspect power cord and connections for damage.
  • Tighten loose nuts, bolts, or fittings.

Oil Change (Every 3 Months or ~100 hours)
  • Warm up the compressor for 2-3 minutes.
  • Turn off and unplug.
  • Remove the oil drain plug and drain into a container.
  • Refit the drain plug.
  • Refill with compressor-grade oil (SAE 30 or equivalent) to the correct level.
  • Do not overfill.

Annual Maintenance
  • Inspect pressure switch and motor for wear.
  • Clean cooling fins and fan to ensure proper airflow.
  • Inspect tank for internal corrosion (done by a technician if needed).

Storage Tips
  • Store in a dry, clean location.
  • If storing long-term : Drain all air and moisture, Cover to prevent dust ingress, Disconnect from power.
