Brand: Generic (Imported)

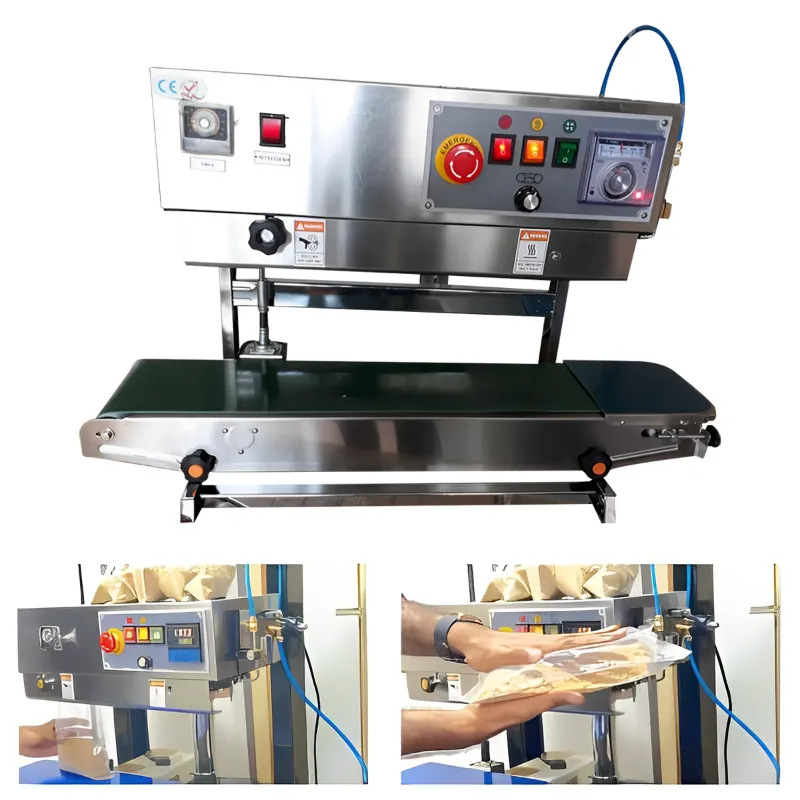

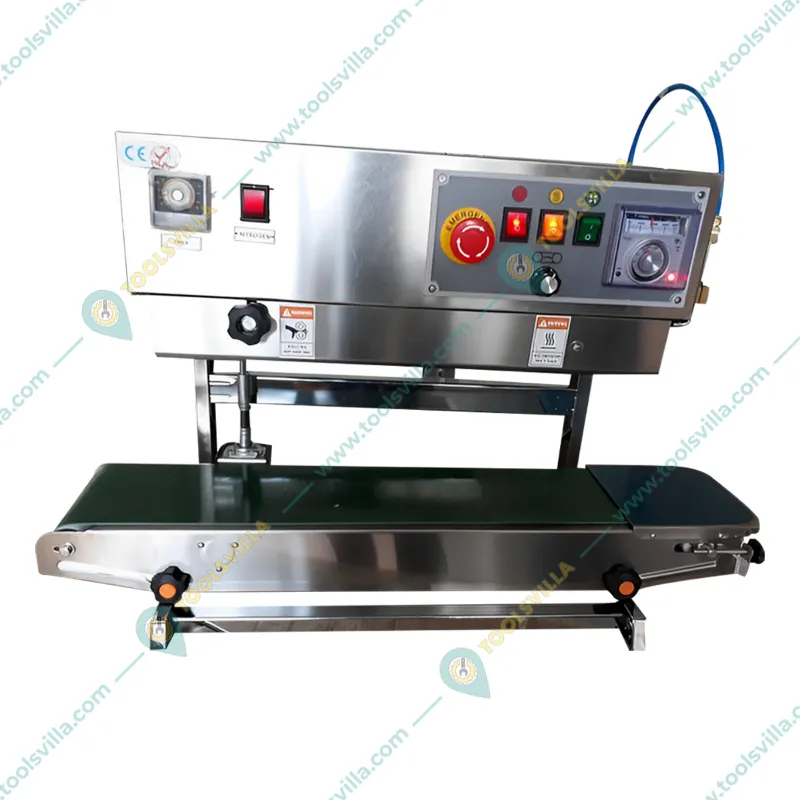

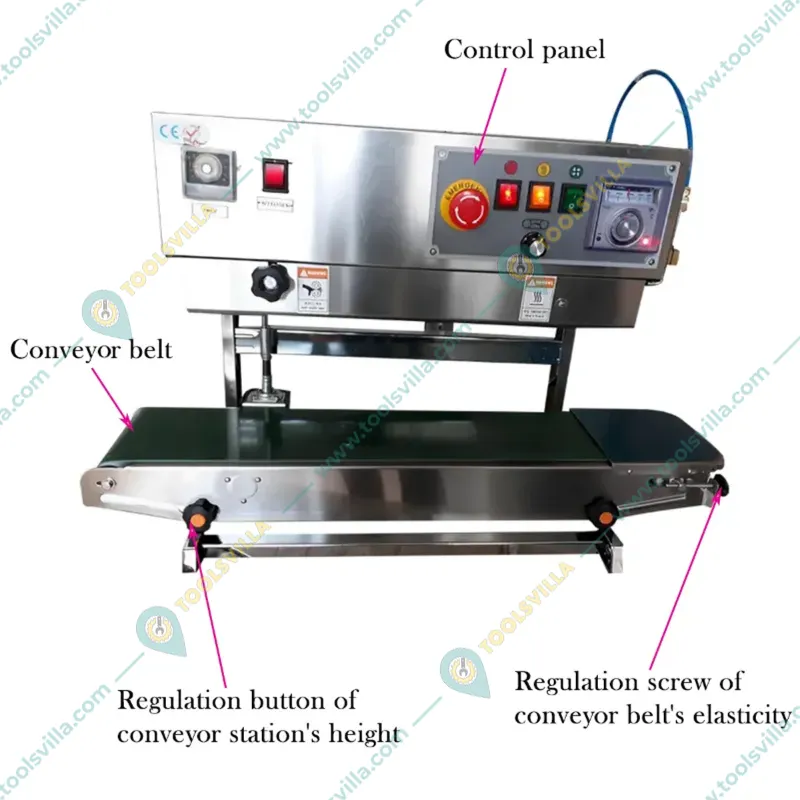

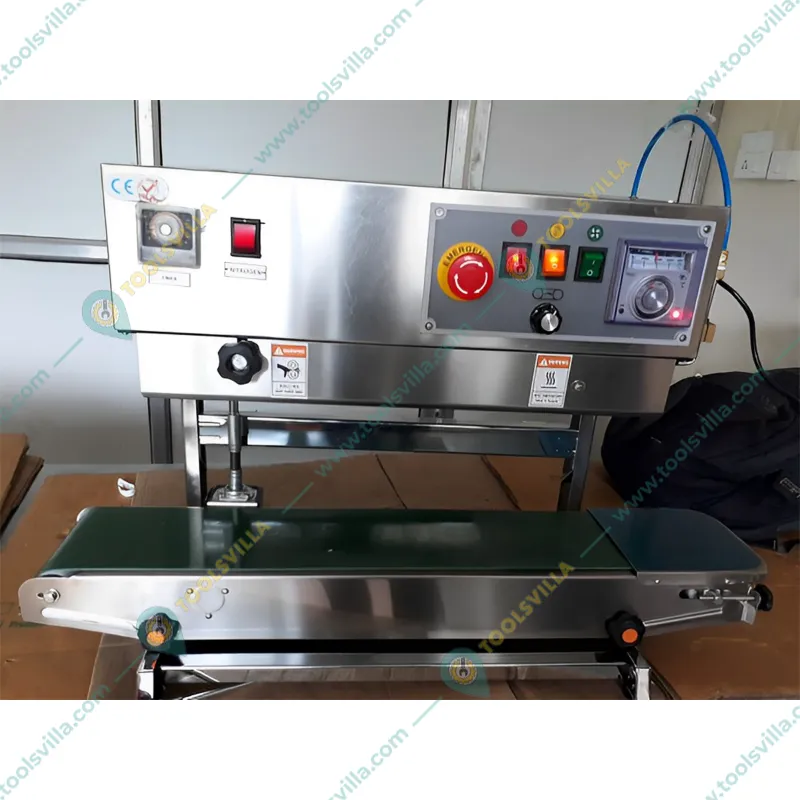

Heavy Duty 3 Kg SS Vertical Continuous Band Sealer with Nitrogen Flush 500W
SKU: SD-SP-20233725
₹23999 (Including GST)
Get extra ₹360 Discount (On Checkout)
Delivery By: May 29 - May 31
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
SS Vertical Continuous Band Sealer with Nitrogen Flush
Sealing width 6-12 mm
Max conveyor load 3 Kg
Country of origin: China
Description
This machine is used for best quality sealing high graded pouches, such as laminated pouches with nitrogen filling to keep the product fresh for an long period of time. This technology is mostly used by all types of food companies to maintain their huge production and sales cycle. This type of sealer is commonly used in industries where the preservation of product freshness and the prevention of oxidative reactions are crucial, such as in the packaging of food products, pharmaceuticals, and other sensitive materials. It has a maximum transport weight of 3 kg and 0–12 m/min sealing speed, which saves labor effort. This machine may increase packaging despite excessive production.
Features
:- Easy to operate.
- Premium quality heavy duty machine.
- Fast packing machine.
- Time saver.
- Different types of packets can be sealed.
- Nitrogen flushing system
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 14 kg
- Body Material : Stainless Steel
- Power Source : Electric
- Panel Type : Analog
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 500 W
- Loading Capacity : 3 Kg
- Sealing Speed : 0-12 m/min
- Sealing Width : 6-12 mm
- Temperature Range : 0-3000C
- Max Transport Weight : 3 Kg
- Package Material : High Graded pouches, such as laminated pouches
- Weight : 14 Kg (Approx.)
NOTE :
- Conveyor color may vary.
- Suitable for High Graded Pouches, just like laminated Pouches.
Applications
:- Chemical Industry : Packaging of chemicals that are sensitive to moisture or air, such as detergents, fertilizers, and other powdered substances.
- Consumer Products : Packaging beauty products (e.g., creams, lotions) that require a nitrogen flush to maintain freshness and prevent contamination.
- Food Packaging : Prevents the degradation of coffee beans, ground coffee, and tea leaves by maintaining a nitrogen-rich environment, which helps preserve aroma and flavor.
- Pharmaceutical Packaging : Preserving the potency and stability of pharmaceutical products by protecting them from moisture and oxygen during storage.
Usage
:- Preparation of Equipment : Ensure that the SS Vertical Band Sealer is properly set up and connected to a nitrogen gas supply. Check all connections for leaks.
- Adjusting Settings : Set the temperature and sealing time on the control panel according to the material being sealed.
- Nitrogen Flush Setup : Connect the nitrogen flush system to the sealer. This typically involves attaching a nitrogen gas line to the designated inlet on the sealer. Adjust the nitrogen flow rate as recommended.
- Loading Packages : Place your product in the packaging material and position it correctly at the entrance of the sealer. Ensure that there are no obstructions and that the film is aligned properly for an effective seal.
- Initiating Sealing Process : Start the sealing process by activating the machine. The vertical band sealer will pull the package through, applying heat and pressure while simultaneously flushing with nitrogen.
- Post-Sealing Inspection : Once sealed, inspect packages for proper seals and check if they are free from air pockets.
Maintenance :
- Check Temperature and Pressure Settings : Ensure they are within the recommended range.
- Inspect Sealing Jaws : Look for any damage or wear and tear.
- Clean Sealing Jaws : Use a soft cloth and a non-abrasive cleaning solution.
- Clear Debris : Remove any packaging material from the machine to prevent jams.
