Conveyor Loading 10 Kg
6.5 kW Power Consumption
Brand : Generic (Imported)

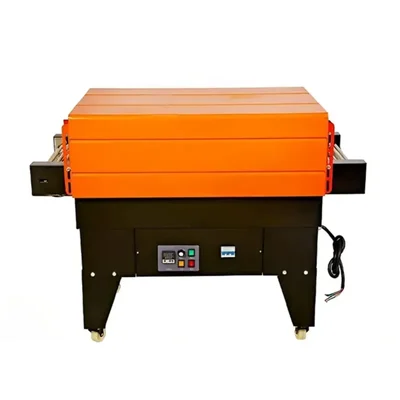

Shrink Tunnel Machine for Bottle, Jar and Box Shrinking
SKU : SH-SP-20232720
MRP :
₹58280
-
1
+
758 people have viewed this recently
Delivery By: Aug 5 - Aug 7
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Shrink Tunnel Machine Used in Bottle Shrinking
Country of origin: China
Specification
- Brand: Generic (Imported)
- Weight (Approx.) : 90 kg
- Voltage : 220 V
- Frequency : 50 Hz
- Power Consumption : 6.5 kW
- Conveyor Loading : 10 Kg
- Speed : 0-10 M/Min
- Tunnel Size (L x W x H) : 900 x 450 x (50-250) mm
- Dimension (L x W x H) : 120 x 65 x 110 cm
- Weight : 90 Kgs (Approx)
Description
This shrink tunnel machine is a packaging equipment that uses heat to shrink film around items. It consists of a heated tunnel mounted over a conveyor system, with shrink film loosely attached to the products. The heat shrinks the film firmly around the object, providing protection and enhancing appearance.
Features
:- Easy Operation : Simple working mechanism that requires minimal operator training.
- Fast Warm Up : Heats up quickly once turned on.
- Adaptable Conveyor Speed : Variable speeds of 0-10 m/min.
- Adjustable Temperature : Adapts to different types and thicknesses of shrink film.
- Industrial-Grade Results : Professional system that is easy to use and generates consistent quality packages.
Applications
:- Product Packaging : They are widely used for packaging bottles, cans, and other containers where a tight seal is required.
- Labeling : Shrink tunnels can be utilized to apply shrink sleeves or labels that conform tightly to the shape of the product.
- Bundling : These machines can bundle multiple products together using shrink film, providing stability and ease of handling during transportation.
- Food Industry : In food packaging, shrink tunnels help preserve freshness by sealing products in airtight packaging.
- Cosmetics and Pharmaceuticals : They are also employed in the cosmetics and pharmaceutical industries for tamper-evident seals.
Usage
:1. Setup the Machine :
- Place the thermal shrink packaging machine on a stable, flat surface.
- Ensure that the machine is connected to a power source.
2. Prepare the Product :
- Place the product you want to package into a suitable shrink film bag.
- Make sure the bag is large enough to accommodate the product with some extra space for sealing.
3. Adjust Settings :
- Turn on the machine and adjust the temperature settings according to the type of shrink film being used.
4. Load Products :
- Place the prepared product with the shrink film bag onto the machine’s conveyor for sealing.
- Ensure that products are spaced adequately to allow for proper sealing and shrinking.
5. Start Operation :
- Activate the machine by pressing the start button.
- Once sealed, products will move through the heating chamber where hot air will cause the film to shrink tightly around each item.
6. Collect Finished Products :
- Once packaged, collect your finished products from the output area of the machine.
Maintenance :
- Inspect the machine daily for any signs of wear or damage.
- Monitor the shrink tunnel temperature to avoid overheating, which can cause burn holes in the film.
