Brand : Sonic
Sonic 1/4 Inch 2-in-1 Air Blow & Vacuum Gun Kit (SA-5505B)
SKU : SI-AV-47008
MRP : ₹4800
₹3699
23% OFF!
-
1
+
Get Extra ₹55 OFF on Prepaid Orders
Delivery By: Nov 8 - Nov 10
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

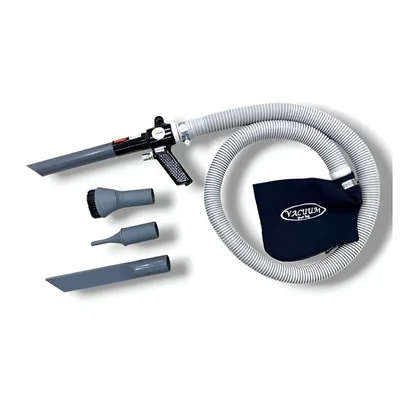

Sonic 1/4 Inch 2-in-1 Air Blow & Vacuum Gun Kit
Air Inlet 1/4" (6mm)


Country of origin: Taiwan, Province of China
Specification
  • Brand: Sonic
  • Weight (Approx.) : 700 gm
  • Model No. : SA-5505B
  • Air Inlet : 1/4" (6mm)
  • Min. Air Hose : 5/16" (8 mm)
  • Air Consumption : 14.85 CFM (420 L/min)
  • Overall Length : 5.7" (145 mm)
  • Net Weight : 1.54 LBS (0.70 KGS)
Description
The Sonic SA-5505B is a 2-in-1 air blow and vacuum gun kit designed for pneumatic cleaning operations in tight spaces and work environments where dust, chips, sawdust, iron scrap or glass shards need clearing. It features a composite (or plastic) gun body with a switchable function: you can blow off debris or vacuum it up.

Features

 :
  • Dual-mode operation : Both blow (air discharge) and vacuum (air suction) functions in one tool.
  • Composite gun body (lightweight construction) designed for operator comfort and access into tight quarters.
  • Included flexible hose (12″ length) and extension tube to clear dust or debris from corners or less-accessible areas.
  • Effective for different materials : sand, iron chips, sawdust, stones, glass chips.
  • Air inlet : ¼″ PT connection. Min hose size: 5/16″ I.D. Some listings show air consumption figures: e.g., about 3.36 cfm in one mode.
  • Suitable for removing particles typically up to about 5 mm in size (in vacuum mode) according to vendor data.
  • Compact size for work in constrained spaces (ideal for vehicle interiors, tooling zones, etc.).

Applications

 :
  • Automotive service/repair : When working in vehicle interiors, under dashboards, around consoles, or on auto-media installations where debris (e.g., trimmed carpet fibres, glass shards, iron filings) must be cleared. Because it can both blow and vacuum, it’s flexible for cleaning and clearing work.
  • Industrial machining/metal-working : After cutting, grinding or drilling, there are often iron chips, metal shavings or dust that must be removed. The vacuum mode helps collect rather than simply blowing debris around.
  • Woodworking/shops : Sawdust, wood chips and other lighter debris can accumulate; vacuum/blow mode is useful for clearing benches, machines, or tight corner recesses.
  • General maintenance & housekeeping : In workshops, production lines, assembly areas, the SA-5505B can serve as a cleaning tool to improve safety (by removing debris), ensure quality (by clearing chips before assembly) and maintain equipment.
  • Tight-access areas : Because of its compact design and extension hose, areas like inside panels, crates, molds, behind machinery become accessible.

Usage

 :
Usage :
  • Set up the air supply : Connect your air line to the gun’s ¼-inch inlet. Ensure the air compressor/regulator is set to the manufacturer’s recommended working pressure (check spec sheet for working pressure).
  • Connect hose and accessories : If vacuum mode or extension tubing is to be used, attach the flexible hose and extension tube as required.
  • Select mode : Switch between blow or vacuum mode as required. For blowing: direct the nozzle towards debris and squeeze the trigger/lever. For vacuum: direct the hose/extension toward debris and activate suction.
  • Move methodically : In blow mode, sweep across the surface from a safe angle (so debris is blown away from operator). In vacuum mode, guide the nozzle or hose slowly over the area to capture particles.
  • Clear debris collection : In vacuum mode, ensure the collection bag or container is emptied periodically so suction remains effective.
  • Safety precautions : Wear appropriate PPE (safety glasses, hearing protection if noise is high, dust mask if aerosolized particles). Ensure air line is free of oil or moisture, and that connections are secure.
  • Post-use : After use, disconnect air supply, empty vacuum bag/container of collected debris, store hose and accessories neatly.

Maintenance :
  • Check air supply quality : Use clean, dry, regulated compressed air. Remove moisture, oil, contaminants from air line to avoid internal damage or clogging.
  • Inspect hose and fittings : Before each use check for cracks, leaks or loose fittings. Replace damaged hose to maintain suction/blow performance and safety.
  • Clean the vacuum chamber/bag : After collection of debris (especially abrasive chips or powder), empty and clean the bag or container to avoid blockage and loss of suction.
  • Inspect nozzle/extension : Ensure the nozzle or extension tube is free of buildup or blockages. Blockage reduces suction/blow efficiency and may cause increased air consumption or wear.
  • Lubrication (if required) : Although many blow/vacuum guns are simple in construction, check the manufacturer manual for any lubrication points or periodic check of trigger mechanism.
  • Store properly : After use, disconnect from air supply, bleed off air pressure, coil the hose without sharp bends, store the gun in a dry, clean location.
  • Wear part replacement : If the trigger becomes loose, hose becomes worn, coupling leaks or suction drops significantly, replace the worn parts promptly.
  • Periodic performance check : Test the blower/suction capacity occasionally to ensure the tool is functioning within expected performance. If performance drops, check for leaks, blockages or compressor issues.
  • Safety inspection : Ensure that any nozzle or blowing mode meets safe dead-end pressure guidelines (so no risk of hazardous pressure if the nozzle is blocked) and keep the gun away from pointing at personnel.
