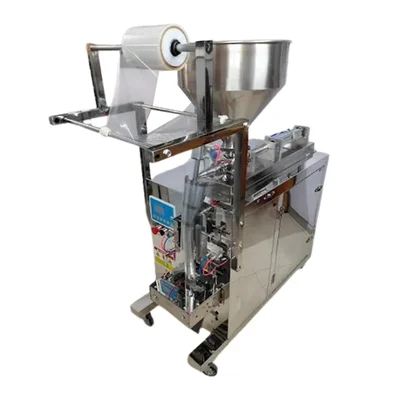

Automatic 10 ml to 100 ml Paste Filling and Sealing Machine with Three Side Sealing with Eye Mark Sensor(Side Seal)

• Sealing Type : Side Seal
• Pouch Capacity : 10ml - 100 ml
• Voltage : 110 V or 220 V
• Power : 900 Watt
• Bag Size : 0 - 80 mm (W), 0-50 mm (L)
• Film Thickness : 0.5 mm - 0.8 mm
• Precision : 1 ml
• Product Dimension : 540 x 1170 x 1303 mm ( 54 x 11.7 x 13.03 cm )

Features

• Precision Piston Filler: Uses a volumetric piston pump that can be finely tuned to dispense exact amounts between 10 ml and 100 ml with minimal margin of error.
• Intelligent Eye Mark Sensor: A high-sensitivity photoelectric tracker that aligns the cutting blade with the printed design on the film for perfect branding placement.
• Three-Side Seal Geometry: Configured to seal the bottom and two vertical sides, creating a sturdy, "folder-style" sachet that is easy to display and tear.
• Adjustable Heat Sealing: Independent temperature controllers for horizontal and vertical seals, allowing for the use of various laminate materials .
• Stainless Steel  Build: All contact parts are made of high-grade stainless steel to ensure anti-corrosion and compliance with food and pharma safety standards.

Applications

• Food & Beverage: Perfect for single-serving condiments like tomato ketchup, mayonnaise, mustard, and honey.
• Personal Care: Ideal for travel-sized hair gels, shampoos, conditioners, and liquid soaps.
• Cosmetics: Used for beauty samples including face creams, serums, lotions, and sunblock.
• Pharmaceuticals: Packaging of medicinal syrups, antiseptic gels, and ointment pastes.
• Industrial Chemicals: Dispensing precise amounts of grease, lubricants, or liquid adhesives into sachets.

Usage

• Film Loading: Mount the film roll and thread it through the tension rollers and the forming collar.
• Sensor Alignment: Align the eye mark sensor with the registration mark on the film to calibrate the cutting point.
• Hopper Loading: Fill the stainless steel hopper with the paste and activate the heater or stirrer if the product requires it for flow.
• Parameter Input: Enter the filling volume (e.g., 50 ml) and set the sealing temperatures based on the film thickness on the PLC screen.
• Full Production: Start the automatic mode to begin the continuous cycle of forming, filling, sealing, and batch-coding.
