Brand: Generic (Imported)

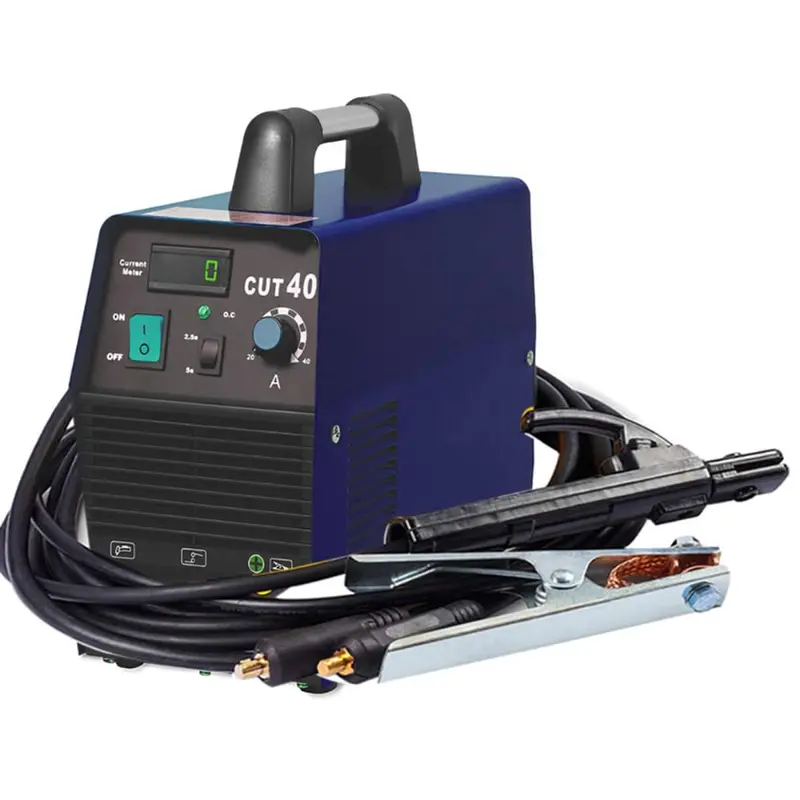

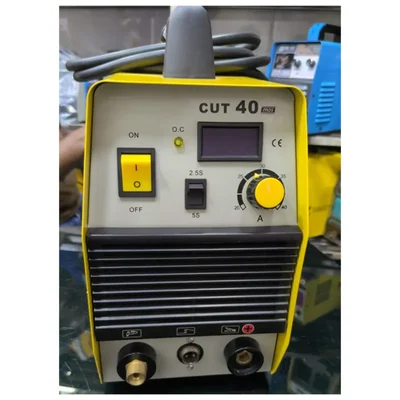

Classic Cut 40 Single Phase Welding Machine With Mosfet Technology, AC230V
SKU: ST-TCWM-133
3 people have bought this recently
Delivery By: Dec 15 - Dec 17
MRP : ₹23500 ₹18799
20% OFF!
3 people have bought this recently Delivery By: Dec 15 - Dec 17 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹18799 (Including GST)
MRP : ₹23500
20% OFF!
Get Extra ₹282 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
40 Amp Single Phase Mosfet Welding Machine
No Load Voltage 260 V
Frequency 50 Hz
CUT-40
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 8 kg
- Output Current Range : 40 amp
- Technology : MOSFET
- Model No. : CUT-40
- Base Material : Carbon steel ,Stainless steel, Low-alloy steel
- Input Power Supply : AC230V±10%, 1ph
- Frequency : 50 Hz
- Rated Input Current : 9 A
- Rated Input Power : 6.5 kVA
- No Load Voltage : 260 V
- Current Adjust Range : (15-40) A
- Duty Cycle : 60 %
- Efficiency : 85 %
- Arc starting : HF
- Power Factor : 0.93
- Insulation Class : H
- Protection Grade : IP23
- Machine Cooling Mode : Air Cooled
- Cutting Thickness : (1-5) mm
- Cutting pressure : (2-3) kg/cm
- Output characteristics : CC
- Switching Device : MOSFET
Description
The Classic Cut 40 Single Phase Welding Machine features advanced Mosfet technology, operating at AC230V. This compact and efficient machine offers a cutting current range of 20-40 amps, making it suitable for various materials such as carbon steel and stainless steel. With a duty cycle of 60%, it ensures reliable performance for both professional and DIY applications, delivering precise cuts with ease.
Features
:- Inverter technology.
- Low cost cutting with high stable and stiff arc, which brings you smooth cutting and small cutting angle.
- Pilot Arc Start increases cutting efficiency
- Conveniently and quickly cut metal plate.
- Built-in air filter and regulator.
- Equipped with over/under voltage, as well as insufficient compressor air pressure protection.
- Smooth cutting surface with high cutting speed.
- Widely used in cutting carbon steel, stainless steel, copper, cast iron and aluminium, etc.
- Strengthened and protection on cutting torch connector largely enhances operator's safety.
- International Standard IEC 60974-1& IS0 9001:2015 Certified
Applications
:- Maintenance
- Repair
- Decoration
- Construction
- Steel or Stainless Steel Processing
- Light / Heavy Fabrication
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
Usage
:Usage Guidance (How to Use) :
- Place the machine on a stable, dry surface near the 230 V single-phase supply. Ensure proper ventilation around it.
- Connect the power cord to the proper rated AC 230 V outlet (make sure the supply is stable and within specification).
- Attach the earth clamp (ground) securely to a clean metal surface of the workpiece or work-table.
- Mount the electrode holder and select a suitable electrode for the work at hand (choose the correct diameter and type for the material).
- Switch on the machine and set the welding current according to electrode size and thickness of the workpiece. For example selecting near 30-40 A for moderate thickness, lower for thinner.
- Strike the arc – use correct angle, travel speed and maintain arc length appropriate for the job.
- Monitor the machine: if the duty cycle warning / over-heat indicator comes on, pause and let the machine cool.
- After finishing work, turn off the machine, disconnect power, clean up cables and store the machine in a safe, dry spot.
Maintenance Guidance :
- Regularly clean the exterior of the machine and ensure ventilation vents are free from dust or debris. Blocked vents reduce cooling efficiency.
- Frequently inspect the cables (power cord, earth clamp cable, electrode holder cable) for wear, damage, or loose connections. Replace if needed.
- Check the earth clamp contact surface – ensure strong connection to work-piece for safe and efficient welding.
- Ensure the machine is not subjected to prolonged use beyond duty cycle – avoid overheating which can shorten lifespan.
- Store in a dry environment to avoid moisture ingress which may degrade insulation or internal electronics.
- If weld quality deteriorates (weak arc, uneven appearance), inspect electrode type, current setting, work-piece surface, and check machine internals if comfortable or call qualified technician.
- Ensure periodic inspection/service of internal components (cooling fan, inverter board) if machine is used heavily.
