Brand: Bluepoint

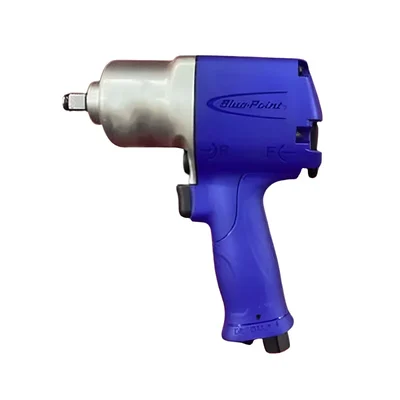

Bluepoint 1/2 Inch Composite Air Impact Wrench, Forward- 6900RPM, Backward-7000RPM (AT570)
SKU: TI-XP-46240
Delivery By: Dec 9 - Dec 11
MRP : ₹19199 ₹15999
17% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹15999 (Including GST)
MRP : ₹19199
17% OFF!
Get Extra ₹240 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Bluepoint 1/2 Inch Composite Air Impact Wrench
Forward- 6900RPM, Backward-7000RPM
Country of origin: China
Specifications
- Brand: Bluepoint
- Weight (Approx.) : 1.8 kg
- No-Load Speed : 6900 rpm
- Square Drive Size : 0.5
- Air Pressure : 6.3 bar
- Max. Torque : 773 nm
- Model No. : AT570
- Drive Size : 1/2 Inch
- Max. Torque : 773 Nm
- Free Speed : 6900RPM (F), 7000RPM (R)
- Blows per minute : 1050
- Air Consumption : 5.0 CFM (F), 5.3 CFM (R)
- Air Inlet : 1/4"-18 NPT
- Recommended Hose Size : 3/8 Inch
- Vibration Level : 6.08 m/s²
- Sound Level : 95 dBA
- Length : 184 mm
Description
Bluepoint AT570 is a 1/2 inch composite air impact wrench designed for heavy-duty automotive and truck service, delivering up to about 773 N·m of maximum torque with a twin-hammer mechanism and free speeds of approximately 6900 RPM in forward and 7000 RPM in reverse. It combines a powerful reverse-bias motor with a lightweight composite housing and aluminium nose to provide strong breakaway torque while reducing user fatigue in professional workshops.
Features
:- Shot Peen Anvils for improved durability
- Reverse Bias motor provides additional breakaway torque
- 3 position regulator to control power
- One handed forward/reverse lever for user convenience
- Composite housing with aluminum nose combine to deliver a durable, lightweight and balanced unit
- Twin hammer impact mechanism delivers hard hitting blows to quickly remove stubborn fasteners
Applications
:- Automotive and light truck workshops : Lug nuts (with proper torque procedure), suspension, steering, engine mount, and drivetrain fasteners.
- Truck and bus maintenance: Chassis, axle, brake, and structural fasteners that need strong but manageable torque.
- Industrial and plant maintenance: Machinery assembly/disassembly, flange bolts, and general M10–M18 fasteners.
- Fleet and service centres: All-round high-torque 1/2 inch impact for busy bays handling mixed vehicle and equipment work.
Usage
:- Connect to a clean, regulated compressed-air supply (about 6.2–6.3 bar / 90 psi at the tool) with a 3/8 inch hose and suitable couplers, ensuring the compressor can supply the required CFM.
- Fit an impact-rated 1/2 inch socket, seat it fully on the fastener, set the three-position regulator and select forward or reverse with the one-handed lever.
- Use short trigger bursts and the lowest effective power setting, especially when tightening; always verify critical fasteners with a calibrated torque wrench.
- Avoid prolonged free-running at full speed without load; lubricate regularly with a few drops of air-tool oil in the inlet, keep air lines drained of moisture, and inspect hoses and fittings.
- After use, disconnect air, wipe the tool clean, and store it in a dry, protected place; a vinyl boot is often available to protect the housing in harsh environments.
