Continuous 18" inch (450mm) Hot Ribbon Coding Machine
Printing speed 20-200 psc/min
Power 120 W
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Generic (Imported)

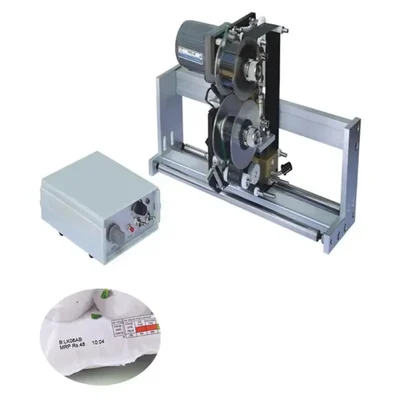

Continuous 18 Inch Hot Ribbon Coding Machine
SKU : JS-AP-20211669
MRP : ₹33000
₹31800
4% OFF!
-
1
+
750 people have viewed this recently
Delivery By: Jul 6 - Jul 8
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: China
Specification
- Brand: Generic (Imported)
- Weight (Approx.) : 13 kg
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 120 W
- Printing speed : 20-200 pcs/min
- Printing position : Set Freely
- Temp Range : 0-3000 C
- Printing Area : 450 x 35 mm
- Maximum Print Width : 18 inch (450 mm)
- Size (L x W x H) : 630 x 320 x 170 mm
- Weight : 13 kg (Approx.)
Toolsvilla deals in various types of Packaging Machinery. A wide variety of Batch Coding Machines can be used to print notes such as Batch Number, Date, Expiry Date, and MRP on plastic bags, in the food and pharmaceutical industries.
Description
This Continuous 18” Inch Hot Ribbon Coding Machine is a specialized printing device designed for the application of variable information such as date codes, lot numbers, and expiration dates onto packaging materials. This machine utilizes a hot ribbon printing technology, where a heated ribbon transfers ink onto substrates like plastic films, paper bags, and other packaging materials.
Features
:- Continuous Operation : The machine operates in a continuous mode, allowing for uninterrupted printing on moving products or packaging lines.
- 18-Inch Printing Width : This machine has a maximum width of 18 inch in which the print area that the machine can cover.
- Hot Ribbon Technology : The hot ribbon coding process involves heating a ribbon coated with ink. As the ribbon passes over the substrate, the heat causes the ink to transfer from the ribbon to the material being printed on.
- User-Friendly Design : This model come equipped with easy-to-use controls for adjusting print speed, temperature, and other settings.
Usage
:- Setup the Machine : Place the machine on a stable surface and ensure it is plugged into a power source. Check that the ribbon is properly installed in the machine according to the manufacturer’s instructions.
- Adjust Temperature Settings : Turn on the machine and set the desired temperature for coding based on the material you are printing on.
- Feed Material : Position the material (such as packaging or labels) that you want to code under the print head of the machine. Ensure that it is aligned correctly to avoid misprints.
- Select Coding Information : Input or select the text or code you wish to print using the control panel. This may involve typing in information or selecting pre-set codes.
- Start Coding Process : Press the start button to begin coding. The machine will automatically feed and print onto your material.
Maintenance :
- Installation and Use Environment : Ensure the machine operates in a controlled environment at room temperature. Avoid high humidity, extreme temperatures, and corrosive conditions to maintain efficiency and longevity.
- Pre-Use Checks : Inspect for debris on critical components like the belt roller and printing platen. Verify that the power supply is stable and check for any damage to power cords.
Applications
:- Date Coding : It prints expiration dates, production dates, and batch numbers on products to ensure compliance with food safety regulations.
- Product Identification : The machine can print product codes, barcodes, and other identifiers that help in inventory management and tracking.
- Labeling : It is used for labeling various types of packaging, including boxes, bags, and containers, enhancing brand visibility and providing essential product information.
- Customization : The machine allows for customization of printed messages or designs according to specific marketing needs or regulatory requirements.
Questions & Answers (0)
Product Image Gallery
