Brand: Generic (Imported)
Continuous Induction Sealing Machine 20-130 mm, 1.5Kw
SKU: SJ-DI-20211629
951 people have viewed this recently
Delivery By: Dec 9 - Dec 11
MRP : ₹98499 ₹90499
8% OFF!
951 people have viewed this recently Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹90499 (Including GST)
MRP : ₹98499
8% OFF!
Get Extra ₹1,357 OFF on Prepaid Orders
QTY :
-
1
+
Short Description

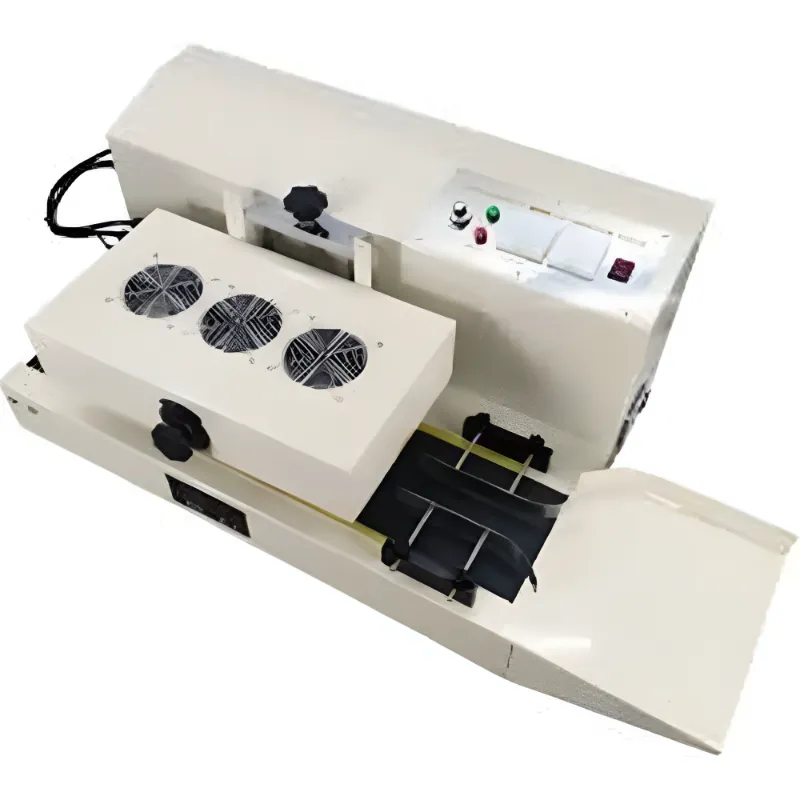

Continuous Induction Sealing Machine, 1.5Kw
Sealing Diameter : 20-130 mm
Widely used as sealing package machine in industries such as pharmaceuticals, pesticides, pesticides, lubricant and cosmetics etc.Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 65 kg
- Voltage : 220V
- Frequency : 50/60 Hz
- Power : 1.5 kW
- Capacity : 0-12 m/min
- Sealing Diameter : 20-130 mm
- Suitable Height of bottles : 40-300 mm
- Dimension (L x D x H) : 1550 x 550 x 1350 mm
Description
This Continuous induction sealer utilizes electromagnetic induction principle to produce instant high heat to melt wad. Then it adheres to the bunghole, reaching the aim of wet-proof, leakage-proof, mildew-proof and extending preservation time. Wad is sealed automatically when bottle is transmitted through under induction coil by conveyor.
Features
:- Sealing Range : Capable of sealing containers with diameters ranging from 20 mm to 130 mm.
- Power Rating : Operates at a power of 1.5 kW, providing efficient energy consumption and effective sealing performance.
- Continuous Operation : Designed for continuous operation, allowing for high-speed production and efficiency in packaging lines.
- User-Friendly Interface : It is equipped with an intuitive control panel for easy operation and monitoring of the sealing process.
Applications
:- Food and Beverage Industry : These machines are utilized to seal bottles and jars containing liquids, such as sauces, juices, and dairy products. The induction sealing process helps maintain freshness and prevents contamination.
- Pharmaceuticals : In the pharmaceutical sector, induction sealing is critical for ensuring that medicine bottles are tamper-proof and sterile. This application is essential for maintaining product safety and compliance with health regulations.
- Cosmetics and Personal Care : Induction sealing is employed to seal cosmetic containers like creams, lotions, and serums. This not only preserves the quality of the products but also enhances consumer trust by providing a visible indication of tampering.
- Chemical Industry : Chemicals stored in containers often require secure sealing to prevent leaks and spills. Induction sealing provides a reliable method to ensure that hazardous materials remain contained.
Usage
:1. Preparation :
- Ensure the machine is placed on a stable surface and connected to a suitable power source.
- Check that the induction sealing head is clean and free from any debris.
2. Adjusting the Machine :
- Set the desired sealing parameters such as speed and power level according to the material and size of the containers being sealed (20-130 mm).
- Use the control panel to adjust settings.
3. Loading Containers :
- Place the containers with foil seals into the machine’s conveyor system.
- Ensure that they are aligned properly for consistent sealing.
4. Operating the Machine :
- Start the machine using the control panel.
- Monitor the operation to ensure that containers are moving through the induction sealing area correctly.
5. Quality Control :
- After sealing, inspect a sample of sealed containers for proper seal integrity.
- Adjust settings if necessary based on inspection results.
Maintenance :
- Regularly clean and maintain the machine as per manufacturer guidelines to ensure optimal performance.
- Check electrical connections and components periodically for safety.
