Brand: Akari

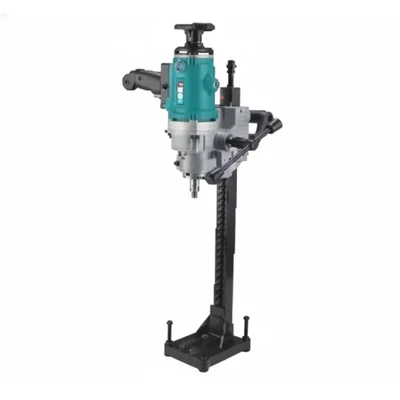

Akari 168 mm Diamond Core Drill 3900 Watt, 650 RPM (APT-DCD-168)
SKU: TI-A1-47802
Delivery By: Dec 24 - Dec 26
MRP : ₹15794 ₹12149
23% OFF!
Delivery By: Dec 24 - Dec 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹12149 (Including GST)
MRP : ₹15794
23% OFF!
Get Extra ₹182 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
3,900 Watt
650 RPM
168 mm
230 V
Country of origin: China
Specifications
- Brand: Akari
- Weight (Approx.) : 22 kg
- Drilling Capacity : 168 mm
Model : APT-DCD-168
Rated Power Input : 3,900 Watt
No-Load Speed : 650 RPM
Supply Voltage : 230 V
Drilling Type : Wet Drilling
Description
Step up your heavy-duty drilling game with the Akari Diamond Core Drill 168 mm (Model APT-DCD-168, Product Code T-200). Built for professional use, this powerhouse delivers 3,900 W of rated power and spins at 650 RPM to bore precise holes in reinforced concrete, masonry, stone and more. With a robust build, high torque low-speed drive and premium core-bit compatibility, it’s your go-to for demanding construction, plumbing, HVAC, electrical and structural drilling tasks. Make the tough jobs efficient and reliable with this high-performance core drill.
Features
:- High-power 3,900 W motor delivers robust torque for challenging core drilling tasks.
- Low speed 650 RPM provides optimum torque and core bit engagement for large-diameter holes.
- Designed for diamond core bit systems enabling clean, accurate core holes in tough materials.
- Rugged build quality suited for construction-site demands.
- Wet-drilling compatible to reduce dust, enhance bit life and improve hole finish.
- Ideal for professional contractors, building infrastructure works and heavy maintenance operations.
Applications
:- Drilling large-diameter holes (approx. 168 mm) for plumbing, HVAC ducts, and pipe penetrations in reinforced concrete slabs and walls.
- Creating openings for anchor bolts, wiring, cable trays, and cable ducts in structural elements.
- Installing railings, guard-rails, supports or heavy mechanical fixings where large core holes are required.
- Floor or wall penetration for mechanical services in commercial, industrial or infrastructure construction.
- Sample-core extraction for concrete testing and structural inspection.
Usage
:Usage Guidance (How to Use) :
- Securely mount the core drill on a stable drill stand or rig suited to the hole diameter and material, ensuring correct alignment and anchoring.
- Fit the appropriate diamond core bit (168 mm class) with correct thread/spindle specs.
- Connect water supply for wet drilling (recommended) to cool the bit and flush debris.
- Verify power supply and switch on the machine. Start the drill at idle, engage the core bit with the material gently until it starts cutting.
- Apply moderate consistent feed pressure—let the tool do the cutting; avoid excessive force which may overload motor or bit.
- Monitor progress and ensure water flow is maintained to avoid overheating, bit glazing or drill damage.
- Once the core is cut through, withdraw the bit smoothly, clean the hole and remove core if required.
- After use, switch off power, disconnect water supply, clean the tool and inspect the bit and machine before storage.
Maintenance Guidance :
- After each use, clean the machine thoroughly—remove slurry, dust and debris especially around vents, motor housing and spindle area.
- Inspect the diamond core bit for wear, glazed segments or damage; replace when required to maintain optimal drilling performance.
- Check the motor brushes (if applicable) periodically especially after heavy usage; replace brushes if worn to maintain full power.
- Ensure the water supply hose and connectors are intact with no leaks; clean the water intake and ensure filters are clear.
- Store the tool in a dry, clean environment, secured in the case or proper holder, with power cord wound neatly to avoid damage.
- Periodically check the spindle, bearings and mount for smooth operation; lubrication or servicing may be required as per manufacturer schedule.
- Follow the manufacturer’s service intervals and keep records of usage, maintenance and any issues for long-term reliability.
