Generic (Imported) - 10-100 ml Double Nozzle Paste Filling Machine for Highly Viscous Liquid or Paste Filling

Brand : Generic (Imported)

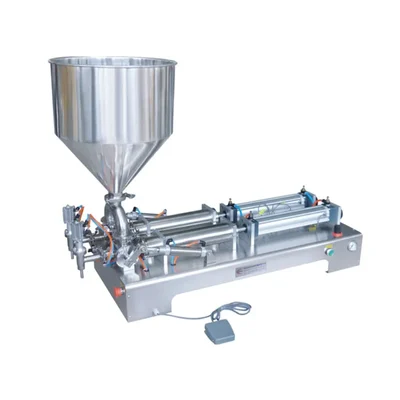

10-100 ml Double Nozzle Paste Filling Machine for Highly Viscous Liquid or Paste Filling

SKU : JS-AP-20211686

MRP : ₹62590

₹59999

4% OFF!

1090 people have viewed this recently

Get Extra ₹900 OFF on Prepaid Orders

Delivery By: Jun 21 - Jun 23

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

10-100 ml Double Nozzle Paste Filling Machine for Highly Viscous Liquid or Paste Filling

0-50 Bottle/Min Filling Speed

It is used in various industries to fill substances like cream, pastes, gel, ketchup, Oil, liquid and other kinds of materials.

Country of origin: China

Specification

Brand: Generic (Imported)
Weight (Approx.) : 50 kg

Body Material : 316 Grade Stainless Steel
Automation Grade : Semi-Automatic
Hopper Capacity : 15-30 Kg Approx
Hopper Material : 304 Grade Stainless steel
Filling Range : 10-100 ml
Voltage : 220V
Current : 1A
Power : 10W
Rated Air Pressure : 4-6 Kg
Filling Speed : 0-50 Bottle/Min
Filling Accuracy : 0.5% - 0.1% +

NOTE : This machine is not suitable for Grease filling.

Description

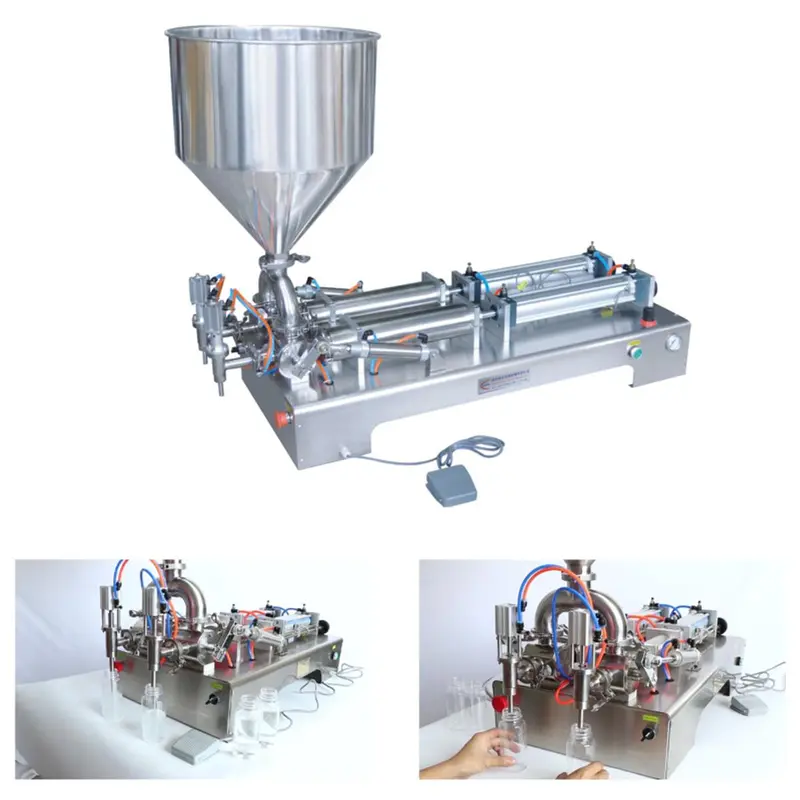

This machine is a semi-automatic piston-type paste liquid filling. Reasonable in design, small and exquisite in model, saving the place. The part contacting materials is made of 316L & hopper 304L stainless steel. Both filling volume and filling speed can be adjusted, with high filling accuracy.

Features

Adjustable Filling Range : The machine can fill volumes ranging from 10 ml to 100 ml, making it versatile for different product sizes.
Dual Nozzle Design : Equipped with two nozzles, this machine enables simultaneous filling, which significantly increases productivity and efficiency in production lines.
High Filling Accuracy : The machine boasts a filling accuracy of ±0.5% - 0.1%, ensuring that each container receives the correct amount of product.
Simple Maintenance and Cleaning : The machine is designed for easy disassembly, allowing for quick cleaning and maintenance.

Applications

Food Industry : It is suitable for filling sauces, jams, and other thick food products.
Cosmetics : The machine can fill creams, lotions, and gels used in personal care products.
Pharmaceuticals : It is utilized for dispensing ointments and other viscous medicinal products.
Chemical Industry : The machine can handle adhesives and other thick chemical substances.

Usage

Setup the Machine :

Place the machine on a stable, flat surface.
Ensure that all parts are securely assembled according to the manufacturer’s instructions.

Adjust the Filling Volume :

Set the desired filling volume (between 10-100 ml) using the adjustment knob.

Prepare the Paste :

Ensure that the paste is at an appropriate viscosity for filling. If necessary, mix or dilute it to achieve optimal flow.

Fill the Hopper :

Pour the prepared paste into the hopper of the machine, ensuring not to overfill.

Select Operating Mode :

Choose between manual or automatic mode based on your production needs.

Start Filling Process :

Press the start button or activate the foot pedal to begin filling.
Monitor the process to ensure consistent filling and check for any clogs or issues.

Collect Filled Containers :

Position containers under the nozzle to catch filled paste.
Ensure containers are stable and aligned properly for accurate filling.

Maintenance :

Regular Cleaning : After each production run, thoroughly clean all parts that come into contact with the paste. This includes the filling nozzle, hopper, and any other components.
Inspection for Wear and Tear : Conduct regular visual inspections to check for signs of wear, leaks, or corrosion on seals and gaskets.
