Brand: Generic ( Made in India )

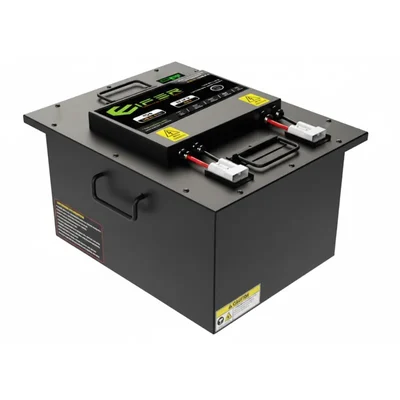

Eiferzen Energy 51.2V 100Ah 5.12kWh Li-Ion Battery for EV Mobility EMC 51100
SKU: TI-EE-62551
Delivery By: Jan 26 - Jan 28
MRP : ₹94000 ₹77831
17% OFF!
Delivery By: Jan 26 - Jan 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹77831 (Including GST)
MRP : ₹94000
17% OFF!
Get Extra ₹1,167 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
High-capacity 51.2V 100Ah Li-Ion battery with 5.12kWh energy, IP65/IP67 protection, and robust BMS for EV mobility. Supports CC-CV charging, 0.8C continuous/2C peak discharge, optional Bluetooth/CAN/IoT, ideal for heavy-duty applications.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Nominal Rated Voltage: 51.2V DC
- Rated Capacity: 100Ah
- Energy Rated: 5.12kWh
- Weight: 50kg
- Battery Operating Voltage Range: 58.4V ~ 42.4V ± 0.5V
- Recommended Charging Voltage (CV): 55.2V ± 0.5V
- Charging Mode: CC-CV
- Charge Current: 0.3C
- Continuous Discharge Current: 0.8C
- Peak Discharge Current: 2C (for 10 sec)
- Low Voltage Disconnection: 42.4V ± 1.0V
- High Voltage Disconnection: 58.4V ± 1.0V
- Over-Charge Protection: Yes
- Over-Discharge Protection: Yes
- Over-Temperature Protection: Yes (high-temp disconnection at 60°C)
- Over-Current Protection: Yes
- Short-Circuit Protection: Yes
- Audio/Visual Alarm: Yes (optional)
- Balancing Mode: Active/Passive (optional)
- Paralleling Module: Optional
- IP Rating: IP65 (IP67 optional)
- Operating Temperature: Charging: 0°C ~ +55°C; Discharging: -20°C ~ +60°C
- Storage Temperature: 0°C ~ +35°C
- Module Dimensions (±2mm): 470 x 370 x 240 mm (L x B x H)
- Communication: Bluetooth, CAN, UART/RS485, IoT (all optional)
Description
The Eiferzen Energy EMC 51100 is a powerhouse Li-Ion battery pack offering 5.12kWh energy storage in a sturdy 470x370x240mm module designed for demanding EV mobility needs. It features a full BMS with protections against over-charge, over-discharge, over-current, short-circuit, and over-temperature (60°C cutoff), plus low/high voltage disconnections for ultimate safety. With IP65/IP67 (optional) rating, extreme temperature operation (-20°C to +60°C discharge), and optional communications including Bluetooth, CAN, UART/RS485, or IoT, it enables active/passive balancing and paralleling for scalable setups. Suited for e-rickshaws, heavy scooters, carts, and industrial EVs requiring substantial power and reliability.
Features
:- Complete BMS safeguards, including optional audio/visual alarms, over-charge, over-discharge, over-current, short circuit, and over-temperature with 60°C disconnection.
- IP65 ingress protection for tough, weather-resistant performance (IP67 optional).
- Temperature range: -20°C to +60°C for discharging and 0°C to +55°C for charging.
- Advanced communication options include IoT for monitoring and control, Bluetooth, CAN, and UART/RS485.
- For modular expansion, paralleling and active/passive balancing are optional.
- For high power requirements, CC-CV charging at 0.3C, continuous 0.8C discharge, and 2C peak (10 sec).
- Precise voltage regulation: operational 42.4-58.4V, nominal 51.2V.
- The ideal temperature range for long-term storage is 0°C to +35°C.
Applications
:- Three-wheelers and e-rickshaws.
- Robust electric bikes and scooters.
- AGVs, trolleys, and industrial carts.
- Material handlers and warehouse forklifts.
- Solar-hybrid mobility and off-grid EV conversions.
Usage
:- For BMS communication with the EV controller, pair with CAN/RS485.
- In circumstances between 0 and 55°C, charge via CC-CV at 0.3C to 55.2V.
- Use between 42.4 and 58.4 volts; BMS enforces safeguards such as low-voltage disconnect at 42.4 volts.
- During acceleration surges, apply 2C peak for 10 seconds.
- Store between 0 and 35°C; turn on Bluetooth and IoT to track performance.
