Brand : Boltz

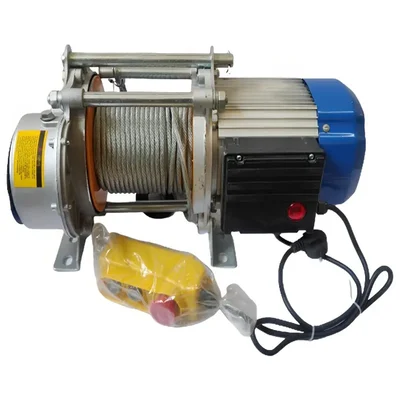

Boltz 750-1500 KG 5 hp KCD Electric Winch With 8 MM & 30 meter Wire Rope
SKU : TP-BT-20230798
MRP : ₹30000
₹20990
30% OFF!
-
1
+
5 people have bought this recently
Get Extra ₹315 OFF on Prepaid Orders
Delivery By: Jun 22 - Jun 24
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KCD Electric Winch Machine
750-1500 kg load capacity
5 hp copper winding motor, 220 V
8mm, 30-meter wire rope
Country of origin: China
Specification
Description
Boltz 750-1500 KG 5 hp KCD Electric Winch With 8 MM & 30 meter Wire Rope

Description :
  • An electric winch is a motorized tool used to wind up wind down, or otherwise change the tension of a wire rope. Winches are the central component of bigger machinery like elevators, steam shovels, and tow trucks, among others.

Features :
  • Lifting
  • Pulling
  • Positioning Of Loads

Specifications :
  • Product Type : KCD Electric Winch Machine
  • Brand : Boltz
  • Winding : 100% Copper
  • Clutch System : No
  • Motor power : 5 hp
  • Phase : Single
  • Voltage : 220 V
  • Frequency : 50 Hz
  • Wire Rope Length : 30 meter
  • Wire rope Thickness : 8 mm
  • Lifting Capacity (Single/Double-Wire Rope) : 750/1500 kg
  • Lifting Height Single Hook : 15 meters
  • Lifting Height Double Hook : 30 meters
  • Lifting speed (Single/Double -Wire Rope) : 7/14 meters per minute
  • Continuous Working Capacity : 2 hrs. (Approx.)
  • Dimension ( L*B*H ) : 60*30*30 cm

Usage/Application :
  • Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.

In the Box :
  • 1 x Electric Clutch Winch
  • 1 x Eye Hook
  • 1 x Wire Rope
  • 1 x Remote
  • 1 x Voltmeter

Note :
  • The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
