12" Electric Manual Impulse Hand Sealer, 290 W,300 mm
Hot bar sealers for laminated pouches Seal Width: (1.6 x 2) mm
Description

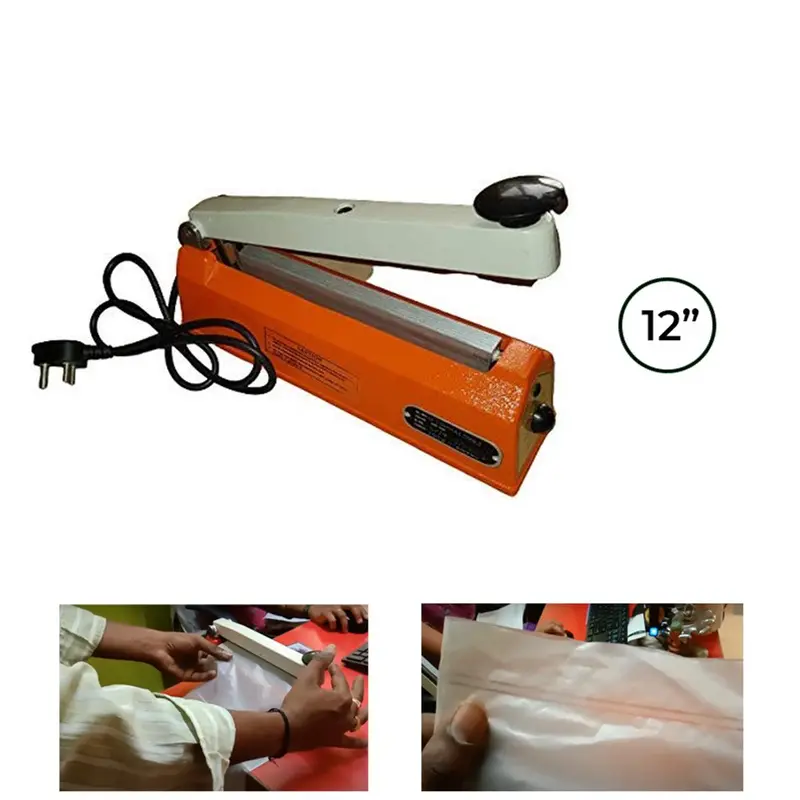

Hot Bar Type 12 Inch (300mm) Manual Hand Sealer, 290W
Description :
Hot bar sealers- have heated tooling kept at a constant temperature (also known as Direct Contact Thermal Sealing). They use one or more heated bars, irons, or dies which contact the material to heat the interface and form a bond. The bars, irons and dies have various configurations and can be covered with a release layer or utilize various slick inter poser materials (i.e. Teflon films) to prevent sticking to the hot tooling.
Features :
Ideal for sealing heat sealable poly pouches.
Hot bar sealers for laminated pouches
Adjustable electronic timer.
Audiovisual sealing indicators.
Suitable for packing solids, granules and powders.
Round element option for simultaneous sealing and cutting.
Specifications :
Model No.: 300 HB
Product Type: Hotbar Hand Sealer
Brand: Made in India
Power: 290 W
Voltage: 240 V
Seal Width: (1.6 x 2) mm
Seal Length: 300 mm (12 inch)
Dimension (L x W x H): 410 x 85 x 145 mm
Weight : 2 Kg (Approx)
Operating Instructions :
Put the plug in the power socket (No power is consumed in case you do not press the handle).
Adjust timer to preliminary setting for thickness / density of bag (the smaller as possible).
Press the handle keeping the bag on the pad.
Leave the handle about one second after the signal light is off / audio alarm is raised automatically.
Do the final adjustments on the timer after a few operations.
