Brand: Schwer

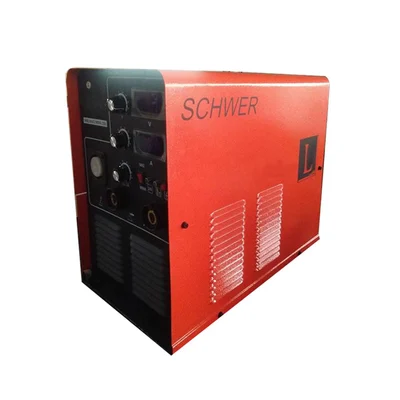

Inside Feeder Welding Machine MIG+ARC 250, Welds 4mm Continuously
SKU: NI-KO-2008
Delivery By: Jan 4 - Jan 6
MRP : ā¹54560 ā¹38640
29% OFF!
Delivery By: Jan 4 - Jan 6 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
ā¹38640 (Including GST)
MRP : ā¹54560
29% OFF!
Get Extra ā¹580 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Arc stability with low spatter.
Electrode Diameter(mm): 0.8-4
Wire Feeding Mechanism: Internal
Wire Feeding Speed: 2.5-13 m per mins
Mature MOSFET technology
Country of origin: China
Specifications
- Brand: Schwer
- Weight (Approx.) : 33 kg
- Output Current Range : 250 amp
- Technology : MOSFET
- Model No. : Schwer ARC L
- Product Type : Welding machine
- Brand : Schwer
- Electrode Diameter(mm) : 0.8-4
- Phase : Single Phase
- Rated Input Voltage(V) : AC 220VĀ±15%
- Rated Input Power(KVA) : 12.1
- Rated Input Current(A) : 55
- Rated Output Voltage(V) : 47
- Output Current Range(A) : 50-250
- Wire Feeding Mechanism : Internal
- Wire Feeding Speed : 2.5-13 m per mins
- Efficiency : 85%
- Duty Cycle : 60%
- Power Factor : 0.73
- Protection Class : IP21
- Insulation Class : F
- Weight : 33 Kg (Approx)
Description
The Inside Feeder Welding Machine MIG+ARC 250 offers both MIG and ARC welding modes, with an internal wire feeder and a 250A output. Capable of welding 4mm materials continuously, it features a semi-automatic operation, adjustable wire feed speed (5ā13 m/min), and operates on AC 220V. Ideal for consistent, efficient welding in fabrication and repair tasks
Features
:- Arc stability with low spatter.
- Wide range for input voltage:220V +- 15%
- Mature MOSFET technology
Accessories
:- 1 x Welding Machine
- 1 x Operator's Manual
- 1 x Working Clamp
- 1 x Earthing Clamp
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
Applications
:- For welding upto 4mm MS rods for Grill Gate Welding.
- Suitable Welding Rod: 0.8-1.2 mm (MIG), 2.5-4 mm (ARC) continuous
