Brand : Generic ( Made in India )

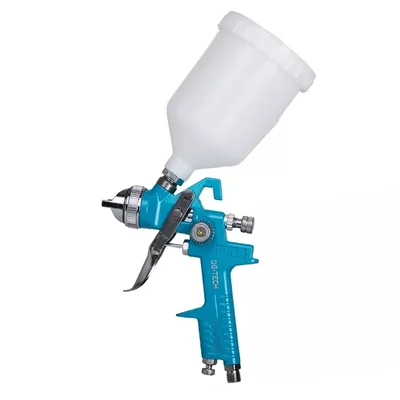

DG-Tech HVLP Spray Gun 600cc Cup, 6.35 mm (1/4 inch) Air inlet, 1.4 mm Nozzle
SKU : TI-DH-46139
MRP : ₹1350
₹1099
19% OFF!
-
1
+
Get Extra ₹16 OFF on Prepaid Orders
Delivery By: Oct 24 - Oct 26
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
DG-Tech HVLP Spray Gun 600cc Cup,
6.35 mm (1/4 inch) Air inlet
1.4 mm Nozzle
Country of origin: India
Specification
  • Brand: Generic ( Made in India )
  • Weight (Approx.) : 1 kg
  • Cup Capacity : 600 ml
  • Type of Feed : Gravity
  • Nozzle : 1.4mm
  • Operating Pressure : 3.0-4.0Bar
  • Air Consumption : 6.0-11.0cfm
  • Capacity : 600cc
  • Air Inlet : 1/4"

Description
The DG-Tech HVLP Spray Gun H827 (New Model) redefines precision painting with its upgraded design and performance. With a gravity-feed system, 600cc capacity, and enhanced air efficiency, this spray gun is perfect for delivering professional-quality finishes across a range of applications. Its robust construction and versatile functionality make it an essential tool for painters, craftsmen, and industrial professionals.

Features

 :
  • Gravity-Feed System : Ensures consistent paint flow, reducing overspray and material waste for precise applications.
  • 1.4mm Nozzle : Designed for medium-viscosity paints, delivering a fine atomized spray for even coverage.
  • Enhanced Air Performance : Operates at an air pressure of 3.0-4.0Bar with air consumption of 6.0-11.0cfm, providing optimal spraying efficiency.
  • Generous 600cc Capacity : Minimizes interruptions by holding ample material for large or detailed projects.
  • 1/4" Air Inlet : Compatible with standard air compressors for seamless integration into your workflow.
  • Ergonomic Design : Lightweight and balanced for comfortable handling, even during extended use.

Applications

 :
  • Automotive Refinishing : Ideal for achieving smooth and uniform basecoats, clear coats, and primers on cars and motorcycles.
  • Furniture and Woodwork : Provides high-quality finishes for wooden furniture, cabinetry, and decorative pieces.
  • Industrial Coatings : Suitable for applying protective paints and coatings on machinery, equipment, and metal surfaces.
  • DIY and Hobby Projects : Perfect for creative projects requiring precision and control, such as model painting or home décor.
  • Construction and Renovation : Efficiently handles painting walls, ceilings, and large surfaces in residential or commercial projects.

Usage

 :
Usage :

Check the Equipment :
  • Ensure the spray gun, air hose, and compressor are compatible.
  • Inspect all parts for damage, wear, or clogging.

Select the Right Nozzle :
  • Choose the correct nozzle size for your material (paint, lacquer, etc.).
  • Refer to the manufacturer's chart for viscosity vs. nozzle size.

Mix the Material :
  • Properly mix and strain paint or coating to remove impurities.
  • Thin the material according to the product requirements and spray gun capacity.

Fill the Cup :
  • Pour the material into the gun’s cup. Do not overfill.
  • Secure the lid or cap tightly to avoid spills or pressure loss.

Connect to Air Supply :
  • Attach the air hose to the gun and compressor.
  • Set the air pressure (usually between 2.5–4 bar or 35–60 psi depending on the spray pattern and material).

Spraying Operation

Test First :
  • Spray on a test surface to adjust spray pattern, fluid flow, and fan control.
  • Fine-tune air and fluid knobs for desired atomization and coverage.

Maintain Correct Distance :
  • Hold the gun about 6–8 inches (15–20 cm) from the surface.
  • Move the gun parallel to the surface with smooth, even strokes.

Trigger Control :
  • Press the trigger in stages: air first, then material.
  • Release in reverse: material off first, then air.

Overlap Strokes :
  • Use 50% overlap for even coating without streaks or thin spots.

After Use – Shutdown Procedure
  • Turn off the compressor and release air pressure.
  • Empty any remaining paint from the cup.
  • Clean the spray gun immediately after use (see cleaning below).


Daily Maintenance (After Each Use)

Disassemble & Clean :
  • Remove the nozzle, needle, air cap, and cup.
  • Use recommended solvents to clean internal and external parts.
  • Use soft brushes or specialized spray gun cleaning kits.

Avoid Damage :
  • Do not use sharp objects or metal brushes that may damage components.
  • Do not soak plastic or rubber parts in aggressive solvents.

Lubricate :
  • Apply a few drops of spray gun lubricant to moving parts (trigger, needle packing) to maintain smooth operation.

Weekly or Regular Maintenance

Inspect Components :
  • Check seals, O-rings, and gaskets for wear or damage.
  • Replace worn-out parts immediately to avoid leaks or spray inconsistencies.

Check Air Passages :
  • Blow compressed air through the air channels to prevent blockages.

Test Spray Pattern :
  • Ensure consistent, even spray without spitting or pulsating.

Storage Guidelines
  • Store the spray gun in a protective case or clean area.
  • Keep away from moisture and dust to prevent corrosion and contamination.
  • Ensure all parts are dry and clean before storage.
