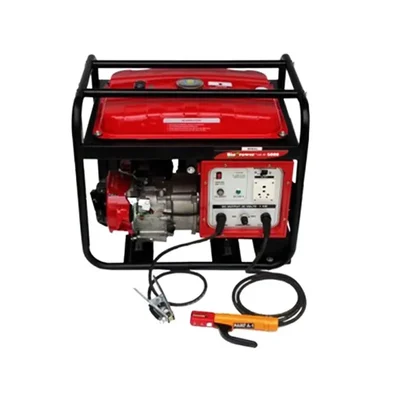

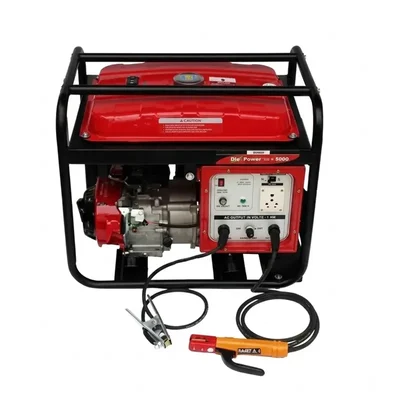

HPM 200 Amps 2000VA Petrol Portable DC Welder Cum Generator Machine 6.5HP Recoil Start 12L Tank (GE 5000 R)

Brand: HPM

HPM 200 Amps 2000VA Petrol Portable DC Welder Cum Generator Machine 6.5HP Recoil Start 12L Tank (GE 5000 R)

Name: HPM 200 Amps 2000VA Petrol Portable DC Welder Cum Generator Machine 6.5HP Recoil Start 12L Tank (GE 5000 R)
Brand: HPM
SKU: SG-DC-2027
Price: 128000 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: SG-DC-2027

MRP : ₹179200 ₹128000

29% OFF!

3130 people have viewed this recently

Get Extra ₹1,920 OFF on Prepaid Orders

Estimated Delivery By: Oct 26 - Oct 28

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹128000 (Including GST)

MRP : ₹179200

29% OFF!

Get Extra ₹1,920 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

HPM 200 Amps DC Welder Generator

Petrol Run

2.6-4.0 mm Max. Electrode Diameter

Country of origin: India

Brand: HPM
Weight (Approx.) : 55 kg
Fuel Used : Petrol
Fuel Consumption : 1 l/hr

Model No : GE 5000 R

DC Welding :

Maximum Output (Duty Cycle 60%) : 200 Amps
Rated Welding Output Current (Duty Cycle 60%) : 175 Amps
Working Voltage : 20 to 30 V
Open Circuit Voltage : 65 Volt (Minimum)
Current Regulation Amps : 75-175 Amps
Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
Maximum Electrode diameter : 2.6-4.0 mm

AC Generator :

Type : Brushless With Rear Earth Magnet Rotor
Alternator Type Multiphase, Brush less with Rear Earth Magnet Rotor
Maximum Power (VA) : 2000 VA (2 KVA)
Rated Power (VA) : 1800 VA (1.8 KVA)
Rated Current : 7.5 Amps
NFB Amps : 7.5 Amps
AC. Output Voltage 220 Volts ± 8% Volts, Single Phase – 50 Hz
Frequency (Adjustable) : 50 to 60 Hz
Class of Insulation : F

Engine :

Model : HM170P
Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
Maximum Power : 6.5 HP
Bore x Stroke : 70×58
Displacement : 223cc
Starting System : Recoil Start
Ignition System : TCI (Transistor Control Ignition)
Fuel Standard : Petrol
Fuel Tank Capacity : 12 Liters
Fuel Consumption (Ltr./Hr) : 1.0 Ltr/hr
Continuous Operating : 12 hr
Lube Oil Capacity : 600 ml
Lubricating Oil Consumption : 2.5 gm/Hr

Panel And Other Standard Features :

AC Circuit Protector : Yes
AC Pilot Lamp : Yes
Engine Oil Protection : Electronic Oil Alert & Indicator
Fuel Level Gauge : Yes
A.C. Output Sockets : 1 No

The HPM GE-W 5000 R is a powerful, lightweight, and portable petrol-driven DC welder cum generator machine engineered for general-purpose structural, light, and heavy welding jobs. Powered by a 223cc 6.5 HP HM170P 4-stroke OHV engine, it delivers up to 200 Amps of DC welding output for electrodes up to 4.0 mm, alongside a 2000 VA single-phase AC auxiliary generator output. Featuring a brushless alternator with a rare earth magnet rotor, SCR 3-phase phase-controlled rectifying bridge, electronic oil protection, and a 12-liter fuel tank for up to 12 hours of continuous operation, this low-maintenance unit provides long service life and reliable field performance.

Features

Dual Welder & Generator Functionality: Provides up to 200 Amps DC welding current alongside 2000 VA AC power output.
Powerful Petrol Engine: Driven by a 223cc, 6.5 HP 4-stroke single-cylinder OHV 25° inclined HM170P engine.
Advanced SCR Rectifying Mode: Uses SCR, phase-controlled 3-phase rectifying bridge for regulated DC current from 75 to 175 Amps.
Brushless Alternator: Features a brushless multiphase alternator with a rare earth magnet rotor for high efficiency.
Extended Operation: Equipped with a 12-liter petrol fuel tank providing 12 hours of continuous running time at 1.0 Ltr/hr consumption.
Engine Protection System: Includes an electronic oil alert and indicator alongside an AC circuit protector for operational safety.

Accessories

AC Plug : 1 Pc
Tool Kit : 1 Set
Welder Holder : 1 Set
Earthing Clamp With Cable : 1 Set
Oil Funnel : 1 pc
Owner’s Manual : 1 pc

Note :

Do not use the welder for work other than welding.
Do not touch the live part.
Do not solder in places where skimming, cleaning and spraying are required.
When using, please wear a protective cover or protective clothing.

Applications

General purpose structural welding, light, and medium welding jobs up to 4 mm electrode size
Field welding operations and remote construction site fabrication where grid power is unavailable
Operating 220V AC electrical power tools and appliances up to 2000 VA

Usage

Fill the engine crankcase with up to 600 ml of lubricating oil and fill the fuel tank with up to 12 liters of petrol.
Pull the recoil starter cord to start the 6.5 HP HM170P 4-stroke engine.
Set the welding current regulation switch between 75 and 175 Amps according to the electrode diameter (2.6 mm to 4.0 mm).
Connect welding cables to perform DC arc structural or general welding tasks.
Plug 220V single-phase AC equipment into the single AC output socket for auxiliary power generation.
