Brand: Generic (Imported)
Heavy Duty 60 to 130 mm Induction sealer
SKU: SJ-DI-20211628
₹10000 (Including GST)
MRP : ₹12000
Get extra ₹150 Discount (On Checkout)
Delivery By: May 14 - May 16
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

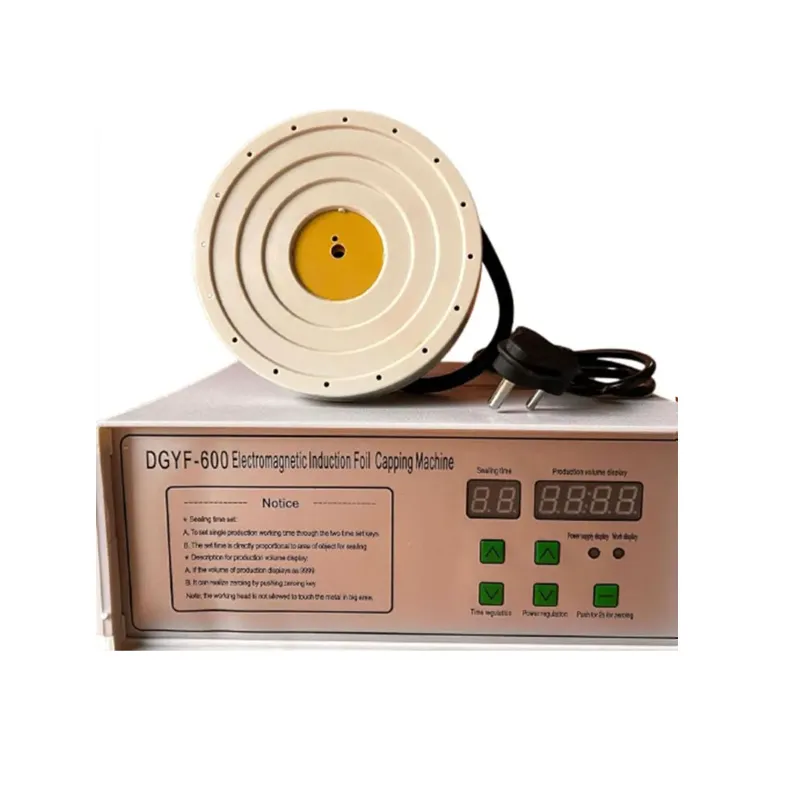

Manual Portable Induction Sealing Machine
Sealing Dia. 60-130 mm
Used as sealing package machine in pharmaceuticals, pesticides, pesticides, lubricant and cosmetics, food Industries.
Country of origin: China
Description
This portable induction sealing machine utilizes the electromagnetic induction principle to produce instant heat to melt wad. Then it adheres to the bunghole, reaching the aim of being wet-proof, leakage-proof, mildew-proof, and extending preservation time. Suitable for containers such as plastic bottles, ABS, PE (HDPE, LDPE), PET, PP, PS, PVC, or glass bottles.
Features
:- Portable Design : The heavy-duty induction sealer is designed with portability in mind, making it suitable for small workspaces and allowing for easy relocation as needed.
- User-Friendly Operation : The induction sealer is designed for ease of use; operators simply need to place the sealing wand over the cap and press a button to initiate the sealing process.
- Versatile Sealing Capability : It can accommodate a wide range of bottle sizes, specifically those with openings ranging from 60 mm to 130 mm without requiring mechanical adjustments.
- Fast Seal Times : The machine offers quick sealing times, ranging from 0 to 3.9 seconds for most applications, which enhances productivity in environments where speed is essential.
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 3 kg
- Model No. : DGYF S500C
- Voltage : AC 220/110 V
- Frequency: 50/60 Hz
- Power : 500W
- Automation Grade : Semi-Automatic
- Sealing Diameter : 60-130 mm
- Machine Dimensions : 340 x 290 x 150 mm
- Working Current : < 8 (A)
- Chassis Material : Plastic mold design
- Sealing Diameter : From 60 ~ 130 (mm)
- Sealing Time : 0 ~ 3.9 s/time (Adjustable)
Usage
:- Preparation : Ensure the machine is placed on a stable surface and connected to a power source. Check that the induction sealing head is clean and free of any debris.
- Adjusting Settings : Set the desired sealing parameters on the control panel, based on the material of the cap and container.
- Cap Placement : Place the filled and capped container under the induction sealing head. Ensure that the cap diameter is between 60 mm and 130 mm for optimal performance.
- Sealing Process : Activate the machine by pressing the start button. The induction heating will begin, creating a airtight seal as it heats the wad liner inside the cap.
- Completion : Once sealing is complete, wait for a moment before removing the container to allow it to cool down slightly.
Maintenance :
- Regular Cleaning : Ensure the sealing area is kept clean and free from dust and debris. Use a soft cloth to wipe down the machine after each use, focusing on the sealing head and surrounding areas.
- Electrical Safety Checks : Inspect electrical connections for any loose wires or corrosion. Ensure that all safety features are functioning correctly.
Applications
:- Pharmaceutical Industry : Ensures that medications are sealed properly to maintain sterility and prevent contamination.
- Food and Beverage Industry : Provides airtight seals on bottles and jars, extending shelf life and preventing spoilage.
- Cosmetics and Personal Care Products : Protects products from leakage and tampering, ensuring consumer safety.
- Chemical Industry : Secures hazardous materials in containers to prevent spills and leaks during storage and transport.
