Brand: WORSHIP PACKAGING

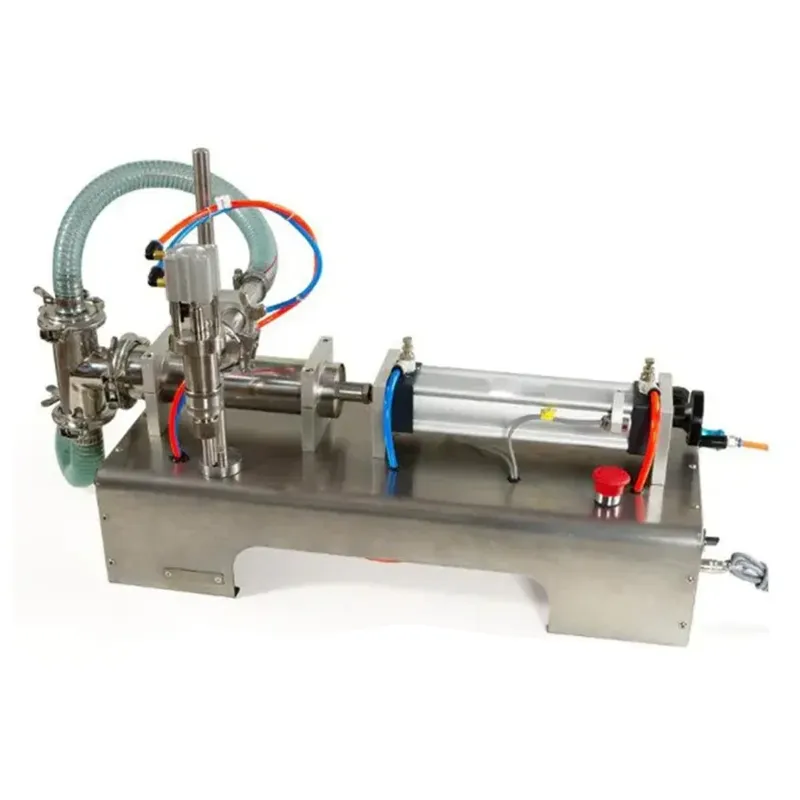

WP Single Nozzle Liquid Filling Machine 100-1000 ml, Semi-Automatic
SKU: TB-WO-36319
Delivery By: Dec 9 - Dec 11
MRP : ₹38599 ₹29599
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹29599 (Including GST)
MRP : ₹38599
23% OFF!
Get Extra ₹444 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Worship Packaging Semi-Automatic Liquid Filling Machine
Single Nozzle
100-1000 ml Filling Capacity
Single Nozzle
100-1000 ml Filling Capacity
Country of origin: China
Specifications
- Brand: WORSHIP PACKAGING
- Weight (Approx.) : 20 kg
- Body Material : Stainless Steel
- Power source : 220V/110V
- Power : 10W
- Phase : Single
- Frequency : 50Hz
- Filling Head : Single Head
- Filling Volume : 100-1000 ml
- Air Supply : 400 LPM
- Air Pressure : 0.6 Mpa
- Efficiency : 600-1500 bottles per hr
Description
This machine is a semi-automatic piston-type liquid filling machine This machine is reasonable in design, small, and exquisite in the model. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). Both filling volume and filling speed can be adjusted at will, filling accuracy is high. Filling head adopts an anti-leakage and lifting filling device.
Features
:Air Supply Requirement : The machine requires an air supply of 400 LPM at a pressure of 0.6 Mpa, indicating its reliance on pneumatic systems for operation.
Power Specifications : It operates on a power source of either 220V or 110V with a frequency of 50Hz, making it adaptable to different electrical standards across regions.
Material Construction : The piston and hopper are made from 304 stainless steel and Polytetrafluoroethylene (PTEF), materials known for their durability and resistance to corrosion, ensuring longevity and hygiene in operations.
Single Head Filling Mechanism : The machine utilizes a single head for filling operations, which simplifies the process while still providing efficient output.
Power Specifications : It operates on a power source of either 220V or 110V with a frequency of 50Hz, making it adaptable to different electrical standards across regions.
Material Construction : The piston and hopper are made from 304 stainless steel and Polytetrafluoroethylene (PTEF), materials known for their durability and resistance to corrosion, ensuring longevity and hygiene in operations.
Single Head Filling Mechanism : The machine utilizes a single head for filling operations, which simplifies the process while still providing efficient output.
Usage
:1. Preparation :
Ensure the machine is clean and free from any previous product residues.
Set up the machine on a stable surface and connect it to a power source.
2. Adjusting the Settings :
Set the desired filling volume (between 100-1000 ml) using the volume adjustment knob.
3. Container Placement :
Place empty containers under the nozzle in a manner that allows for easy filling.
Ensure that all containers are aligned properly to avoid spills.
4. Filling Process :
Activate the filling process by pressing the foot pedal.
Monitor the filling to ensure that each container receives the correct amount of liquid.
5. Post-Filling :
Once filling is complete, remove filled containers from beneath the nozzle.
Clean any spills around the filling area to maintain hygiene.
Maintenance :
Ensure the machine is clean and free from any previous product residues.
Set up the machine on a stable surface and connect it to a power source.
2. Adjusting the Settings :
Set the desired filling volume (between 100-1000 ml) using the volume adjustment knob.
3. Container Placement :
Place empty containers under the nozzle in a manner that allows for easy filling.
Ensure that all containers are aligned properly to avoid spills.
4. Filling Process :
Activate the filling process by pressing the foot pedal.
Monitor the filling to ensure that each container receives the correct amount of liquid.
5. Post-Filling :
Once filling is complete, remove filled containers from beneath the nozzle.
Clean any spills around the filling area to maintain hygiene.
Maintenance :
- Routine Cleaning : Ensure the filling nozzle and surrounding areas are cleaned regularly to prevent product buildup.
- Electrical Safety : Always disconnect power before performing maintenance to avoid electric shock or injury.
