Brand: Pilot

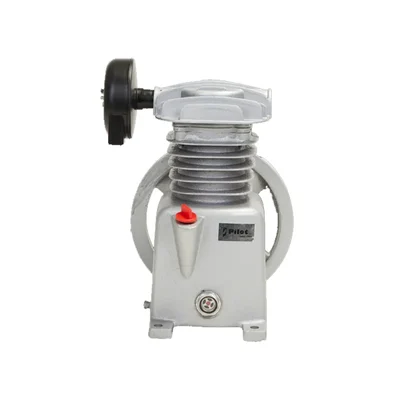

Pilot 65 mm Single Cylinder 1 HP Belt Driven Air Pump (PL-1065)
SKU: TI-P6-46151
Delivery By: Dec 10 - Dec 12
MRP : ₹6250 ₹4299
31% OFF!
Delivery By: Dec 10 - Dec 12 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹4299 (Including GST)
MRP : ₹6250
31% OFF!
Get Extra ₹64 OFF on Prepaid Orders
Short Description
Pilot 65 mm Single Cylinder
1 HP Belt Driven Air Pump
Country of origin: India
Specifications
- Brand: Pilot
- Weight (Approx.) : 8 kg
- Net Quantity : 1 pc
- Model No. : PL-1065
- Power : 1HP
- Max. Pressure : 8 Bar/115 Psi
- Cylinder (mm×piece) : 65 × 1
- Air Displacement : 36 LPM
Description
The Pilot Air Pump 1065 combines compact power and reliable performance, making it a valuable addition to any workspace. Designed for ease of use, this air pump is suitable for a variety of light to medium-duty applications.
Features
:- Efficient Power : Powered by a dependable 1HP motor that delivers consistent output for light-duty applications.
- Optimal Pressure : Capable of reaching a maximum pressure of 8 Bar/115 PSI, suitable for a wide range of minor pneumatic needs.
- Cylinder Efficiency : Equipped with a 65mm single-cylinder design that provides efficient air displacement of 36L/min, maximizing output in a compact form.
- Durable Construction : Built with high-quality materials for reliability and durability, ensuring the pump withstands regular use.
- User-Friendly Design : Compact and portable, making it easy to use and maneuver in various settings.
Applications
:- Automotive and Small Workshops : Ideal for basic tire inflation and operating small pneumatic tools, providing reliable air support for minor tasks.
- Home Projects and DIY : Perfect for light-duty applications like airbrushing, inflating sports equipment, and small tools in home workshops.
- Agricultural Use : Useful for inflating tractor tires and supporting farm equipment, making it versatile for rural applications.
Usage
:Usage :
Safety First
- Always read and understand the user manual before operation.
- Wear appropriate safety gear: goggles, gloves, and hearing protection.
- Use the air pump in a well-ventilated, dry area, away from flammable materials.
- Ensure all guards (e.g., belt guard) are in place before starting.
Setup
- Mount the pump securely on a flat, vibration-free surface.
- Ensure the pump is aligned correctly with the motor using the belt drive.
- Check oil level in the crankcase (if oil-lubricated) before starting.
- Verify that all bolts, fittings, and connections are tight and secure.
Starting the Pump
- Connect the pump to a compatible 4HP electric motor with the correct pulley alignment and belt tension.
- Turn ON the motor and allow the pump to build pressure gradually.
- Monitor the pressure gauge if connected to a tank or compressor system.
Operating the Pump
- Ensure the belt tension is optimal during operation to prevent slippage or wear.
- Operate the pump within its rated pressure and duty cycle.
- Avoid continuous operation beyond its designed cycle; allow cooling periods.
- Use with a compatible air tank and regulator for controlled output pressure.
Shutting Down
- Turn off the motor powering the pump.
- Release any residual pressure from the system.
- Disconnect power if performing maintenance or inspection.
Maintenance :
Daily Maintenance
- Check oil level and refill if necessary (use compressor-grade oil like SAE 30).
- Inspect for leaks: air or oil.
- Listen for unusual noises indicating mechanical wear or looseness.
- Drain any moisture from the connected air tank.
Weekly Maintenance
- Clean the air filter: use compressed air to remove dust or replace if heavily soiled.
- Inspect belt condition: look for cracks, frays, or signs of wear.
- Check bolt tightness: especially mounting bolts and pulley fasteners.
Monthly Maintenance
- Inspect pulley alignment and belt tension; adjust if needed.
- Check oil quality and color: if dark, contaminated, or emulsified, replace it.
- Examine the intake and exhaust valves for any blockage or buildup.
Oil Change (Every 3 Months or 100 Hours)
- Warm up the pump for 2–3 minutes to thin the oil.
- Turn off and unplug the power source.
- Remove the oil drain plug and drain oil into a container.
- Refit the plug securely and refill with fresh compressor oil.
- Avoid overfilling - use the sight glass or dipstick to check the correct level.
Annual Maintenance
- Deep clean the pump’s cooling fins to ensure proper heat dissipation.
- Inspect for internal wear, corrosion, or damage (by a technician if needed).
- Replace worn-out belts, gaskets, or filters.
- Have a technician perform a full operational test if used regularly in industrial environments.
Storage Tips
- If not in use for a long time : Drain all oil and moisture, Cover the pump to protect from dust, Store in a dry, cool place away from corrosive materials, Disconnect from the motor or power source.
