Brand: Generic ( Made in India )
3 ml to 2000 ml Single Head Mustard Oil Filling Machine
SKU: TI-SN-25574
₹9900 (Including GST)
Get extra ₹149 Discount (On Checkout)
Delivery By: May 30 - Jun 1
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

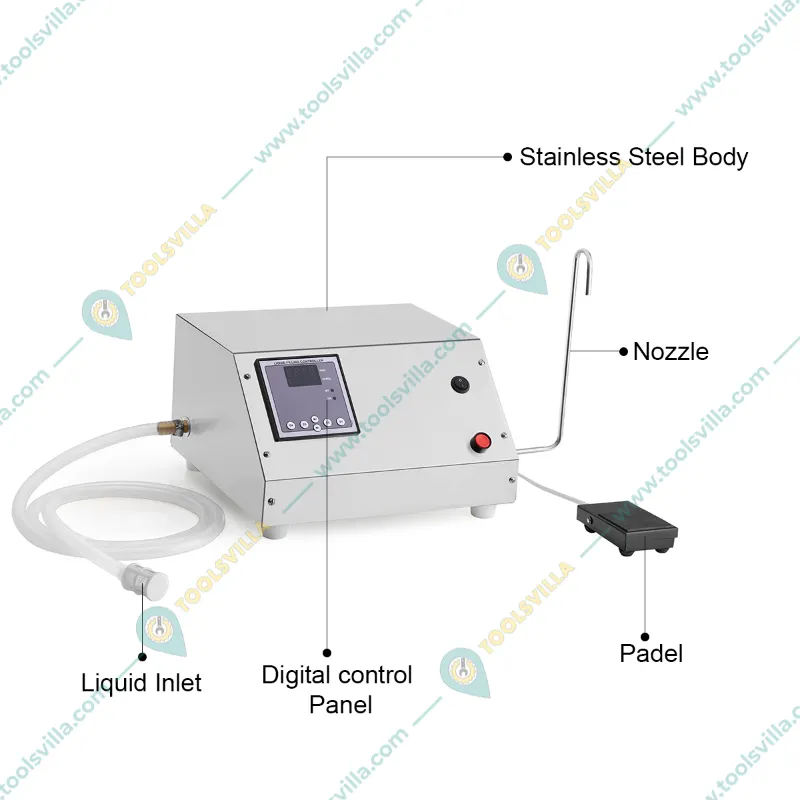

Single Nozzle Digital Liquid Filling Machine
3 to 2000 ml Capacity
Stainless Steel Body
Country of origin: India
Description
This Single Nozzle Table Top Stainless Steel Body Liquid Filling Machine is designed for filling a wide range of free-flowing liquids with a capacity ranging from 3 ml to 2000 ml. The stainless steel construction guarantees durability and compliance with food-grade standards, making it suitable for various applications including food, pharmaceuticals, and chemicals.
Features
:- Filling Range : This machine can accommodate a wide range of filling volumes, specifically from 3 ml to 2000 ml, making it versatile for different product sizes.
- Material Construction : The body of the machine is made from stainless steel, which ensures durability, corrosion resistance, and easy cleaning. This is particularly important in industries where hygiene is paramount.
- Semi-Automatic Operation : The machine operates in a semi-automatic mode, allowing for ease of use while still providing control over the filling process.
- User-Friendly Design : The design includes intuitive controls that make it easy for operators to manage the filling process without extensive training.
Dimensions: Outlet Nozzle: 6mm (Outer Dimension), SS 304 material
Inlet Pipe: 10 mm, Silicon, size, 4ft (121.92cm)
Working Continuation: non-stop 24 hrs
Operation: Gear Pump

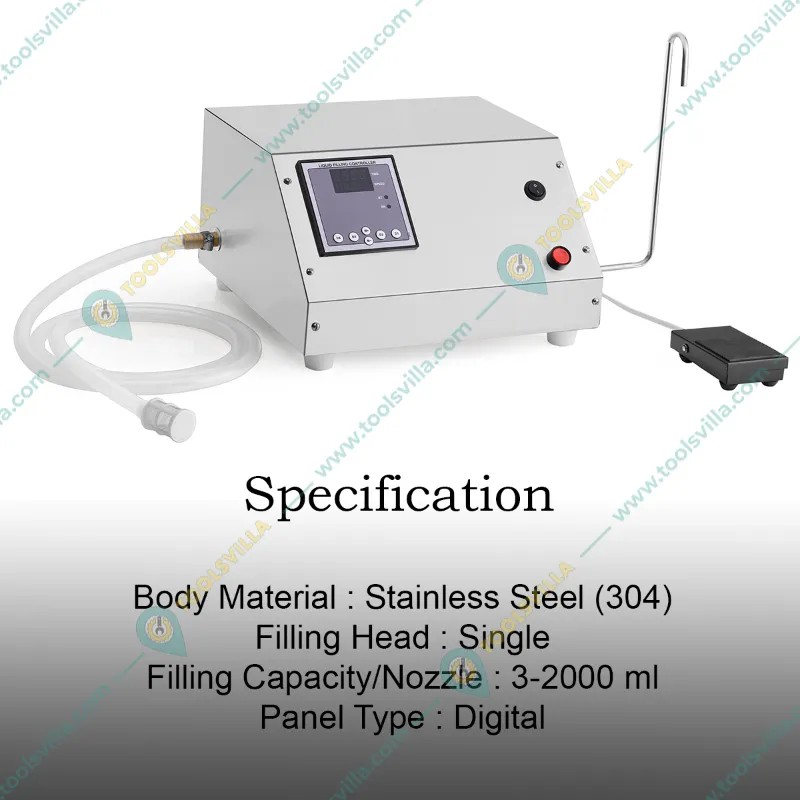

Specification
:- Brand: Generic ( Made in India )
- Weight (Approx.) : 6 kg
- Body Material : Stainless Steel (304)
- Filling Head : Single
- Filling Capacity : 3-2000 ml
- Panel Type : Digital
- Mode of Operations : Automatic & Manual
- Filling Accuracy : +/-2%
- Power : 220V/110V AC
Usage
:1. Setup the Machine :
- Place the machine on a stable, flat surface.
- Ensure that it is connected to a power source and turned on.
2. Prepare the Liquid :
- Ensure that the liquid to be filled is in a suitable container.
- Check for any clogs or blockages in the filling nozzle.
3. Position Containers :
- Place empty containers under the filling nozzle, ensuring they are aligned properly.
4. Start Filling Process :
- Press the padel switch to begin filling.
- Monitor the process through the digital display for accuracy.
5. Stop and Clean :
- Once filling is complete, release the padel switch & turn off the power switch.
- Clean any spills and ensure that all parts of the machine are free from residue before storage.
Maintainence :
- Use approved cleaners to wipe surfaces that contact the product, such as nozzles and tanks, ensuring they are spotless to avoid contamination.
- Any moving parts, including gears, bearings, and pistons, should have a thin coating of food-grade lubricant applied to them.
- Check the nozzles for wear or damage.
- Look for any leaks or strange noises coming from the pump.
- Look for any damage or loose connections in the wiring and connections.

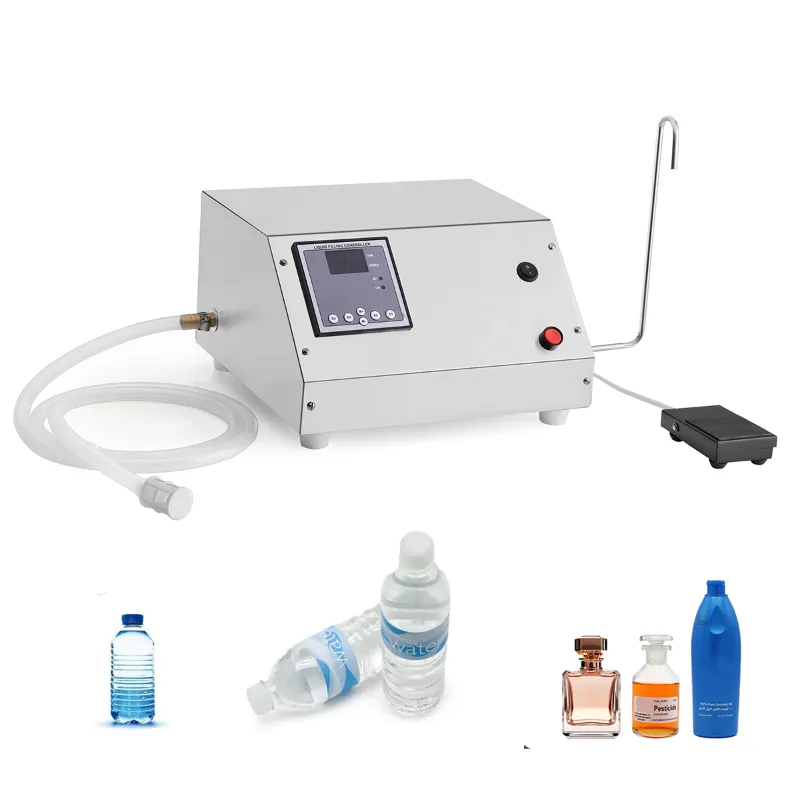

Applications
:- Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 3 ml to 2000 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
- Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
- Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
- Laboratories : Useful for precise filling of liquid samples and solutions.
