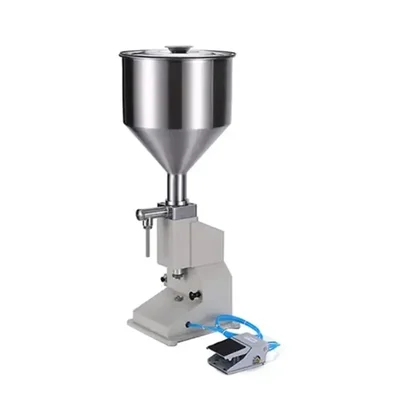

Pneumatic Type 5-50 ml Liquid & Paste Filling Machine - Single Nozzle
5.0 star
SKU: RD-BR-20221046
₹21299 (Including GST)
Get extra ₹319 Discount (On Checkout)
Delivery By: Feb 14 - Feb 16
Qty:
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description
Paste & Liquid Filling Machine
5-50ml filling volume
600 to 900 Bottles/ Hrs
Country of origin: China
Description
This machine is a semi-automatic piston-type liquid filling machine with molecular fast flowing inbuilt technology. This machine is reasonable in design , small, and exquisite in the model. The piston and hopper of the cylinder are made up of 304 stainless steel and (PTEF). Both filling volume and filling speed can be adjusted at will, filling accuracy is high. The filling head adopts an anti-leakage technology.
Features
:
Suitable for liquid or paste filling
Small model easy to handle
High accuracy
Filling volume and filling speed can adjust
Specification
:
Product Type: Paste Filler
Brand: Generic (Imported)
Weight (Approx.) : 10.5 kg
Automation Grade : Semi-Automatic
Power source : 220V/110V
Phase : Single
Frequency : 50Hz
Filling Head : Single Nozzle
Filling Volume : 5-50 ml (adjustable)
Nozzle Dia : 5 mm with molecular fast flowing inbuilt technology
Filling Material : Liquid / Paste
Speed : 20-60 times/minute
Efficiency : 600 to 900 Bottles/Hr
Filling accuracy : ±0.2-1 ml
Hopper volume : 10 L
Hopper Body : Stainless Steel
Height range : 7.87"/200 mm
Working pressure : 0.4-0.6 MPa or 58-87PSI
Note :
Air compressor is needed to run this machine as it is based on Piston suction technology.
This machine is not suitable for Grease filling.
Usage
:
1. Setup the Machine :
Place the machine on a stable, flat surface.
Connect the pneumatic filling machine to an air compressor with appropriate pressure settings.
2. Prepare the Product :
Ensure that the liquid or paste to be filled is properly mixed and at the correct viscosity for filling.
Fill the hopper of the machine with the product.
3. Adjust Settings :
Set the desired fill volume using the adjustable knob.
Adjust the speed of filling.
4. Testing :
Conduct a test fill by activating the machine to ensure that it dispenses the correct volume.
Make any necessary adjustments based on test results.
5. Filling Process :
Position containers under the nozzle.
Activate the filling mechanism usually a foot pedal to start dispensing.
Monitor for consistent filling and adjust as needed.
Maintenance :
Regular Cleaning : Ensure that all parts in contact with the liquid or paste are cleaned after each use to prevent contamination and buildup. Use food-grade cleaning agents suitable for stainless steel.
Storage : When not in use, store the machine in a dry environment to prevent rusting or corrosion of metal components.
Applications
:
Cosmetic Filling : The machine can handle a range of cosmetic products, including creams, lotions, and essential oils. Its adjustable nozzles allow for filling different viscosities effectively.
Beverage Industry : The machine is also applicable in filling beverages like juices or flavored drinks that require careful handling to avoid spills.
Food and Beverage Industry : Filling jars, bottles, and containers with sauces, dips, jams, and fillings. Dispensing frosting and icing on cakes and pastries. Filling chocolate molds and truffles. Applying glue or adhesive to food packaging
Pharmaceutical and Cosmetic Industry : Filling containers with liquid prescriptions. Applying gels, lotions, and ointments. Applying mascara and lipstick in the cosmetics industry. Popping needles or other injectables into vials and ampoules
