Brand: Generic (Imported)

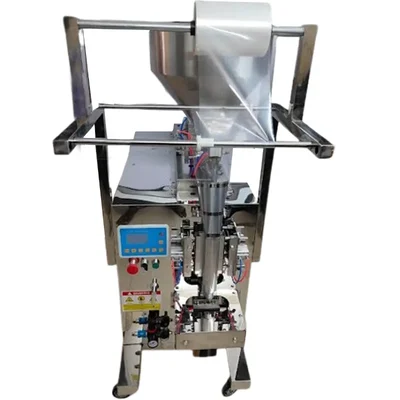

Automatic 10 ml to 200 ml Paste Filling and Sealing Machine with Three Side Sealing(Side Seal)
SKU: TI-A1-53170
Delivery By: Jan 21 - Jan 23
MRP : ₹275900 ₹187911
32% OFF!
Delivery By: Jan 21 - Jan 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹187911 (Including GST)
MRP : ₹275900
32% OFF!
Get Extra ₹2,819 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Automatic Filling and Sealing Machine
With Three Side Sealing(Side Seal)
Pouch Capacity 10 ml to 200 ml Paste
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Weight (Approx.) : 170 kg
- Sealing Type : Side Seal
- Pouch Capacity : 10ml - 200 ml
- Voltage : 110 V or 220 V
- Power : 900 Watt
- Bag Size : 0 - 80 mm (W), 0-50 mm (L)
- Film Thickness : 0.5 mm - 0.8 mm
- Precision : 1 ml
- Product Dimension : 540 x 1170 x 1303 mm ( 54 x 11.7 x 13.03 cm )
Description
An Automatic 10 ml to 200 ml Paste Filling and Sealing Machine is a robust, vertical form-fill-seal (VFFS) system designed for the high-speed packaging of viscous and semi-viscous products. This machine automates the entire process: it pulls laminate film from a roll, forms it into a tube, seals the bottom and sides to create a pouch, injects a precise volume of paste via a piston pump, and finally seals the top before cutting. The Three-Side Seal (side seal) configuration is highly popular for its structural strength and classic sachet appearance, making it a staple in the food, cosmetic, and chemical industries.
Features
:- Three-Side Sealing System: Uses independent horizontal and vertical heating bars to create a strong, leak-proof "U-shape" seal on three edges of the sachet.
- Stainless Steel Construction: All contact parts are manufactured from SS304 or SS316 grade stainless steel, ensuring hygiene and resistance to acidic or corrosive pastes.
- Automatic Film Tracking: Equipped with a tension control system and forming collar that keeps the film centered, reducing material waste and ensuring straight seals.
- Variable Speed Control: Driven by a frequency inverter, allowing the operator to synchronize the filling speed with the viscosity of the product and the cooling time of the seal.
- Precision Piston Dosing: Utilizes a high-accuracy volumetric piston pump specifically designed to handle thick pastes, ensuring consistent weight for every 10 ml to 200 ml fill.
Applications
:- Food Industry: Packaging of tomato ketchup, chili paste, honey, chocolate sauce, and fruit jams.
- Pharmaceuticals: Filling of medicinal gels, ointments, and oral liquid pastes.
- Cosmetics: Ideal for individual sachets of hair conditioner, face cream, lotions, and sunscreens.
- Personal Care: Packaging for toothpaste samples, hand sanitizer gels, and liquid soaps.
- Chemical Industry: Dispensing of lubricants, grease, and industrial-grade adhesives.
- Agriculture: Single-dose packaging for pesticide gels or liquid fertilizers.
Usage
:- Film Setup: Install the packaging film roll onto the unwinding mandrel and feed it through the guide rollers and the forming collar.
- Product Loading: Fill the hopper with your paste. If the product is very thick, engage the hopper's agitator or heating system (if equipped) to maintain flow.
- Parameter Configuration: Use the HMI screen to set the target volume (e.g., 150 ml), sealing temperatures, and the desired production speed.
- Heating Phase: Wait for the sealing jaws to reach the pre-set temperature; the machine will indicate when it is ready for operation.
- Trial Testing: Run a few manual cycles to check the seal integrity and weight accuracy before switching to fully automatic mode.
- Continuous Production: Monitor the machine as it automatically forms, fills, seals, and cuts the sachets into the collection bin.
