All Star Tig 315 AC/DC Green Color GTAW Welding Machine
Input Power 13.8 KVA
15 - 315 Output Range
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Allstar

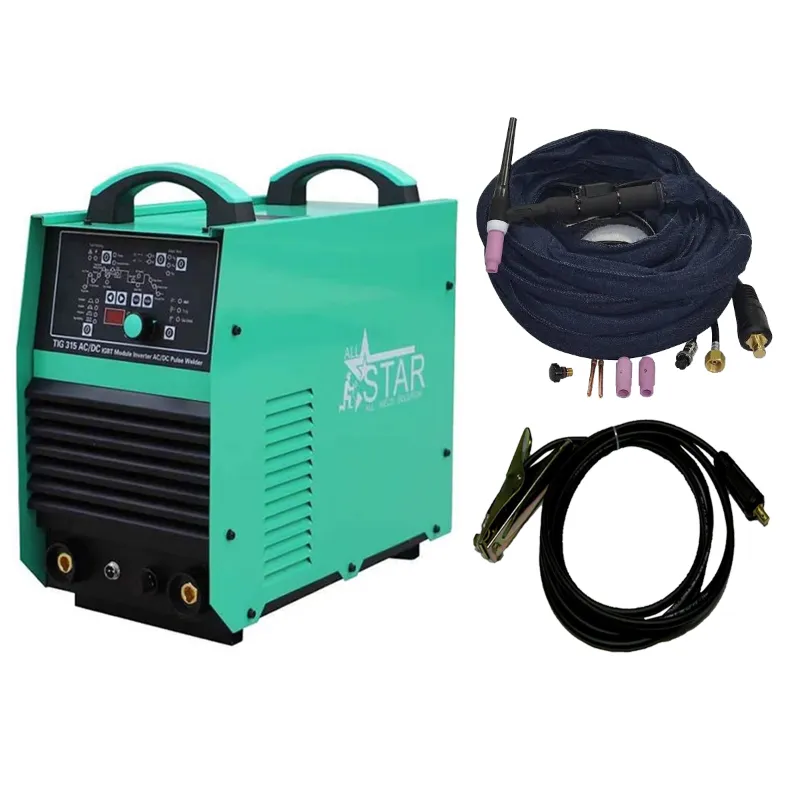

All Star TIG 315 AC/DC Green Color GTAW Welding Machine With IGBT Inverter Technology
SKU : TI-AS-11861
MRP : ₹167998
₹119999
29% OFF!
-
1
+
903 people have viewed this recently
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
Description
A non-consumable tungsten electrode is used in the TIG (Tungsten Inert Gas) welding method to create the weld. To prevent ambient contamination of the weld region, an inert gas, usually argon, is used in the process. With a maximum output current of 300 amps, a 300 A TIG welding machine can be used for a variety of welding tasks, especially those involving thin materials and precision work.
Features :
- IGBT Inverter Technology.
- HF ARC Ignition
- AC Waveforms Square / Sine / Triangular
- Digital Ampere Meter
- Stepless Current Control
- Pre & Post Gas Flow Function
- Up & Down Slope Function
- Initial & Crater Current Selection
- Pulse Frequency Selection
- 2T / 4T Function
- AC Frequency Adjustment
- Compatible to Generator Supply
- IP21S Compliance
- Water Cooling Unit - Optional
Specifications :
- Model : TIG 315
- Input Power Supply : 400 V ±15%, 50/60 Hz
- Required Phase : 3 Phase
- Input Power : 13.8 KVA
- Output Range : 15-315
- Rated output : A315 A
- Duty Cycle : 60 %
- OCV (Open Circuit Voltage) : 75 V
- Suitable Electrode Holder : Tungsten Electrode Rod Upto 4 mm
Applications :
- Aerospace, Scaffolding, Ladders, Milk Can, Aluminum Fabrication, Bus Body.
Accessories :
- 3 m Earthing Cable with Clamp
- 4 m Air Cooled TIG Torch.
Note :
- Do not use the welder for work other than welding.
- Do not touch the live part.
- Do not solder in places where skimming, cleaning and spraying are required.
- When using, please wear a protective cover or protective clothing.
