Brand : HPM

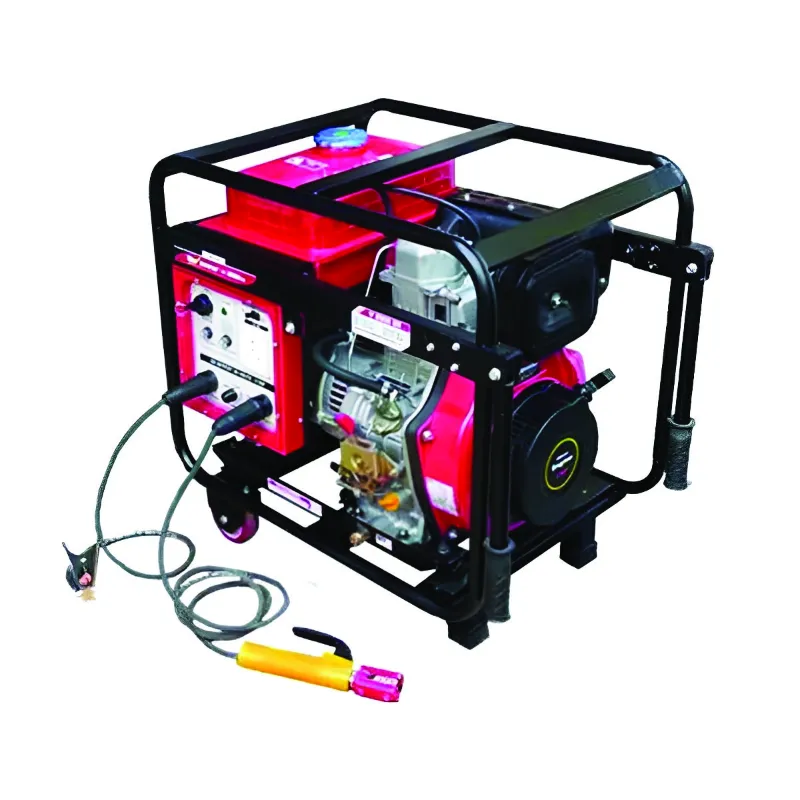

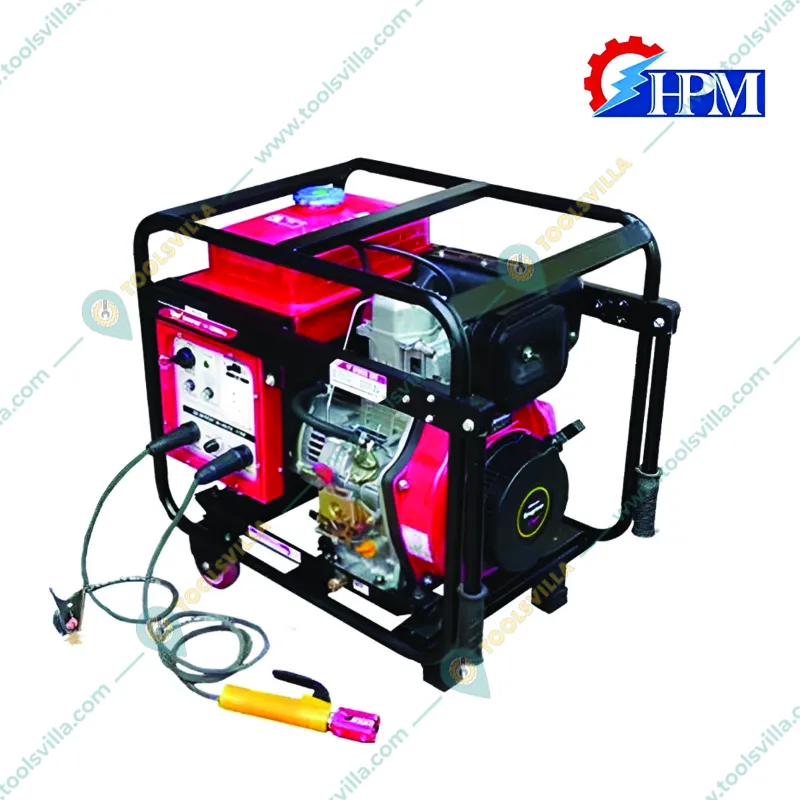

HPM 5 KVA Recoil and Self Start Portable Diesel Run DC Welder Generator with Battery
SKU : SG-DC-2033
MRP : ₹220000
₹208000
5% OFF!
-
1
+
Get Extra ₹3,120 OFF on Prepaid Orders
Delivery By: Jul 10 - Jul 12
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HPM 275 Amp DC Welder Cum Generator With Battery
Recoil and Self Start
Diesel Run
5 KVA Max. Ac Output
Country of origin: India
Specification
Description
HPM 5 KVA Recoil and Self Start Portable Diesel Run DC Welder Generator with Battery

Description :
  • HPM-powered High Power Diesel Portable Arc Welder Generator Machine. This welding generator is appropriate for all general structural welding applications, including light, medium, and heavy welding jobs up to 5 mm electrode. AC 230 volts, 50 hertz, 5 KVA built-in for AC appliances. Diesel engines have low operating costs.

Specifications:
  • Model No. : GE-W 8000D
  • Product Type : Welder Cum Generator
  • Brand : HPM
  • Battery Capacity : 12 Volt, 35 Ah
  • Dimension LxWxH : 710 x 500 x 600 mm
  • Weight : 125 Kg (Approx.)

AC Generator :
  • Type : Brush less with Rear Earth Magnet Rotor.
  • AC. Voltage On Eco Mode : 220 Volts ± 10 Volts, Single Phase
  • AC. Voltage On Power Mode (No Load) : 250 Volts (No Load) ± 10 Volts, Single Phase
  • Rated Current : 20.5 Amps.
  • NFB : 21 Amps.
  • Rated Power : 4500VA
  • Peak Power : 5000 VA
  • Frequency : 50 to 60 Hz.

DC Welding :
  • Maximum Output (Duty Cycle 60%) : 275 Amp, 9kW
  • Working Voltage : 20v to 35v
  • Open Circuit Voltage : 70 Volt (Maximum)
  • Current Regulation Amps : 40-275 Amps
  • Rectifying Mode : SCR, Phase Controlled 3phase, Rectifying Bridge
  • Maximum Electrode Diameter: 2.6 mm to 5.0 mm

Engine :
  • Engine Model: HM192F
  • Engine Type: 4Stroke, OHV, Vertical, Single cylinder, direct injection.
  • Maximum Power : 14HP
  • Bore x Stroke : 92X72 mm
  • Displacement: 499cc
  • Starting System: Recoil Start & Self Start
  • Fuel: Standard Diesel
  • Fuel Tank Capacity: 13 Liters
  • Fuel Consumption .: 1.3 Ltr./hr.
  • Continuous Operating Hour : 10. hr.
  • Lube. Oil Capacity : 1650 ml.
  • Lubricating Oil Consumption : 4.3 gm./Hr.

Accessories:
  • AC Plug : 1 Pc
  • Tool Kit : 1 set
  • Welder Holder With Cable : 1 set
  • Earthing Clamp With Cable : 1 set
  • Oil Funnel : 1 No
  • Owner’s Manual : 1 No
  • Battery Terminal : 1 Set
  • Battery Tray & Holding Set : 1 Set

Optional Accessories :
  • Sheet Metal Welding Attachment (Helps to adjust low current up to 40 Amps.) : 1 Kit (Additional Cost)
  • Coster Wheels : Optional (Wheels & Handle Sets) @ (Additional Cost)

Panel And Other Standard Features :
  • A.C. Circuit Protector : Yes
  • Engine Oil Protection : Electronic Oil Alert & Indicator
  • Low Fuel Protection : Yes
  • A.C. Pilot Lamp : Yes
  • Fuel Level Gauge : Yes
  • A.C. Output Sockets : 1 Nos.
