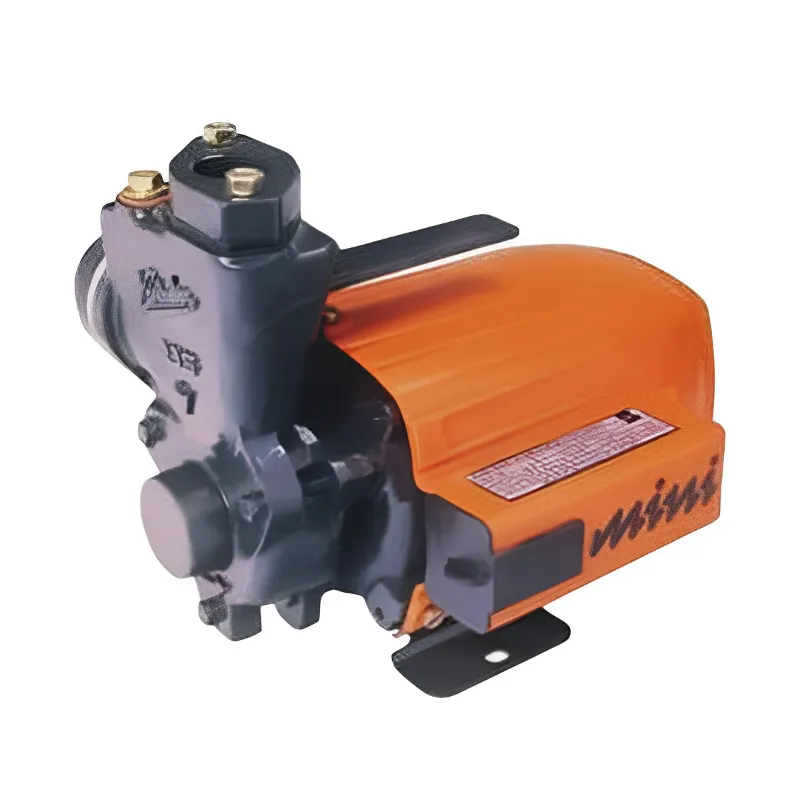

Kirloskar Mini Terminator 1 HP Single Phase Monoblock Pump
33 - 10 LPMDischarge Range, 20 to 131 Feet (6 to 40 meters) head
1 Year Warranty
Description
Kirloskar Mini Terminator - 1HP Monoblock Pump (1 Year Warranty)
Description :
These are single phase, end suction monoblock with portability. These are noiseless pumps and available in stainless steel. These pumps have delivery size 25 mm. These are used in apartments, villas, booster service, hospitals and hotels.
Features :
Can withstand wide voltage fluctuations, from 180 to 240 volts.
Thermal Overload Protector (TOP) prevents the motor from burning out.
Stainless steel shaft avoids rusting problems.
Locked impeller results in consistent performance.
High-quality aluminium extruded motor body.
TEFC capacitor starts and runs the motor, with IP- 44 protection and class 'B' insulation.
Double shielded ball bearing - no need for external lubrication.
Capacitor inside terminal box.
Specification :
Model No. : Mini Terminator
Product Type : Monoblock Pump
Power : 220 V AC Supply
Motor Power : 1HP (0.75 kW)
Current : 4.5 Amps
Electricity Connection : Single Phase
Head Range : 20 to 131 Feet (6 to 40 meters)
Suction x Delivery Size : 25 x 25 mm
Max. Flow Rate : 33 - 10 LPM
Weight : 10 Kg (Approx.)
Materials of Construction :
Impeller : Forged Brass
Delivery Casing : Cast Iron
Motor Body : Cast Iron
Fan Cover : Plastic
Mounting Casing : Cast Iron
Shaft : Carbon Steel (Chrome Plated)
Warranty :
1 year warranty on manufacturing defects.
Applications :
Water supply for bungalows, apartments, hotels, hospitals, farmhouses etc.
Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering gardens
